Kubota LX2620HSDC J28500 HYDRAULIC LOADER PIPE Parts Diagram

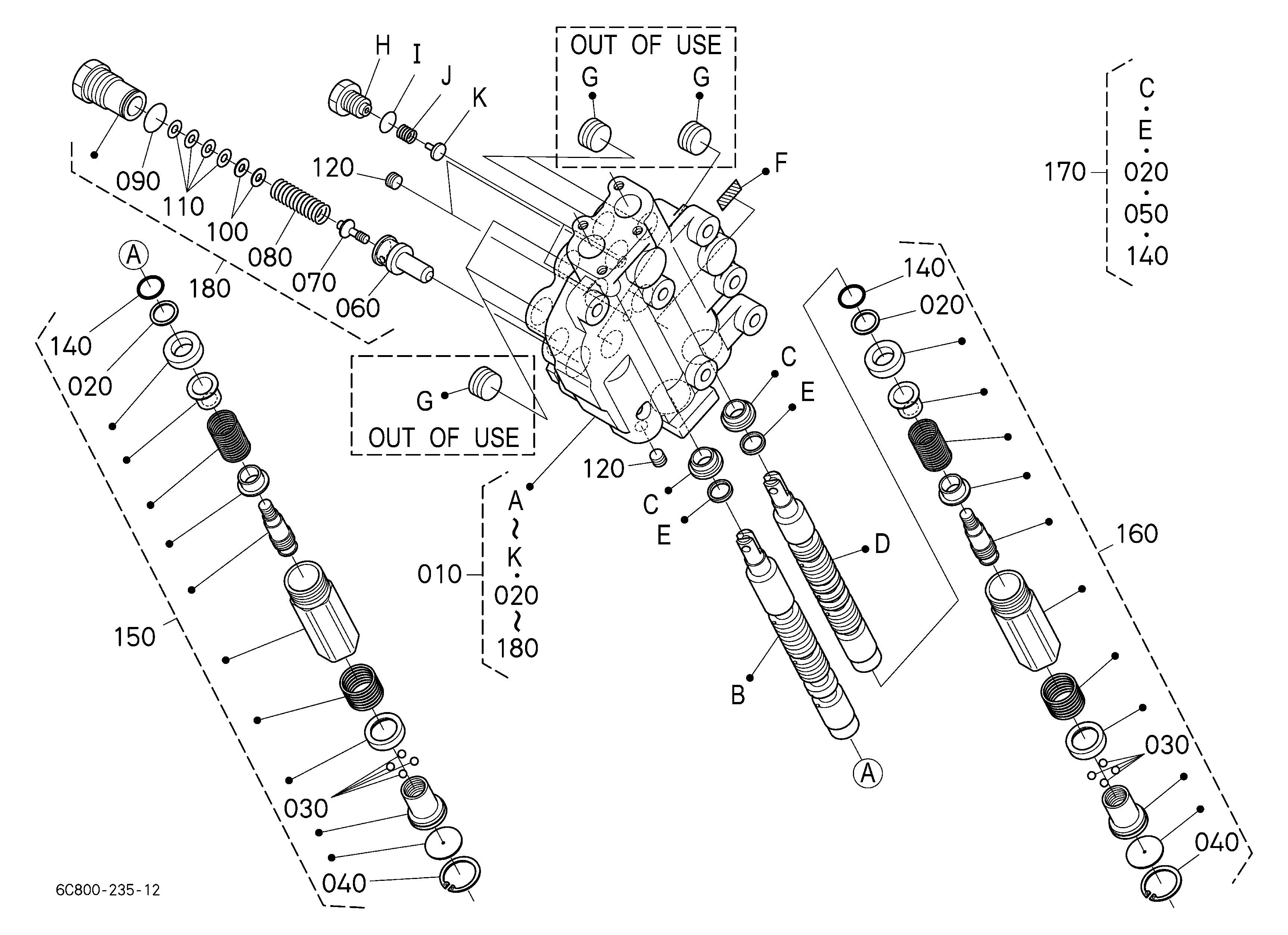

Exploded-view parts diagram "J28500 HYDRAULIC LOADER PIPE" for the Kubota LX2620HSDC. 21 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIPE (LV) 6C430-39412 | 1 | $160.07 | |||
| 020 | PIPE,LV2 6C430-39420 | 1 | $156.50 | |||
| 030 | PIPE(LV) 6C430-39432 6C430-39433 | 1 | $142.95 | |||
| 040 | PIPE,LV4 6C430-39440 | 1 | $163.79 | |||
| 050 | CLAMP 3F740-63200 | 1 | $2.54 | |||
| 060 | BRACKET,LOADER P 6C430-39460 | 1 | $48.63 | |||
| 070 | Bolt - Equipment Fastener 01130-51025 01133-51025 | 1 | $2.36 | |||
| 080 | Nut Fastener 02173-50160 02174-50160 | 1 | $2.26 | |||
| 090 | BOLT, JOINT 75538-61320 | 1 | $13.84 | |||
| 100 | O-Ring Seal 04810-00210 04817-00210 | 1 | $3.37 | |||
| 110 | O-Ring Seal 04811-00160 04816-00160 | 1 | $2.01 | |||
| 120 | 1/4 Male Hydraulic Coupler H2-62 K2581-66220 | 1 | $16.78 | |||
| 130 | CAP, BLUE 6C300-39510 6C300-39512 | 1 | $7.75 | |||
| 140 | CAP, YELLOW 6C300-39520 6C300-39522 | 1 | $7.75 | |||
| 150 | CAP, RED 6C300-39530 6C300-39532 | 1 | $7.75 | |||
| 160 | CAP, WHITE 6C300-39540 6C300-39542 | 1 | $7.75 | |||
| 170 | PLUG PP501-75540 | 1 | $21.23 | |||
| 180 | O-RING 68011-62220 | 1 | $4.08 | |||
| 190 | JOINT, PIPE(ST/- 69191-63290 | 1 | $42.63 | |||
| 200 | HOSE,OIL DRAIN 6C430-39490 | 1 | $28.82 | |||
| 210 | CLAMP, HOSE 6C050-58750 | 1 | $9.12 | |||
Showing 1 to 21 of 21 parts
