Kubota B2320DT J28002 LOADER VALVE Parts Diagram

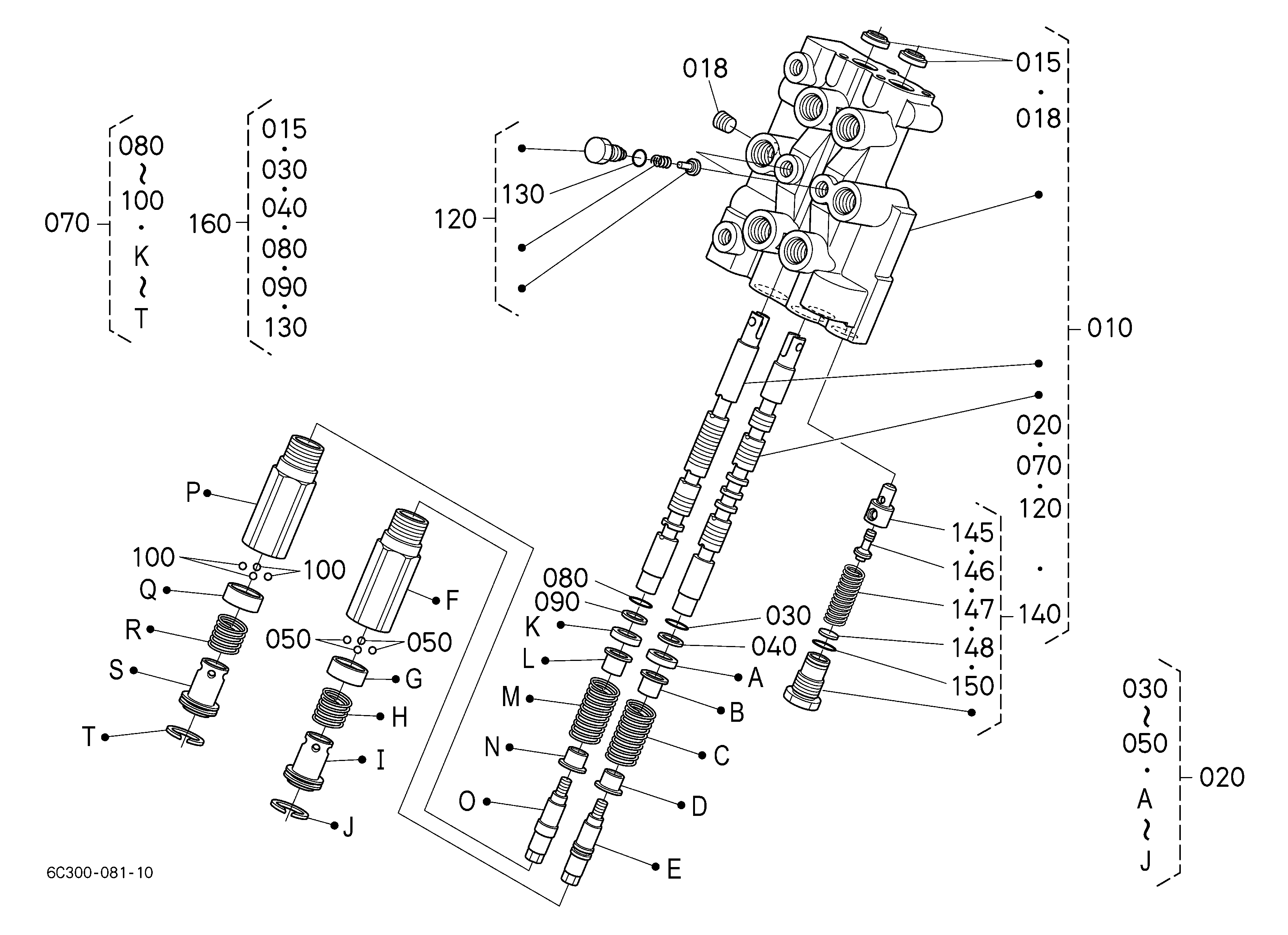

Exploded-view parts diagram "J28002 LOADER VALVE" for the Kubota B2320DT. 11 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BASE, LOADER VAL 6C300-38113 | 1 | $63.62 | |||
| 010 | BASE,LOADER VALVE 6C300-38114 | 1 | $59.07 | |||
| 020 | BOLT 01120-51025 01123-51025 | 1 | $1.68 | |||
| 030 | ASSY VALVE, CONT YW544-00100 YW544-00102 | 1 | $1,511.96 | |||
| 040 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 060 | STAY, LOADER LEV 6C300-38126 | 1 | $68.93 | |||
| 070 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 080 | ASSY BRACKET, LE 6C300-38195 6C300-38197 | 1 | $136.30 | |||
| 090 | BUSH 36280-44230 08511-01620 | 1 | $6.60 | |||
| 100 | BUSH 08511-01212 | 1 | $5.63 | |||
| 110 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
Showing 1 to 11 of 11 parts
