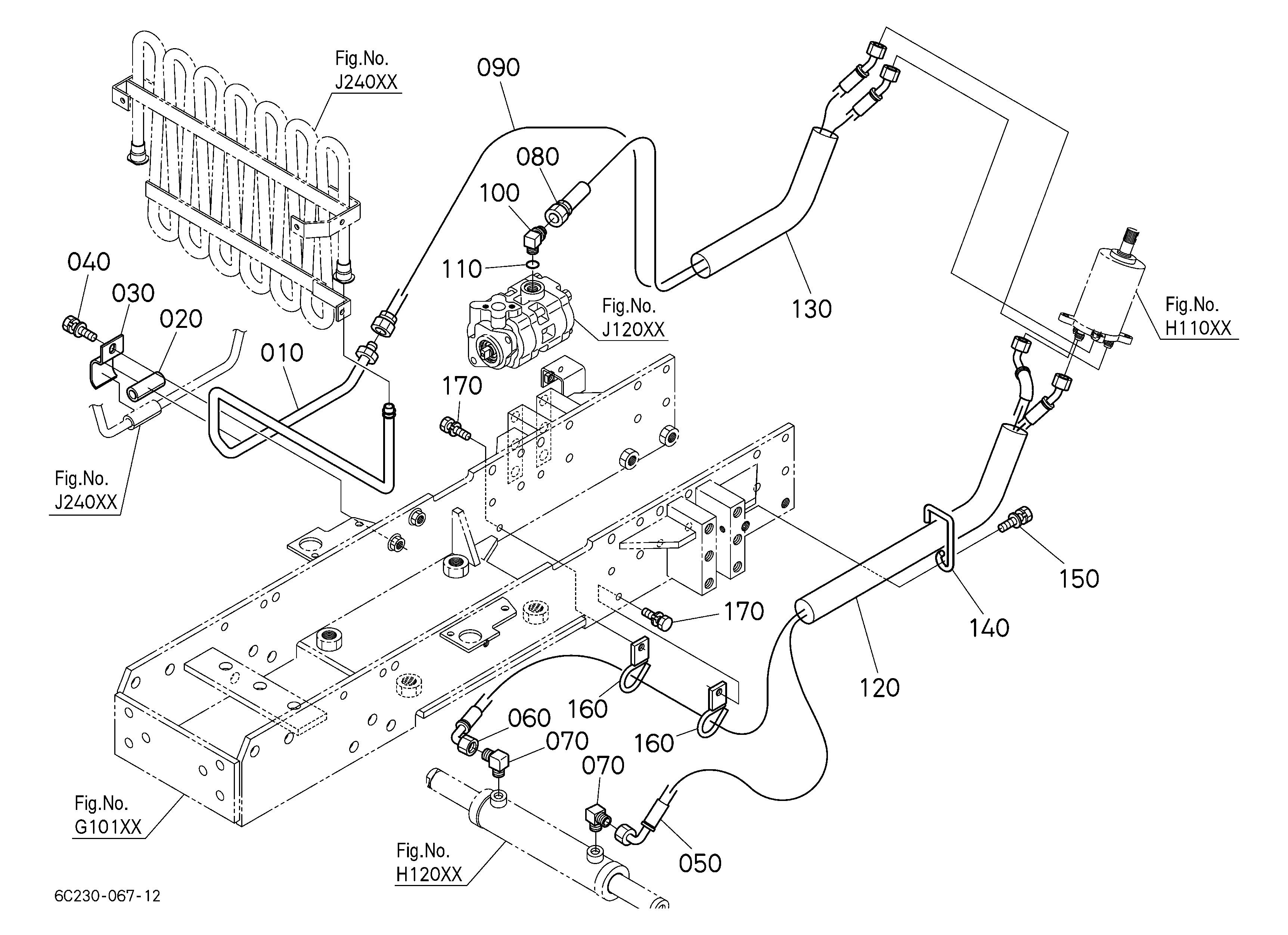

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIPE, OIL COOLER 6C230-39613 | 1 | $263.65 | |||
| 020 | Bolt 01123-50816 | 1 | $0.80 | |||
| 030 | O-Ring Seal 04811-00120 04816-00120 | 1 | $1.93 | |||
| 040 | SPRING,FLAT(OIL COOL 6A710-39660 6C410-39660 | 1 | $8.74 | |||
| 045 | PLATE LH 6C230-58670 6C230-58672 | 1 | $91.64 | |||
| 047 | BOLT 01021-50612 01025-50612 | 1 | $0.99 | |||
| 050 | PIPE (OC-IPV, CA 6C230-39622 | 1 | $130.60 | |||
| 070 | BOLT 6A710-39670 6A710-39672 | 1 | $2.54 | |||
| 090 | PIPE, CUSHION 6C140-39250 | 1 | $5.90 | |||
| 100 | PIPE (IPV-OF) 6C200-39630 | 1 | $46.05 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-J30102-93516 J30102 HYDRAULIC CYLINDER
View Diagram -
DIAG-J21500-93516 J21500 HYDRAULIC OIL LINE (STEERING)
View Diagram -
DIAG-J31000-93516 J31000 HYDRAULIC PISTON/LIFT ARM
View Diagram
