Kubota RTV-X1120DR J22000 HYDRAULIC OIL LINE (PUMP) Parts Diagram

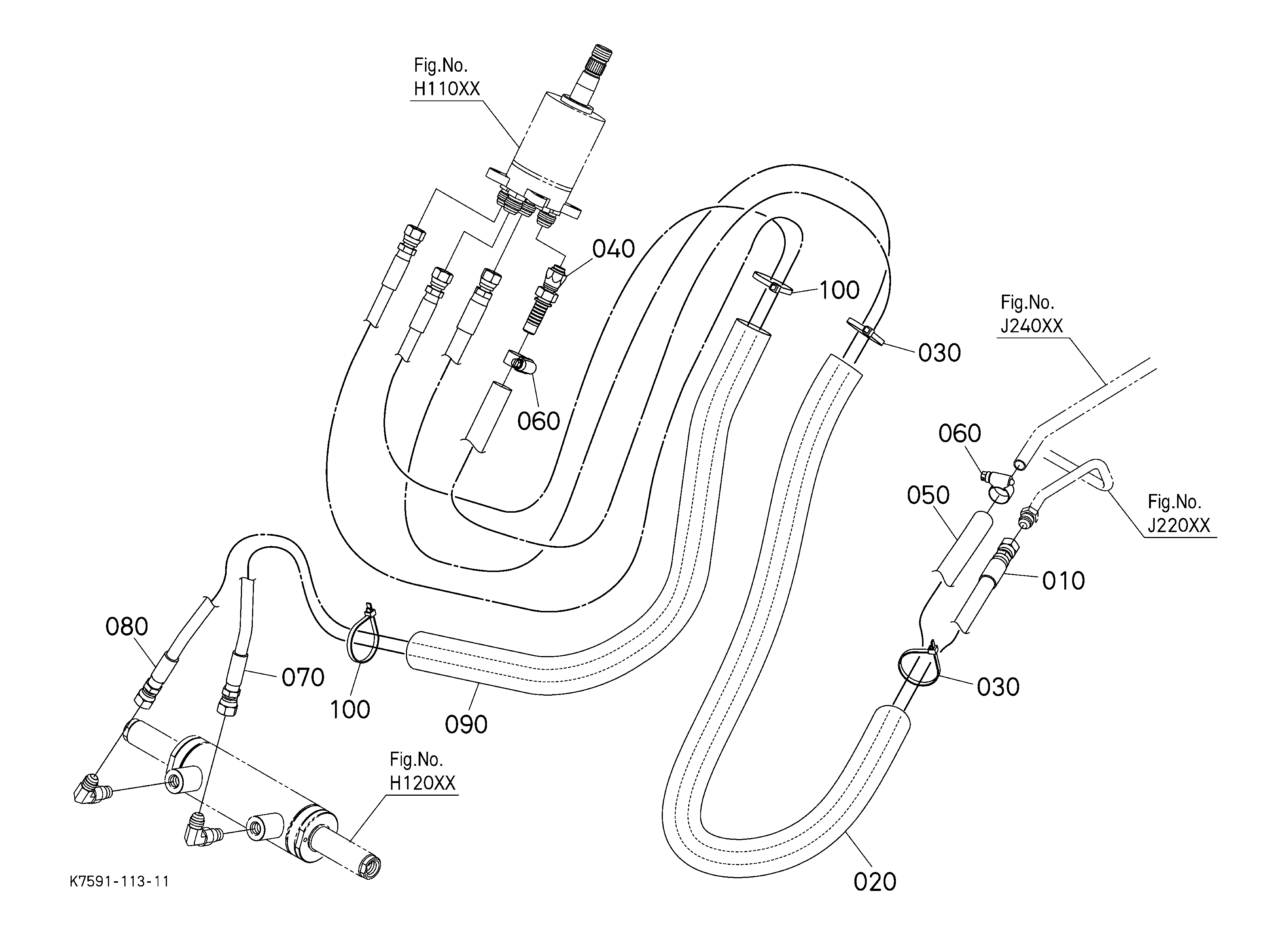

Exploded-view parts diagram "J22000 HYDRAULIC OIL LINE (PUMP)" for the Kubota RTV-X1120DR and Kubota RTV-X1120DW. 13 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CONNECTOR K2561-36630 | 1 | $7.84 | |||
| 020 | HOSE,HYDRAULIC(P K7731-34250 | 1 | $49.26 | |||
| 030 | TUBE(PUMP,CV) K7731-34260 | 1 | $53.28 | |||
| 040 | CUSHION, PIPE K2563-37540 | 1 | $2.09 | |||
| 050 | CONNECTOR, 9/16- K2561-36620 | 1 | $3.76 | |||
| 060 | PIPE(CV,PS,FRONT K7591-37390 | 1 | $57.76 | |||
| 080 | CLAMP(BRAKE HOSE K7591-18590 | 1 | $4.53 | |||
| 100 | CLAMP(TUBE) K7591-37382 | 1 | $5.75 | |||
| 110 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 120 | Nut W2336-06160 K1122-91800 | 1 | $1.93 | |||
| 130 | STAY(PIPE,FRONT) K7591-33650 | 1 | $5.94 | |||
| 140 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 150 | CUSHION(PIPE) K7591-37370 | 1 | $5.36 | |||
Showing 1 to 13 of 13 parts
