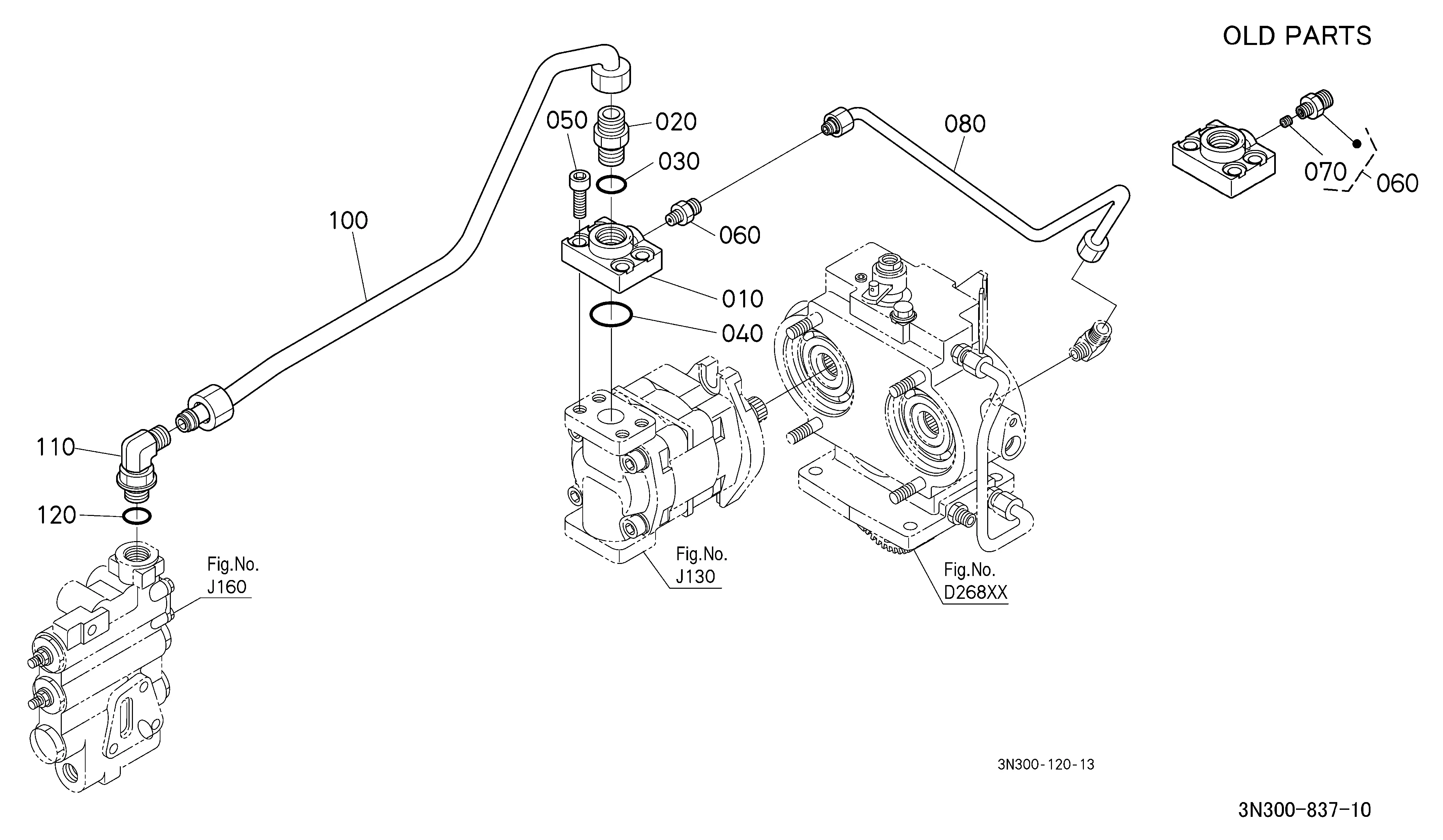

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | JOINT 3A151-82930 3A151-82932 | 1 | $63.69 | |||
| 020 | O-Ring Seal 04811-00180 04816-00180 | 1 | $1.19 | |||
| 030 | PIPE 3N300-82740 | 1 | $94.68 | |||
| 040 | FLANGE 3N300-82780 3N300-82782 | 1 | $94.07 | |||
| 050 | COMP. JOINT 3N300-40650 3P300-40650 | 1 | $33.56 | |||
| 050 | PLUG 33740-27430 YT763-43230 | 1 | $18.66 | |||
| 055 | PIPE 3P200-27650 | 1 | $56.02 | |||
| 060 | JOINT, PIPE 06012-11842 06012-51843 | 1 | $34.87 | |||
| 080 | O RING 04817-00280 | 1 | $2.50 | |||
| 090 | BOLT 01315-11030 | 1 | $3.16 | |||
| 100 | STAY, PIPE 3N300-82750 | 1 | $11.66 | |||
| 110 | Bolt 01774-51016 | 1 | $3.14 | |||
| 110 | Flange Bolt 01774-61020 01774-71020 | 1 | $1.86 | |||
| 120 | CLAMP T1060-33260 | 1 | $13.54 | |||
| 130 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 140 | RUBBER 3F740-82720 | 1 | $7.92 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-J21001-85634 J21001 HYDRAULIC PIPE (SUCTION)
View Diagram -
DIAG-J23501-85634 J23501 HYDRAULIC OIL LINE [PREVIOUS CAB TYPE]
View Diagram -

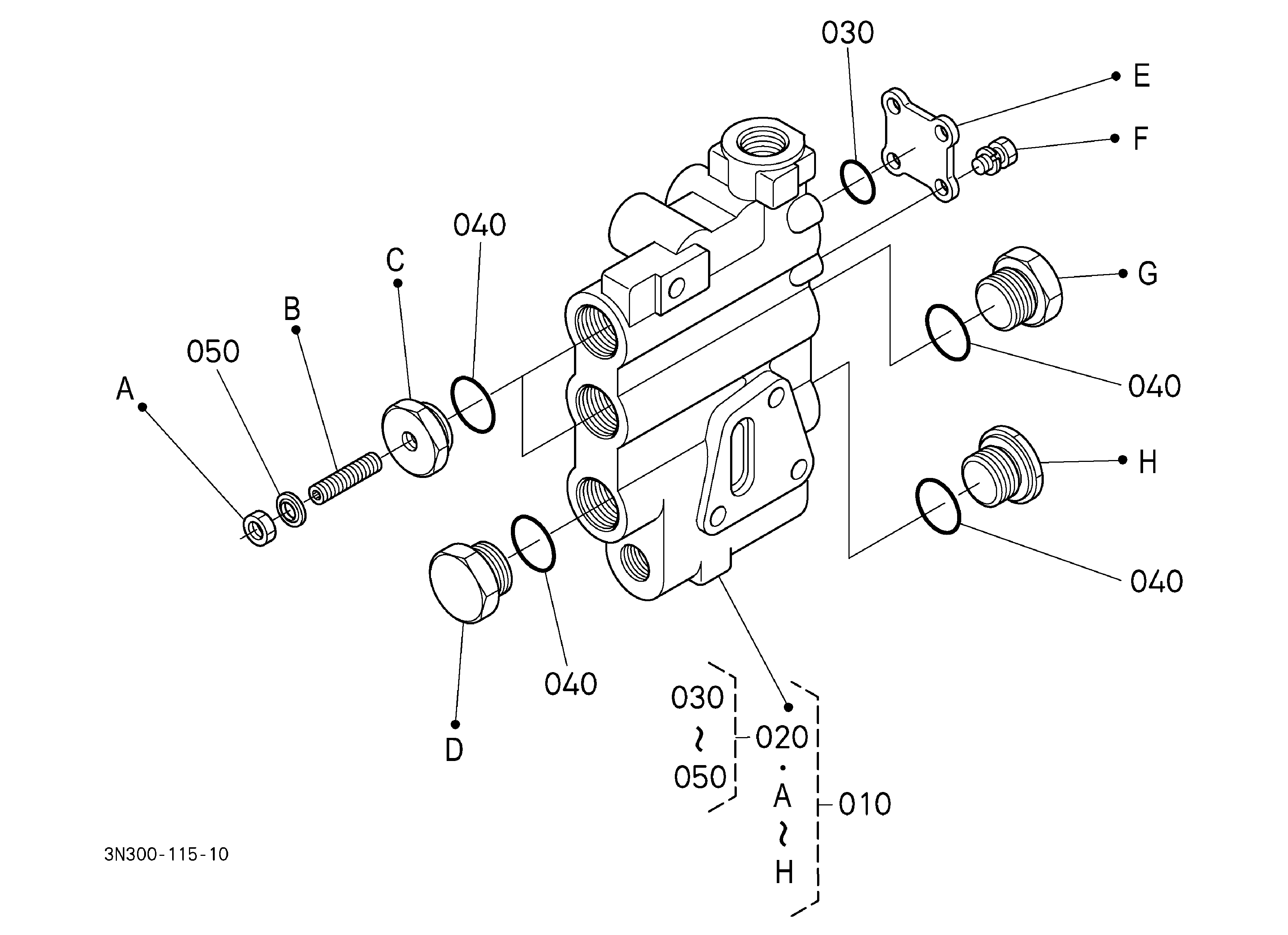

DIAG-J16500-85634 J16500 REGULATER VALVE [COMPONENT PARTS]
View Diagram
