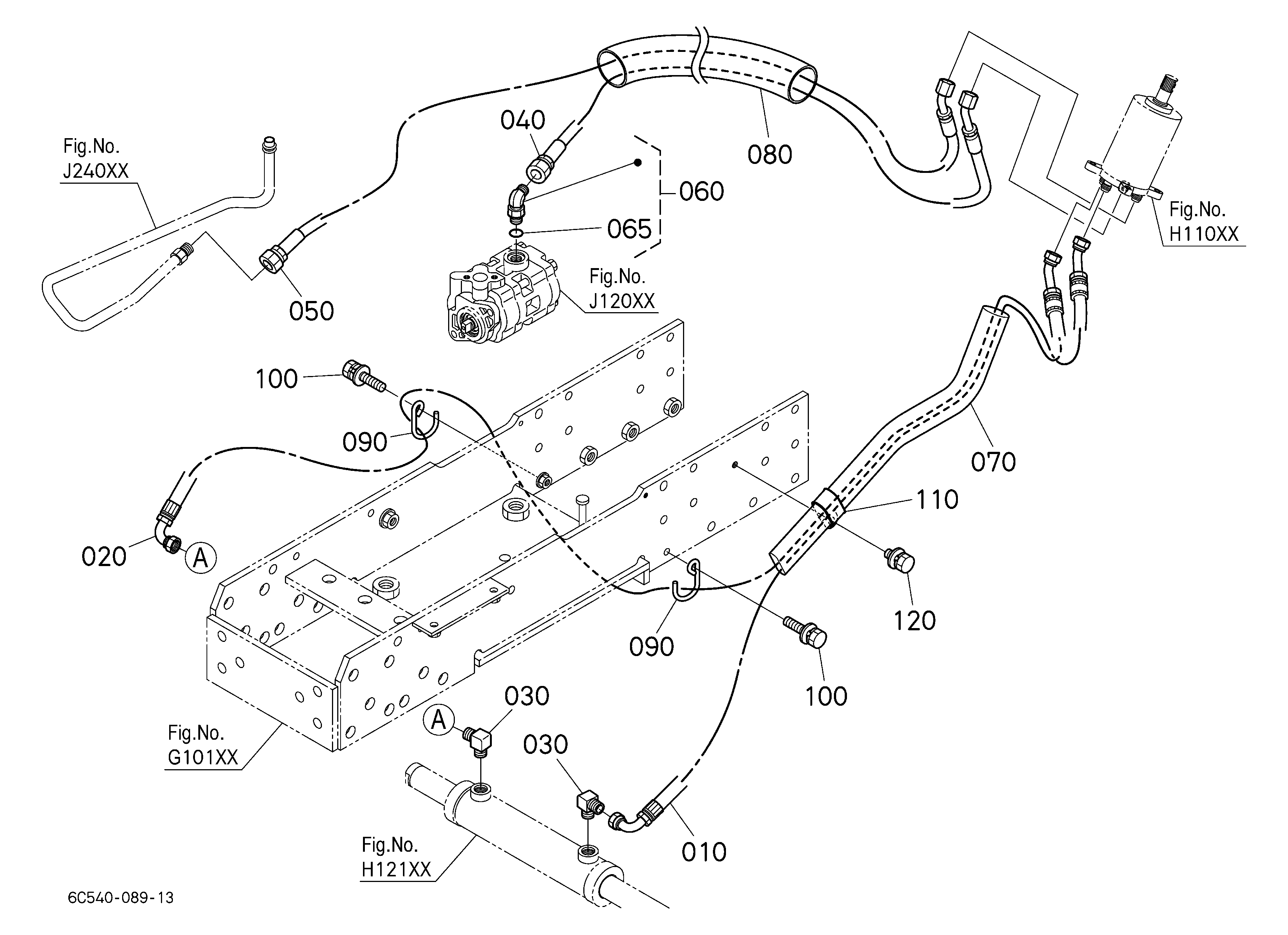

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIPE(DELIVERY,GP 6C540-39210 6C540-39212 | 1 | $144.77 | |||
| 020 | Hydraulic Oil Line O-Ring Seal 04815-00200 04817-00200 | 1 | $1.51 | |||
| 030 | Bolt 01023-50835 01123-50835 | 1 | $1.57 | |||
| 040 | CLAMP (18-38) 67955-36230 | 1 | $9.28 | |||
| 050 | CLAMP 66591-57150 66704-58250 | 1 | $9.67 | |||
| 060 | BOLT, JOINT 75538-61320 | 1 | $8.26 | |||
| 070 | O-Ring Seal 04810-00210 04817-00210 | 1 | $26.84 | |||
| 080 | O-Ring Seal 04811-00160 04816-00160 | 1 | $2.01 | |||
| 090 | PIPE DELIVERY, L 6C410-39232 | 1 | $116.40 | |||
| 130 | BOLT, JOINT 6A320-39292 6A320-39294 | 1 | $14.27 | |||
| 140 | Hydraulic Oil Line Gasket 67111-37180 | 1 | $2.50 | |||
Showing 1 to 11 of 11 parts
Related Assemblies
-
DIAG-J20100-194146 J20100 HYDRAULIC PIPE (SUCTION)
View Diagram -
DIAG-J21500-194146 J21500 HYDRAULIC OIL LINE (STEERING)
View Diagram -

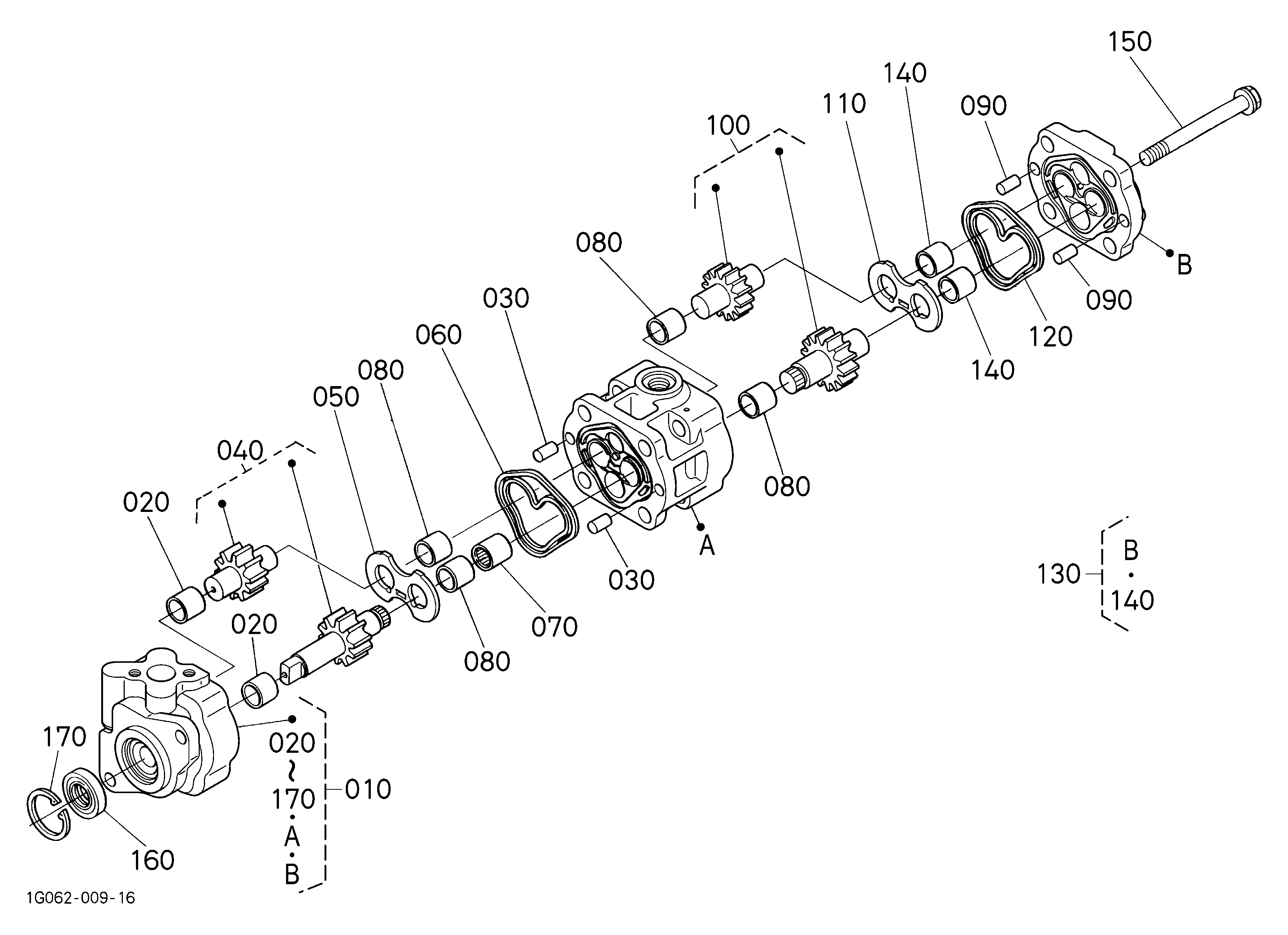

DIAG-J12500-194146 J12500 HYDRAULIC PUMP [COMPONENT PARTS]
View Diagram
