Scroll to zoom Click a part # to view details

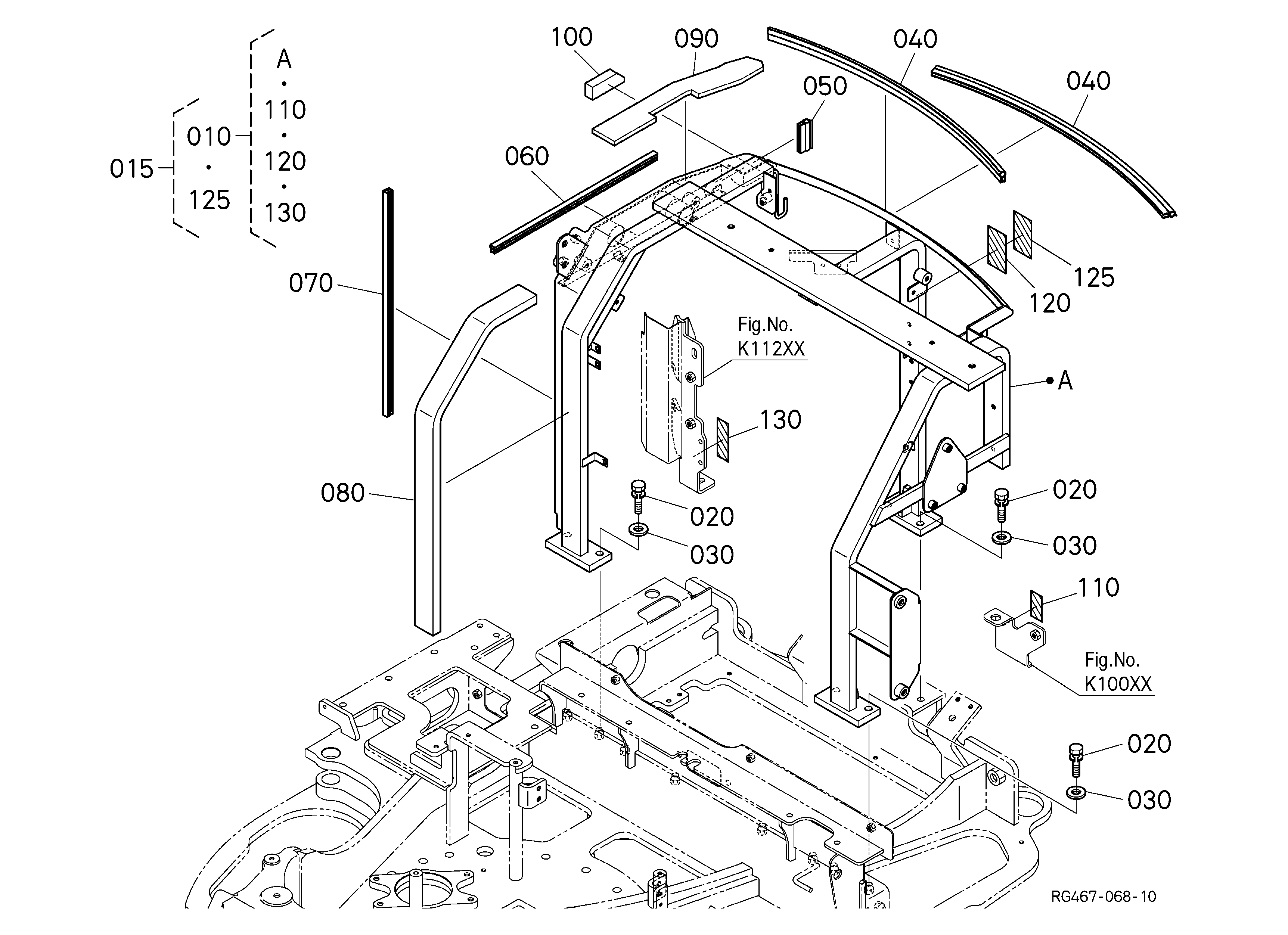

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SUPPORT(SEAT,TPS RG467-38120 | 1 | $1,449.25 | |||
| 020 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 030 | CUSHION 38240-29870 | 1 | $1.69 | |||
| 040 | COVER(SEAT SUPP,CNP, RG467-93370 RG467-93373 | 1 | $267.12 | |||
| 045 | COVER(SEAT SUPP, RG467-93360 | 1 | $422.93 | |||
| 050 | ASSY LOCK, CYLIN RC411-43543 RC411-43544 | 1 | $62.47 | |||
| 060 | COVER, LOCK ASSY RC411-43550 | 1 | $17.28 | |||
| 070 | PLATE RC411-43580 | 1 | $25.85 | |||
| 080 | SCREW RC411-43600 | 1 | $25.00 | |||
| 085 | NUT(M22X1.5) RC411-43990 | 1 | $13.44 | |||
| 090 | CIR-CLIP, EXTERN 04613-00050 04613-50050 | 1 | $4.85 | |||
| 100 | TRIM(U,235) RG268-38240 | 1 | $9.71 | |||
| 110 | LABEL(WARNING,MANUAL R5611-57890 | 1 | $8.32 | |||
| 110 | LABEL, "READ MAN RG308-57020 | 1 | $8.53 | |||
| 120 | LABEL(LIFTING CA RG467-57480 | 1 | $22.51 | |||
| 125 | LABEL(LIFTING CA RG467-57760 | 1 | $22.51 | |||
| 130 | LABEL, CHECK, CA RG158-57560 | 1 | $27.98 | |||
| 135 | LABEL,CANOPY CHE RG158-57050 Discontinued | 1 | $19.70 | |||
| 150 | LABEL, FUSE RG158-57810 | 1 | $10.96 | |||
| 155 | LABEL,FUSE *** RG158-57770 Discontinued | 1 | $2.91 | |||
| 160 | LABEL(TPSS) RG467-57330 | 1 | $12.03 | |||
| 165 | LABEL(TPSS,FR) RG467-58330 | 1 | $22.51 | |||
| 170 | LABEL(POSITION,T RG467-57340 | 1 | $6.12 | |||
| 175 | LABEL(POSITION,T RG467-58340 | 1 | $6.12 | |||
| 180 | LABEL(PROP 65) RH418-58370 | 1 | $7.82 | |||
| 190 | LABEL(SILICA,WARNING RH418-58990 | 1 | $7.72 | |||
| 200 | LABEL(CAUTION,ST RH418-57622 | 1 | $17.89 | |||
| 205 | LABEL RH418-57792 | 1 | $17.72 | |||
| 210 | LABEL, SPARK ARR RG158-57410 | 1 | $9.41 | |||
| 215 | LABEL,SPARK ARRE RG158-57910 Discontinued | 1 | $5.85 | |||
Showing 1 to 30 of 30 parts
Related Assemblies
-

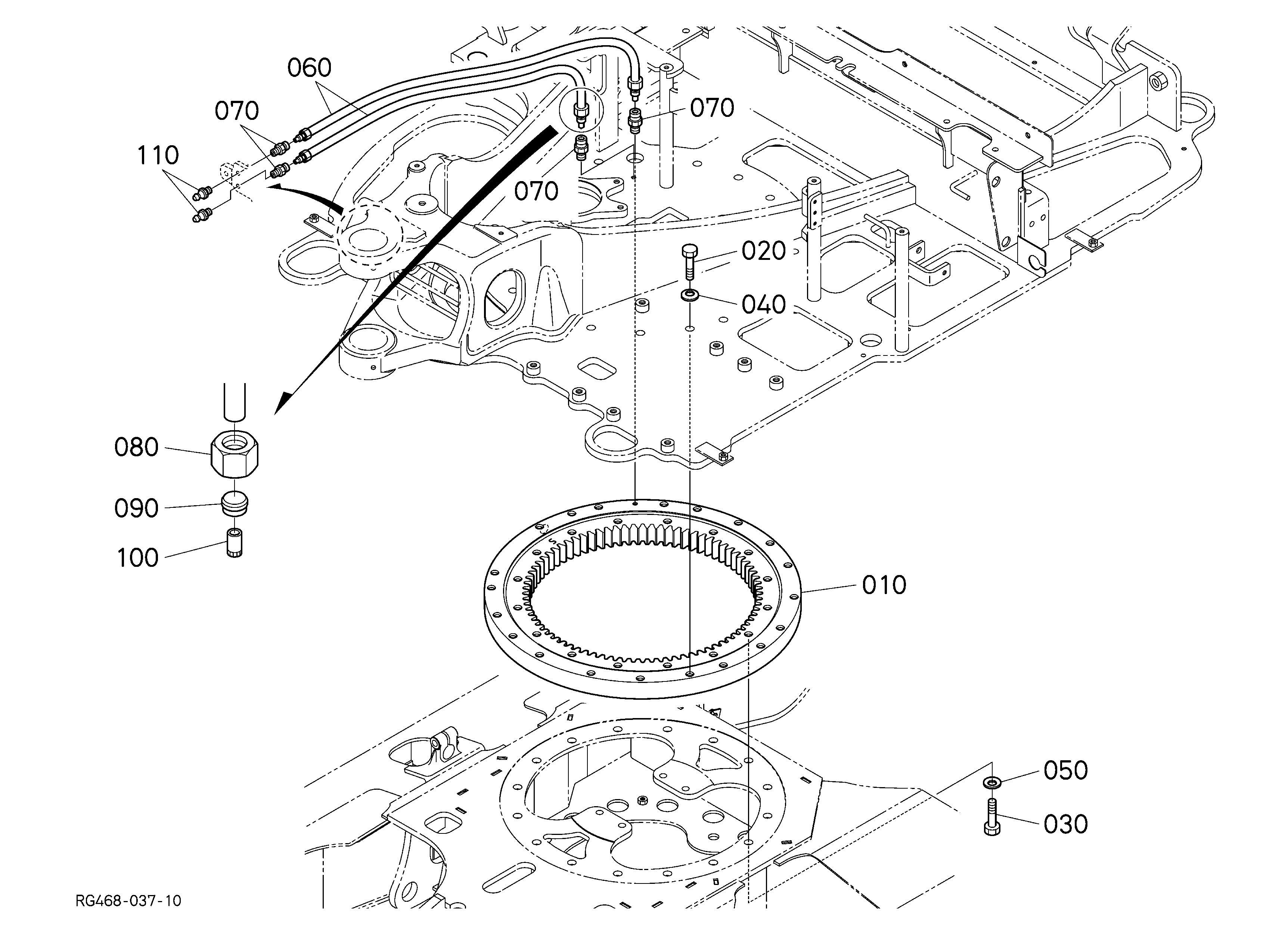

DIAG-J10000-341305 J10000 SWIVEL BEARING
View Diagram -
DIAG-J20002-341305 J20002 SEAT SUPPORT [CABIN TYPE]
View Diagram -
DIAG-J00100-341305 J00100 ARCH FRAME
View Diagram
