Scroll to zoom Click a part # to view details

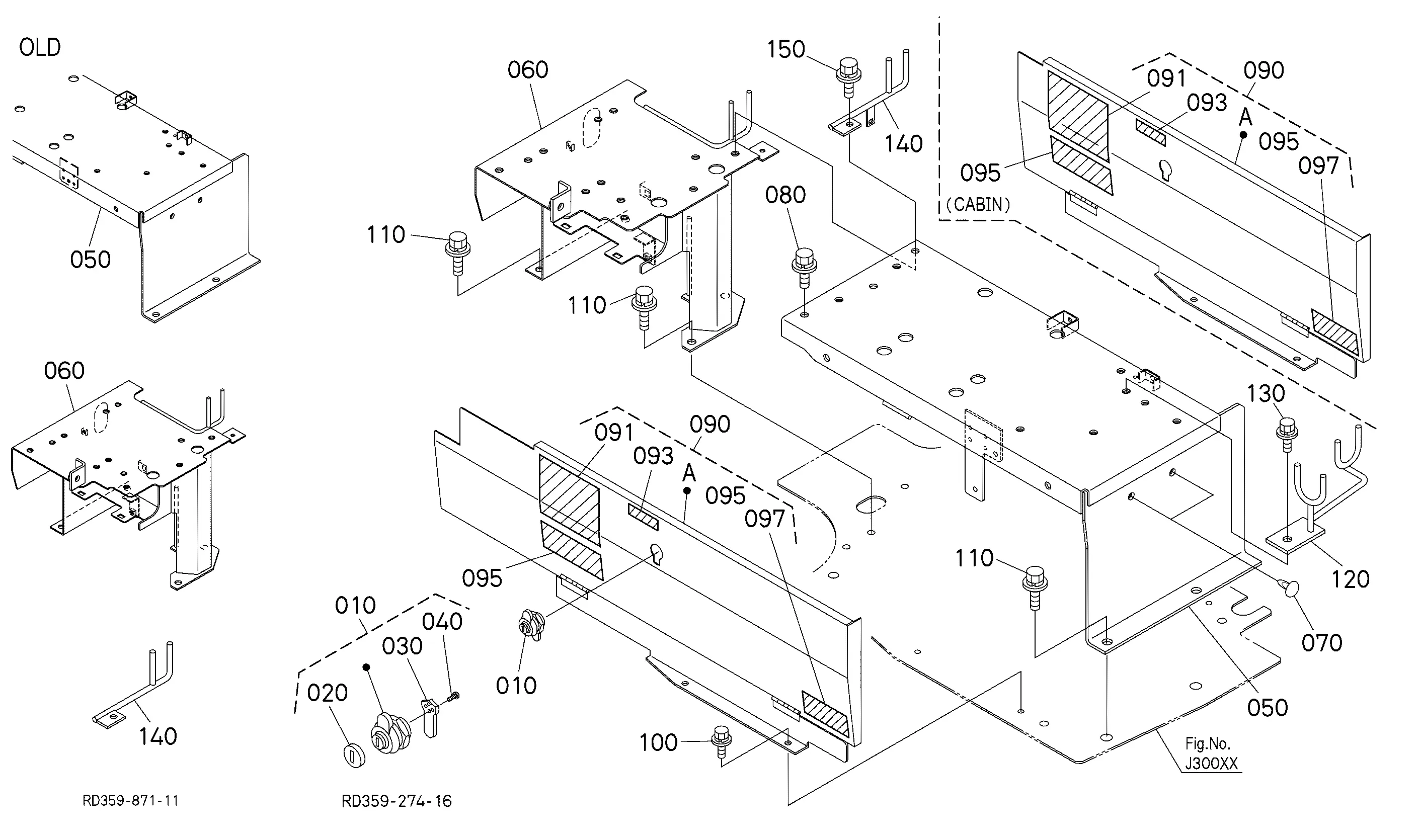

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY LOCK, CYLIN RC411-43543 RC411-43544 | 1 | $62.47 | |||
| 020 | COVER, LOCK ASSY RC411-43550 | 1 | $17.28 | |||
| 030 | PLATE RC411-43580 | 1 | $25.85 | |||
| 040 | SCREW RC411-43600 | 1 | $25.00 | |||
| 050 | SUPPORT RD358-38140 Discontinued | 1 | $798.44 | |||
| 050 | SUPPORT, SEAT RD358-38142 RD358-38143 | 1 | $601.65 | |||
| 060 | SUPPORT, SEAT RD451-38153 | 1 | $585.49 | |||
| 070 | PLUG RC411-66840 | 1 | $5.64 | |||
| 080 | Bolt 01135-51020 | 1 | $1.99 | |||
| 090 | KIT COVER RD458-91990 | 1 | $300.39 | |||
| 090 | KIT COVER RD458-92090 | 1 | $213.23 | |||
| 091 | LABEL, CAUTION RC418-57322 RC418-57323 | 1 | $10.19 | |||
| 100 | Bolt with Washer 01125-50820 | 1 | $1.37 | |||
| 110 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 120 | GUIDE (HOSE, PV, RD451-44530 RD451-44533 | 1 | $68.06 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

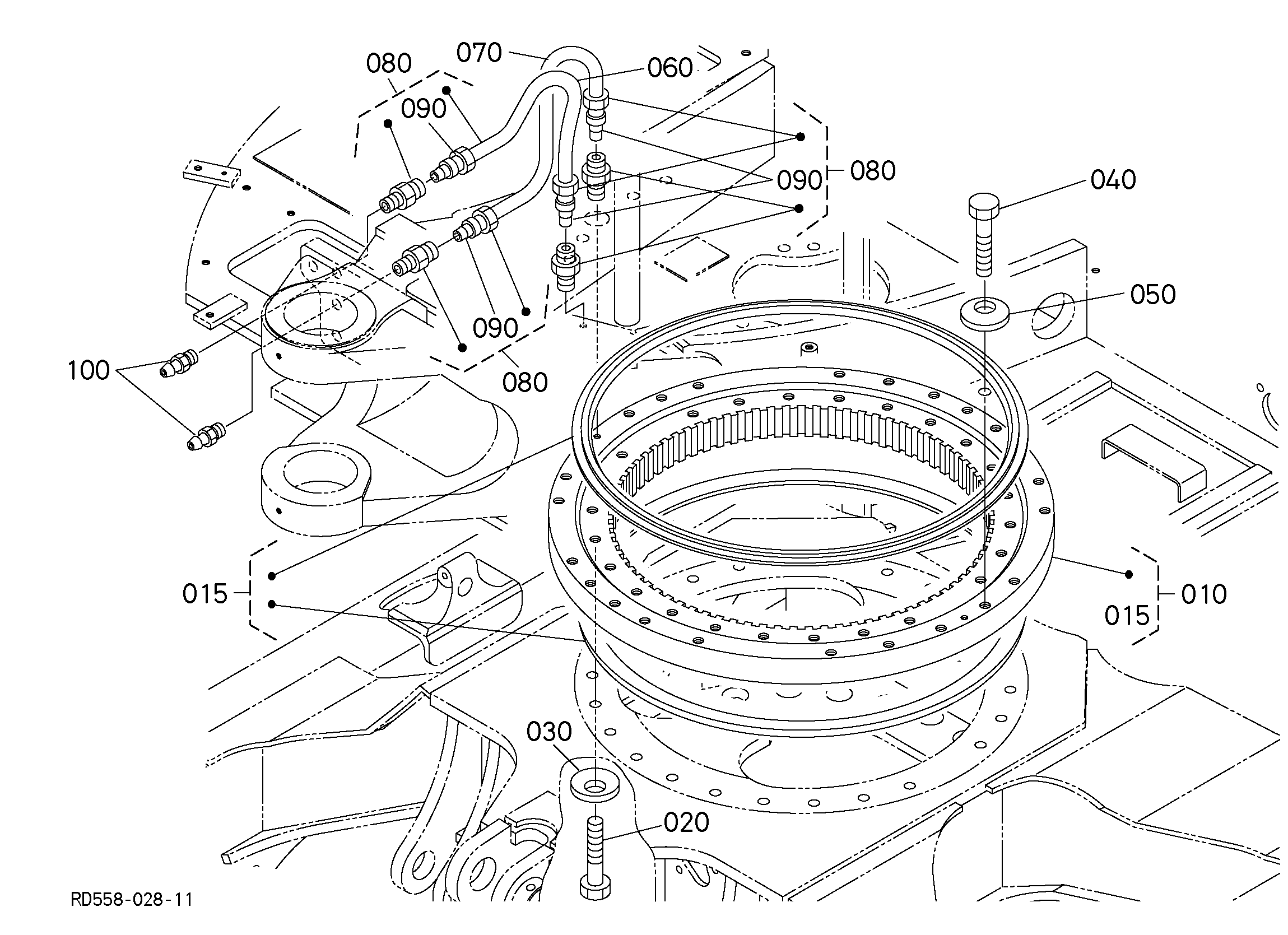

DIAG-J10000-194653 J10000 SWIVEL BEARING
View Diagram -
DIAG-J20002-194653 J20002 SEAT SUPPORT
View Diagram -
DIAG-J00200-194653 J00200 ARCH FRAME (2)
View Diagram
