Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | CENTRE JOINT ABI - HBS 401/E4831 | 1 | $16,578.45 | |||
| 20 | PRESSING-CENTRE JOINT BKT 400/B8249 | 1 | $36.97 | |||
| 30 | PRESSING - FRONT ANTI ROT 400/H0394 | 1 | $130.22 | |||
| 40 | PRESSING - ANTI ROTATION 400/H0393 | 1 | $124.82 | |||
| 50 | SCREW M12 X25 COUNTERSUNK 400/G1883 | 1 | $5.75 | |||
| 60 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 70 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 80 | SET-SCREW M12 L-_25mm 1315/0507D | 1 | $3.38 | |||
| 90 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 100 | ADAPTOR G3/4A-3/4UNF(M) 1620/0014 | 1 | $111.97 | |||
| 110 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 120 | ADA;45 9/16 UNF (M), 3/8 (P715) 1656/0606 | 1 | $18.82 | |||
| 130 | ADAPTOR G5/8Ax7/8SAE 1620/0007 1620/2056 | 1 | $12.58 | |||
| 140 | ADAPTOR G1A X 1-5/8 SAE 1620/2062 | 1 | $140.77 | |||
| 150 | ADAPTOR 1/2 BSP X9/16-18 816/90038 | 1 | $5.96 | |||
| 160 | PLUG 9/16UNF O RING BOSS 1745/0002 | 1 | $106.02 | |||
| 170 | ADAPTOR G5/8A x 3/4 SAE 816/90007 | 1 | $21.93 | |||
| 180 | Adaptor /2BSP X 7/8-14 816/90041 | 1 | $171.61 | |||
| 190 | ADAPTOR 9/16SAE x G3/8A (P980) 816/90271 | 1 | $7.88 | |||
| 200 | ADAPTOR STRAIGHT 816/90498 | 1 | $31.27 | |||
| 220 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 230 | ADAPTOR 1620/2064 | 1 | $34.58 | |||
| 240 | ELBOW ADAPTOR 332/B5525 816/90548 | 1 | $11.96 | |||
| 250 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
| 260 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 270 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 280 | WA SUPPORT BRKT 401/E5569 | 1 | $50.15 | |||
| 290 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-

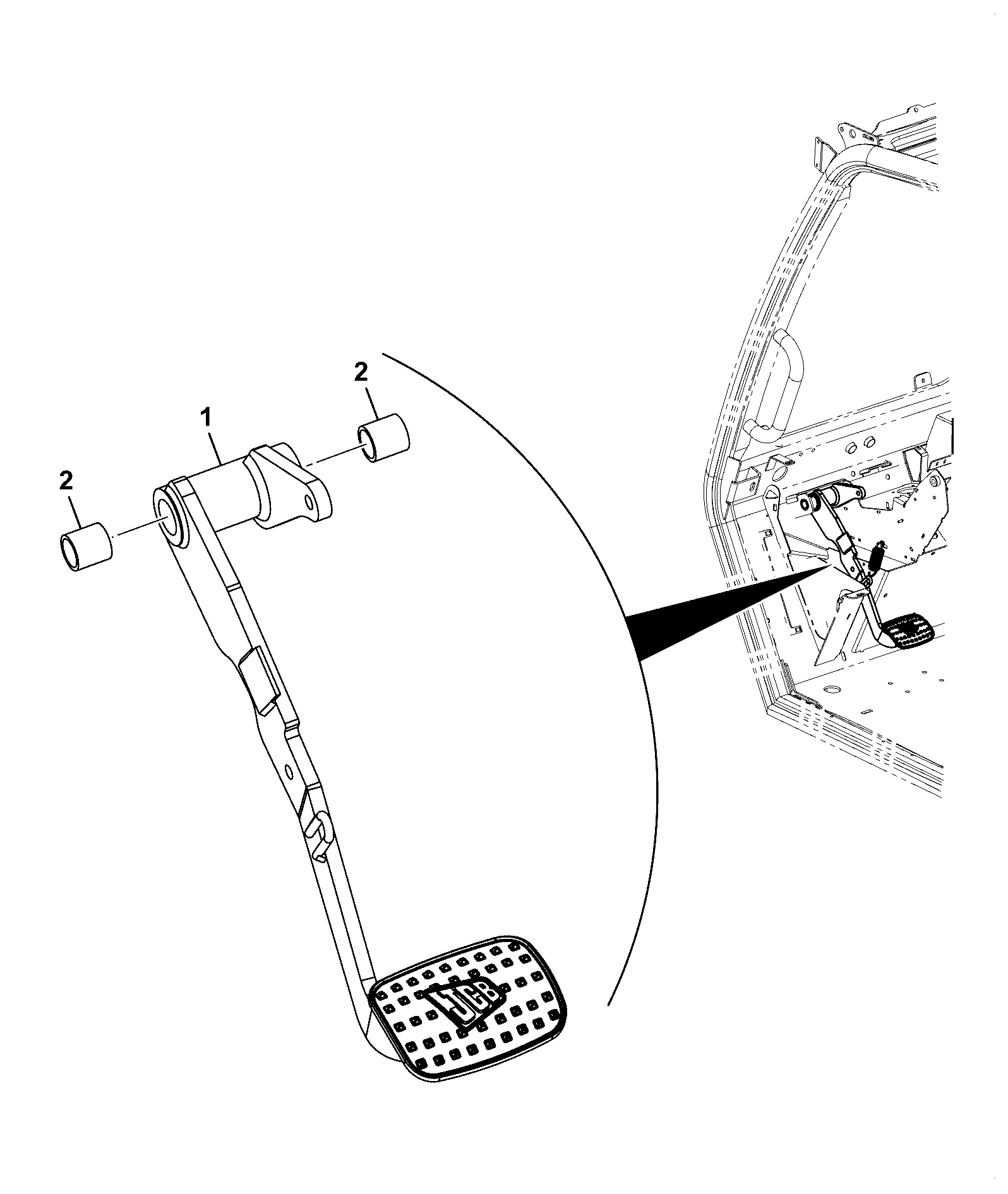

DIAG-G190-55-1-400473 G190-55-1 OTHER BRAKE SYSTEM PARTS DETAILS BRAKE PEDAL, SINGLE
View Diagram -
DIAG-J190-5-1-400473 J190-5-1 OTHER UNDERCARRIAGE PARTS COMPONENTS
View Diagram -
DIAG-G190-5-1-400473 G190-5-1 OTHER BRAKE SYSTEM PARTS ACCUMULATORS BRAKE HYD
View Diagram
