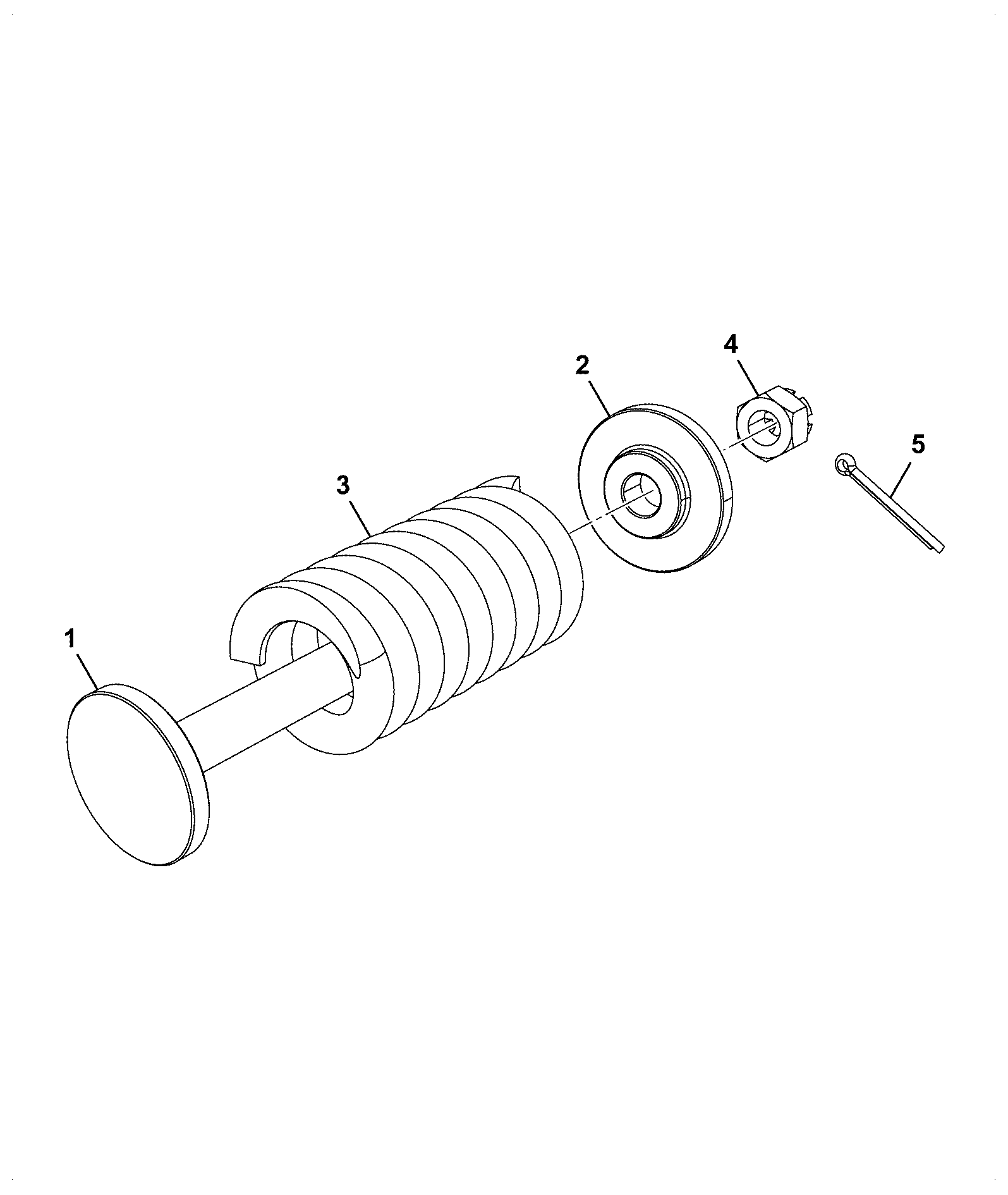

J130-1-1 RECOIL UNIT ASSEMBLY SPRING Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	UNIT RECOIL ASSEMB 232/21600	1	AVAILABLE TO ORDER	$1,421.56	Quantity
1	SPRING 402/J2560	1	AVAILABLE TO ORDER	$242.85	Quantity
2	CAP END 232/21601	1	AVAILABLE TO ORDER	$129.73	Quantity
3	SHAFT SPRING SUPPO 232/21900	1	AVAILABLE TO ORDER	$456.10	Quantity
4	NUT HEX CASTLE 826/01252	1	AVAILABLE TO ORDER	$59.89	Quantity

Showing 1 to 5 of 5 parts

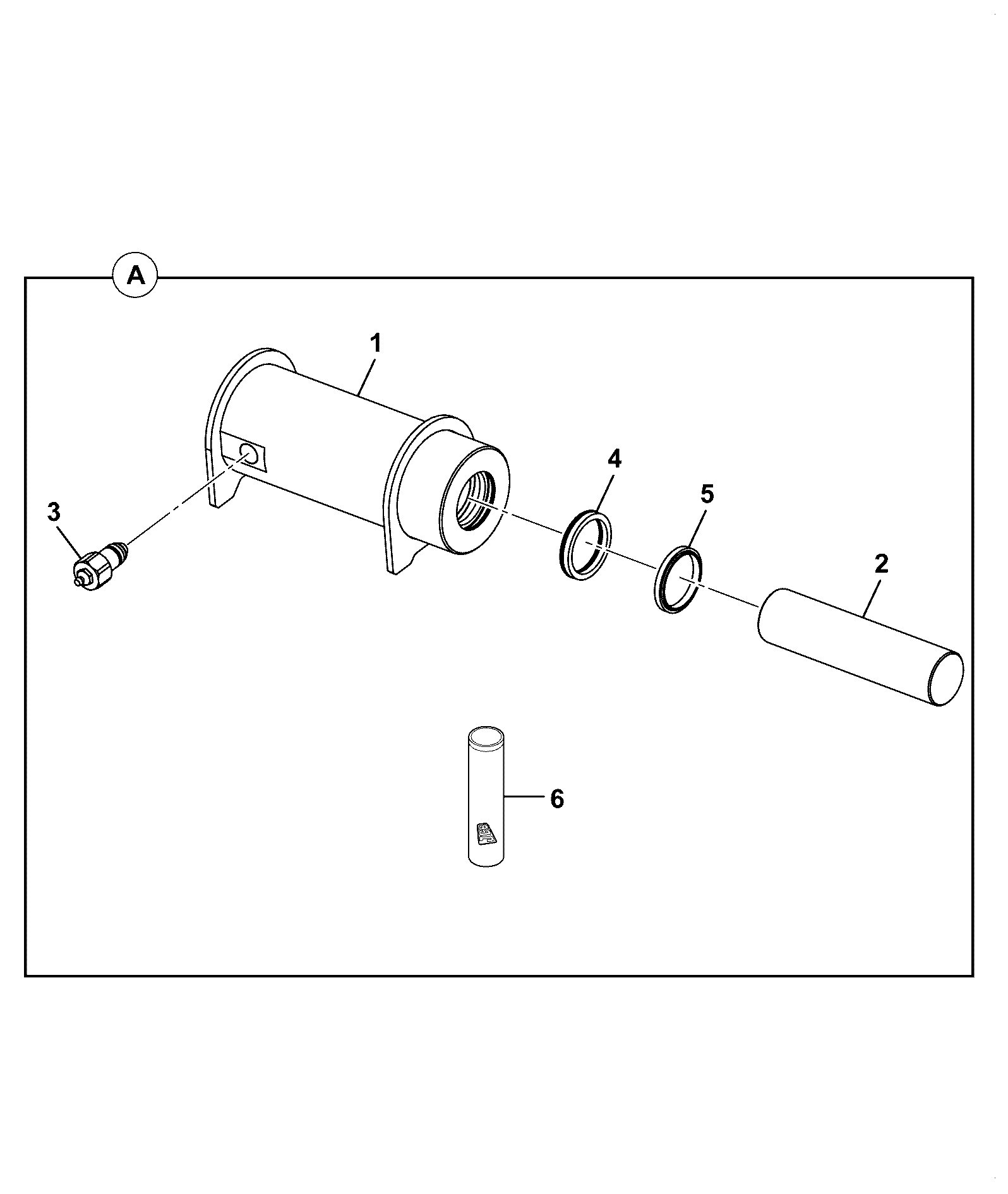

DIAG-J120-1-1-397948 J120-1-1 RECOIL AND IDLER ASSEMBLY GREASE TENSIONER
View Diagram
DIAG-J130-5-1-397948 J130-5-1 RECOIL UNIT RUBBER TRACK
View Diagram
DIAG-J100-10-1-397948 J100-10-1 UNDERCARRIAGE INSTALLATION ASSEMBLIES 2.5Z
View Diagram
