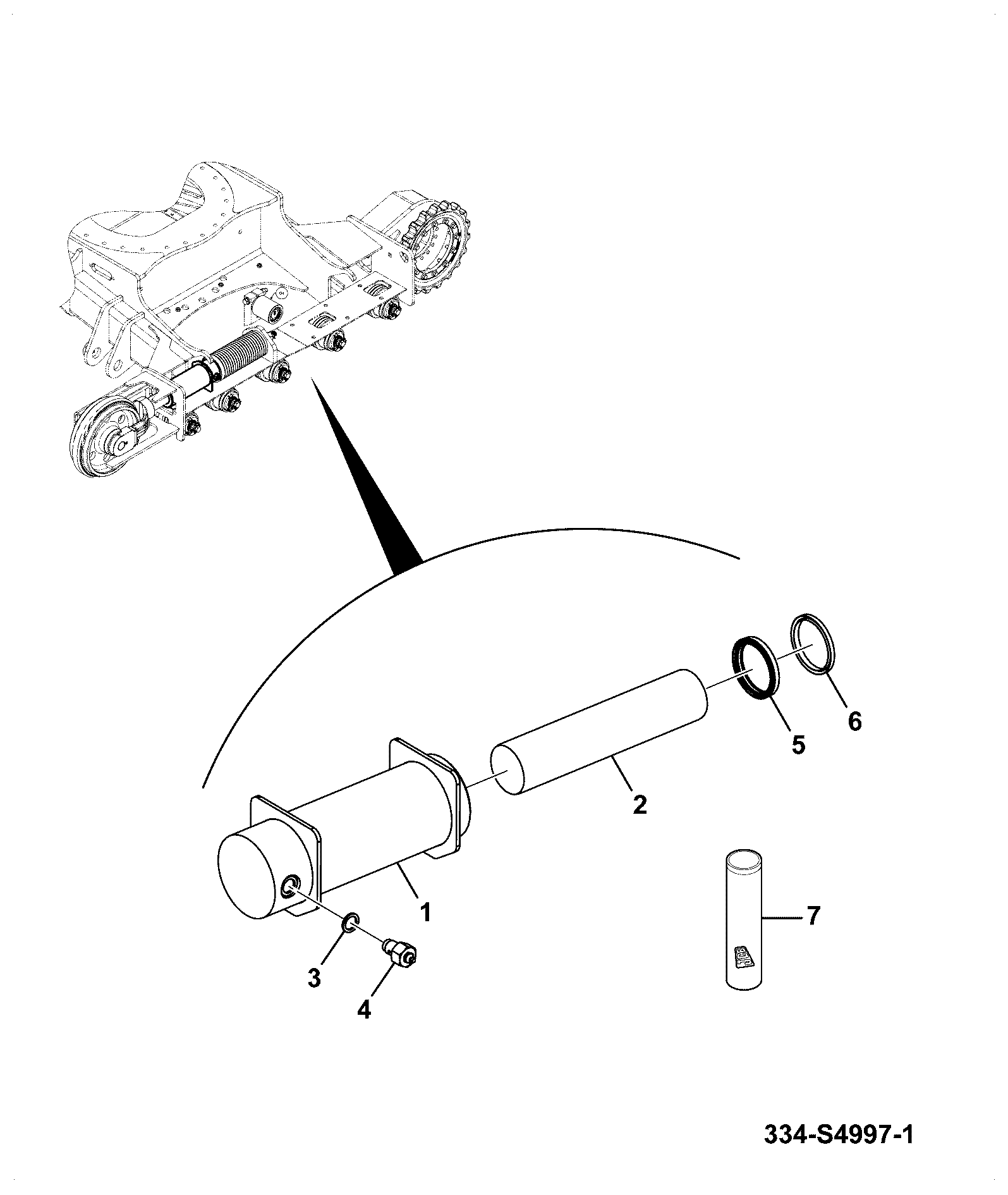

J120-30-5 RECOIL AND IDLER ASSEMBLY INSTALLATION TENSIONERS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	GA TENSIONER LH UC 334/S4997 400/X1849	1	AVAILABLE TO ORDER	$799.24	Quantity
2	GA TENSIONER RH UC 334/S5061 400/X1853	1	AVAILABLE TO ORDER	$799.24	Quantity

Showing 1 to 2 of 2 parts
