Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | IDLER SPLICE PLATE 335/12567 333/T8237 | 1 | $135.02 | |||
| 2 | PLATE 331/19342 | 1 | $280.41 | |||
| 4 | Plate LH motor cov 335/02434 | 1 | $187.10 | |||
| 5 | PLATE -COVER RH 335/02436 | 1 | $187.10 | |||
| 10 | WHEEL 238/00111 | 1 | $3,532.89 | |||
| 12 | UNIT RECOIL ASSEMB 232/21600 | 1 | $1,421.56 | |||
| 13 | BLADE DOZER 335/10175 | 1 | $4,179.04 | |||
| 15 | SLEW RING 8035ZTS 821/10422 | 1 | $3,592.34 | |||
| 17 | Bolt 1316/3611D | 1 | $5.03 | |||
| 18 | SPECIAL WASHER 823/00540 | 1 | $10.23 | |||
| 19 | SET-SCREW M16 L-_35mm 1315/0709D | 1 | $8.88 | |||
| 20 | M16 Hardened Washer JHP0043 | 1 | $2.17 | |||
| 21 | SET SCREW M12x20 1315/0505D | 1 | $1.20 | |||
| 22 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 23 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 24 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 25 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 26 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 27 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 28 | SET-SCREW M12 L-_35mm 1315/0509D | 1 | $1.67 | |||
| 29 | (W) (P)WASHER 13x23x2.7 823/00309 | 1 | $17.88 | |||
| 30 | TOP ROLLER 332/S4308 | 1 | $184.59 | |||
| 40 | TRACK ROLLER ASSEMBLY 332/W3498 | 1 | $222.98 | |||
| 41 | COVER - TENSIONER 331/58807 | 1 | $113.19 | |||
| 42 | SET-SCREW M_8 L-_12mm 1315/0301D | 1 | $0.38 | |||
| 43 | SKID PLATE 331/61223 | 1 | $214.40 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

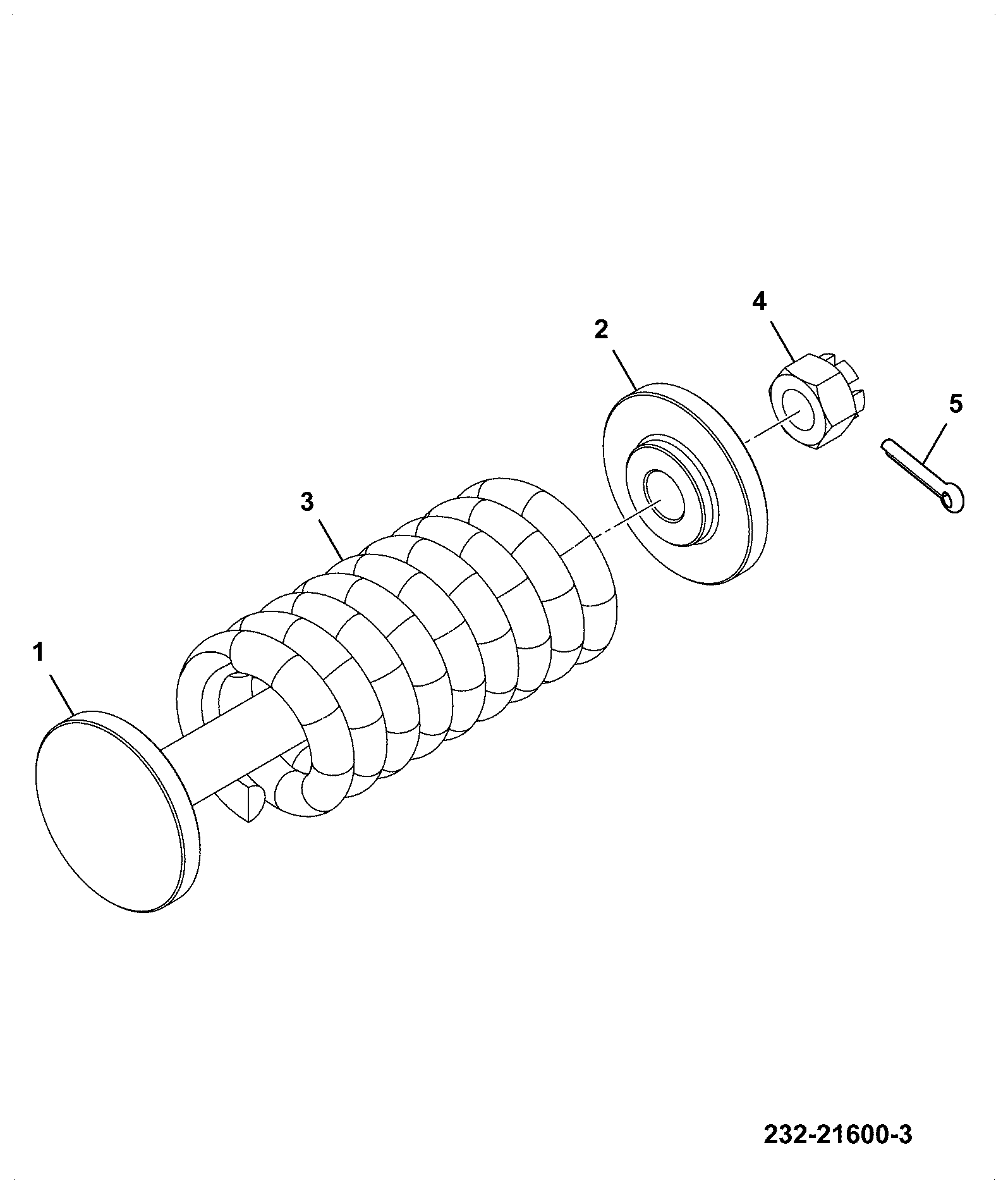

DIAG-J130-1-3-398049 J130-1-3 RECOIL UNIT
View Diagram -
DIAG-J140-1-4-398049 J140-1-4 IDLER ASSEMBLY RIGHT SIDE
View Diagram -
DIAG-J140-5-1-398049 J140-5-1 IDLER ASSEMBLY
View Diagram
