Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Undercarriage 237/04200 | 1 | $10,957.46 | |||
| 2 | COVER 232/14305 | 1 | $11.48 | |||
| 3 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 6 | COVER TENSION 233/31209 | 1 | $120.21 | |||
| 7 | COVER TRACK BOX 232/14302 | 1 | $129.03 | |||
| 8 | PLATE BASE COVER 232/14303 | 1 | $304.92 | |||
| 9 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 10 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 11 | SPRING WASHER M10 823/00416D | 1 | $0.18 | |||
| 12 | SLEW RING 916/10034 | 1 | $4,306.27 | |||
| 13 | BOLT M14X60LG 1316/3614D | 1 | $7.78 | |||
| 14 | SPECIAL WASHER 823/00540 | 1 | $10.23 | |||
| 15 | GREASE NIPPLE G1/8A 333/Y6602 1450/0001 | 1 | $0.70 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-

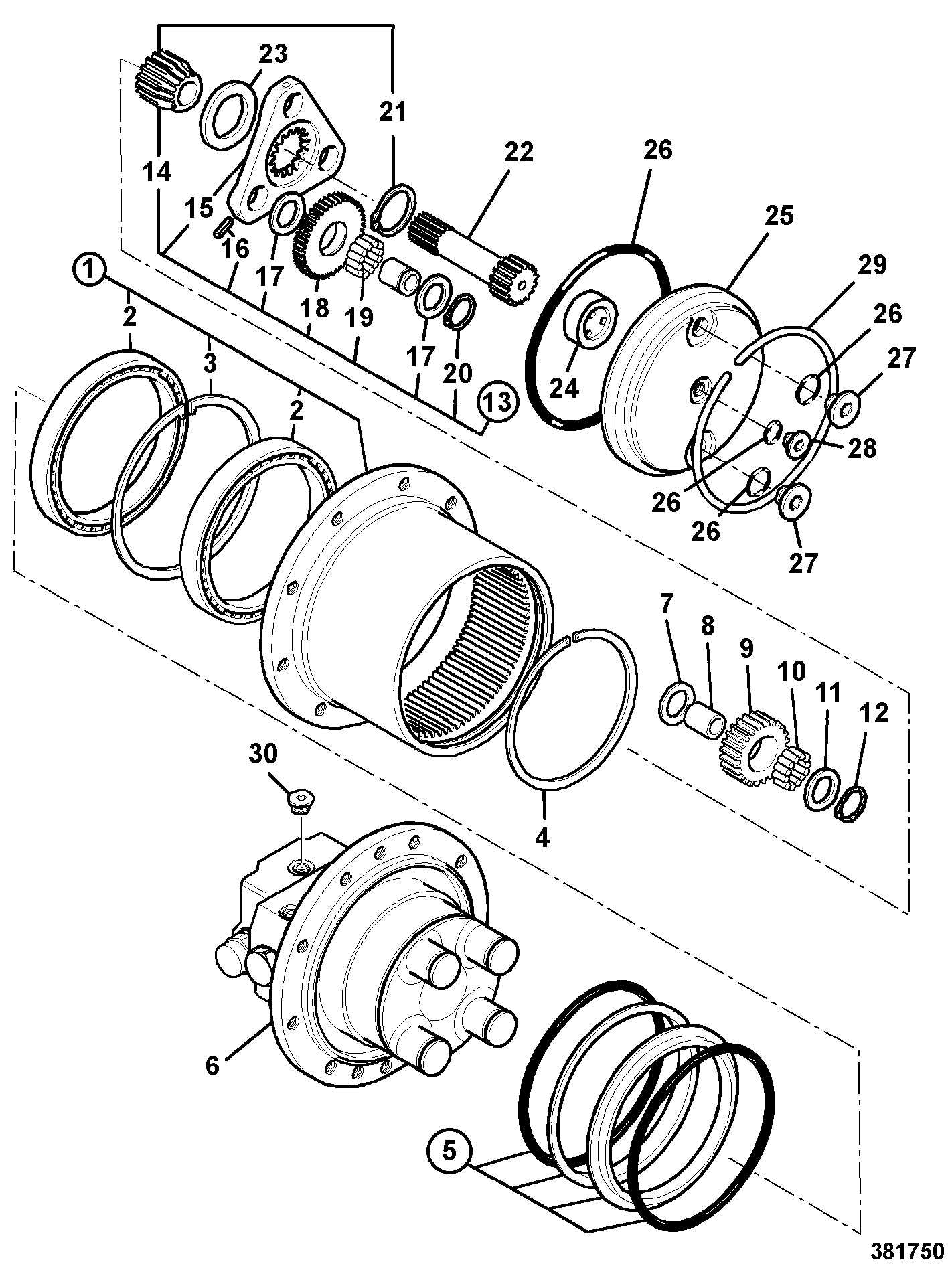

DIAG-F4-4-3-398098 F4-4-3 GEARBOX COMPONENTS TRACK
View Diagram -

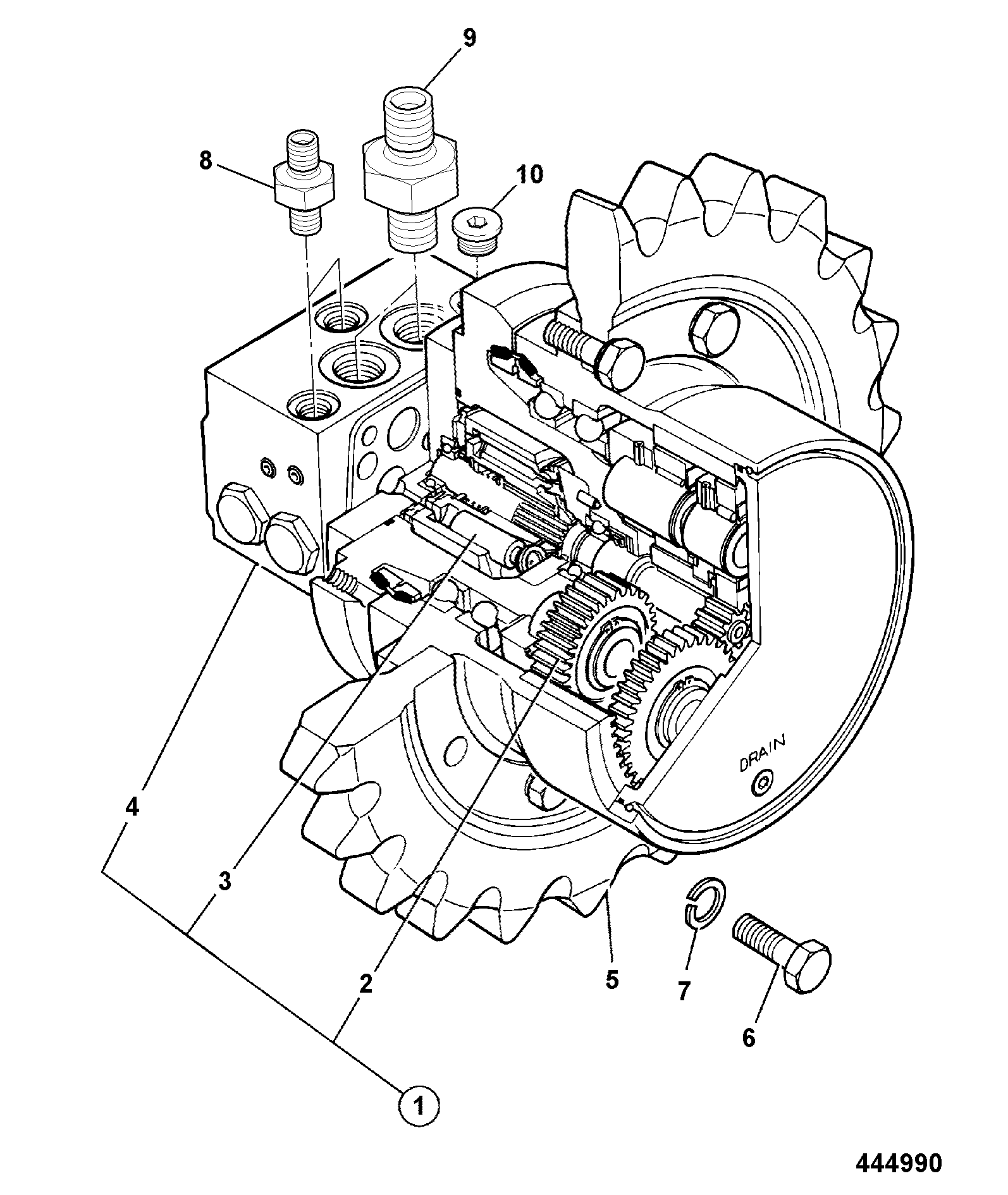

DIAG-F4-3-3-398098-12100363 F4-3-3 GEARBOX, TRACK ASSEMBLY
View Diagram -

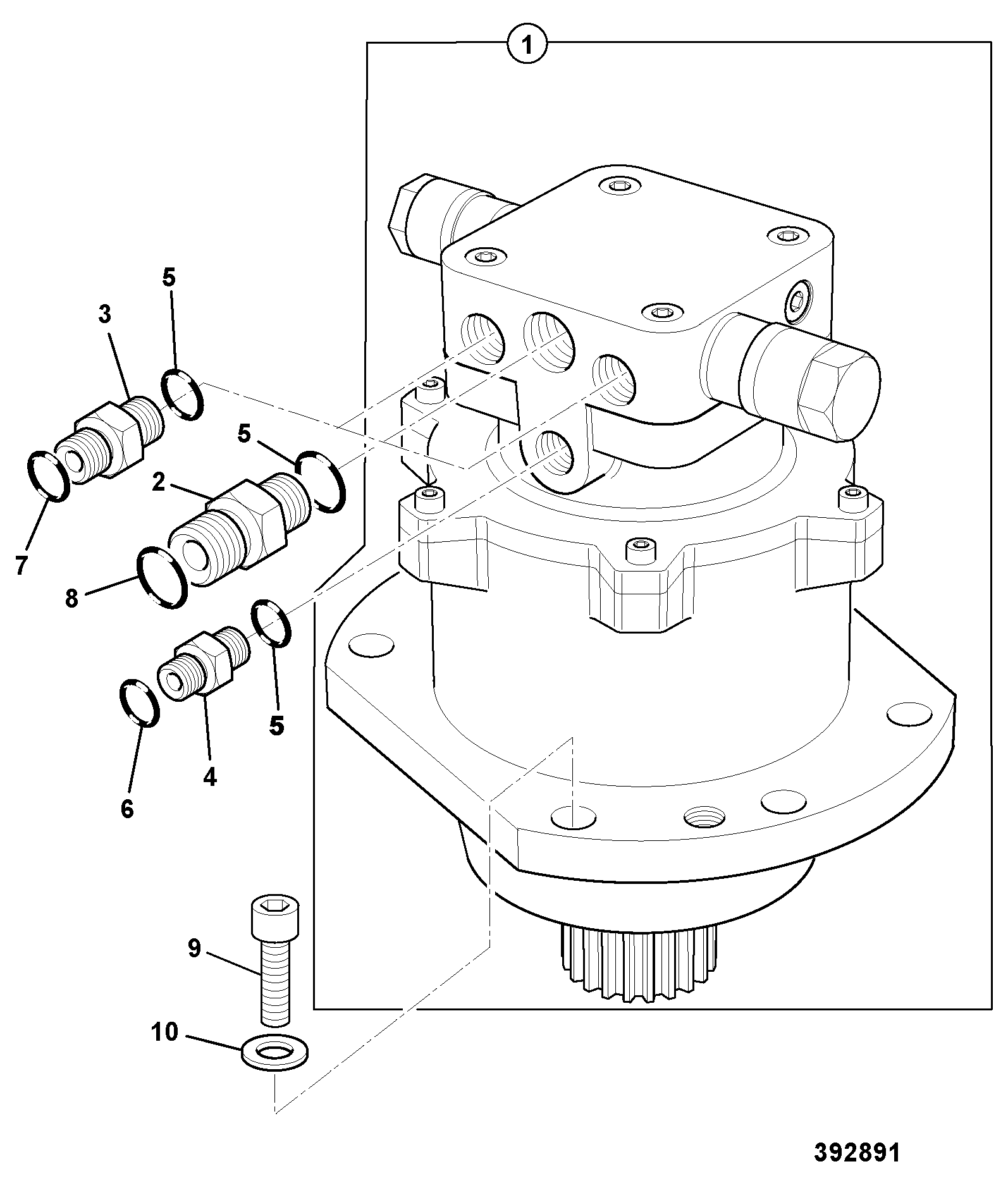

DIAG-F4-1-2-398098 F4-1-2 GEARBOX, SLEW
View Diagram
