Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| SLEEVING - POLY 43.5mmx65 647/10101 | 1 | $20.04 | ||||
| 1 | TURRET WA - EXTENDER 335/11347 | 1 | $1,967.14 | |||
| 2 | TRACK LEG WA - L/H EXTEND 335/06288 | 1 | $856.10 | |||
| 3 | TRACK LEG WA - R/H EXTEND 335/06289 | 1 | $617.63 | |||
| 4 | Pin pivot 236/40001 | 1 | $67.01 | |||
| 4A | SLEW LOCK STOP 331/39006 | 1 | $231.74 | |||
| 5 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 6 | SET-SCREW M12 L-_30mm 1315/0508D | 1 | $4.54 | |||
| 7 | RAM GUARD 331/42827 | 1 | $165.55 | |||
| 8 | SPACER-14MM 121/93503 | 1 | $2.83 | |||
| 9 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 10 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 15 | GROMMET 828/00404 | 1 | $16.86 | |||
| 16 | WEAR PAD 331/38811 334/V3587 | 1 | $36.72 | |||
| 17 | SIDE WEAR PAD 331/42828 334/V3630 | 1 | $17.49 | |||
| 18 | CAP SCREW M8x35 (P564) 1391/3309D | 1 | $5.88 | |||
| 22 | Bolt M16x100 1316/3720D | 1 | $10.23 | |||
| 23 | WASHER M16 PLAIN 1420/0011D | 1 | $1.43 | |||
| 24 | NUT M16 SELF LOCKING 1371/0603D | 1 | $14.22 | |||
| 25 | WA MOTOR COVER PLATE 332/T5728 | 1 | $216.96 | |||
| 26 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 27 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 30 | SLEW RING 821/10322 | 1 | $2,935.83 | |||
| 31 | DOWEL 2105/1609 | 1 | $7.88 | |||
| 32 | BOLT 6009/3510D | 1 | $3.33 | |||
| 32 | SCREW HEX. HEAD 826/01550 | 1 | $7.21 | |||
| 33 | (W) (P)WASHER 13x23x2.7 823/00309 | 1 | $17.88 | |||
| 34 | COVER PLATE 331/39000 | 1 | $198.20 | |||
| 35 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 36 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
Showing 1 to 30 of 30 parts
Related Assemblies
-
DIAG-J1-1-21-397872 J1-1-21 UNDERCARRIAGE ASSEMBLY
View Diagram -
DIAG-E4-6-2-397872 E4-6-2 RAM GUARD EXTENDING UNDERCARRIAGE
View Diagram -

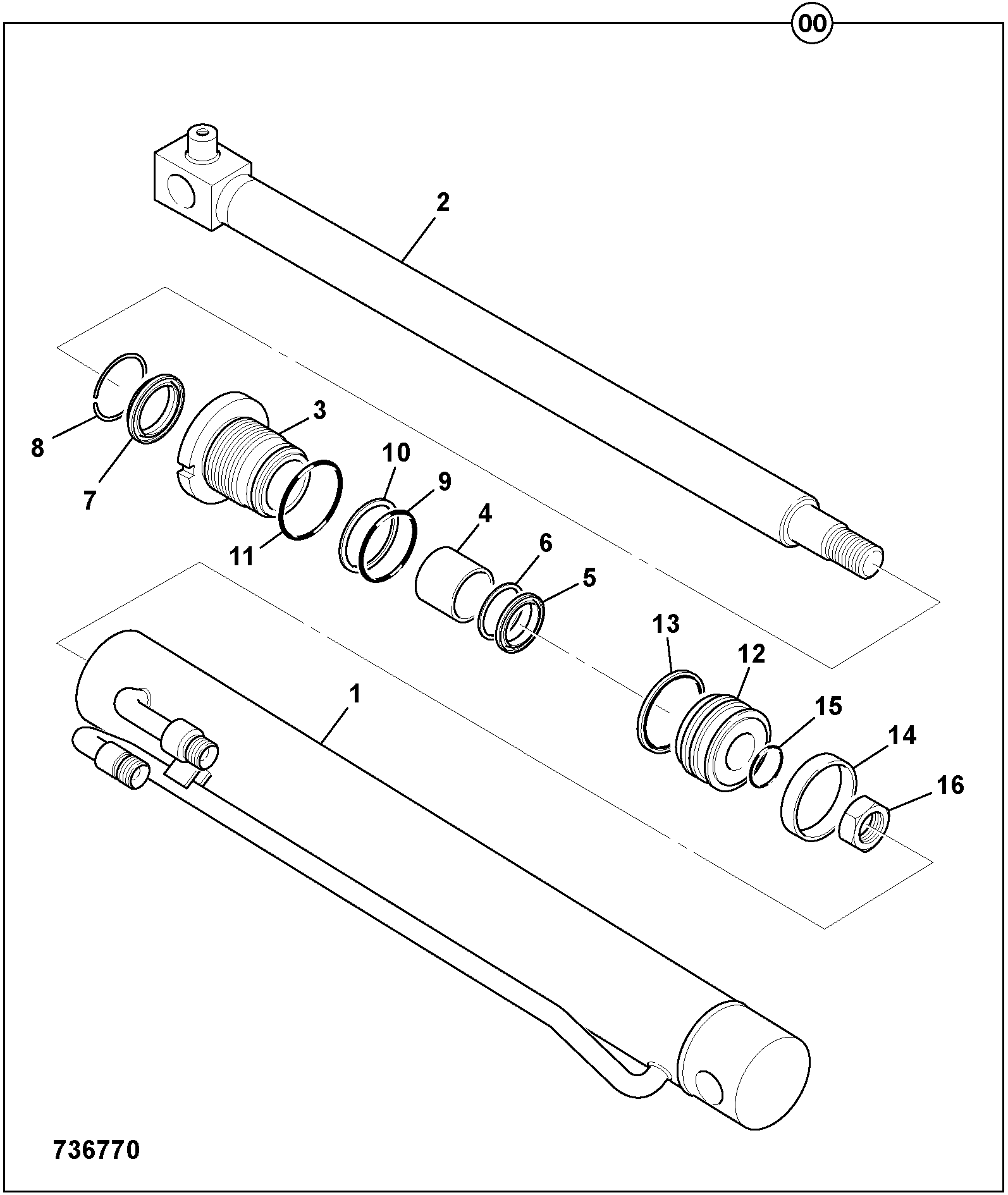

DIAG-E4-6-1-397872-12029627 E4-6-1 RAM, EXTENDING UNDERCARRIAGE
View Diagram
