Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | PLATE SKID 233/31001 | 1 | $153.86 | |||
| 8 | BOLT M12x40 1315/3510Z | 1 | $4.66 | |||
| 11 | GEAR SLEW RING 232/23500 | 1 | $2,513.10 | |||
| 12 | COVER TRACK BOX 232/14302 | 1 | $129.03 | |||
| 13 | PLATE BASE COVER 232/14303 | 1 | $304.92 | |||
| 15 | NUT M12 STD SELF LOCK 1370/0403Z | 1 | $2.11 | |||
| 16 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 17 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 21 | (P) BOLT M12x60 1316/3514Z | 1 | $17.79 | |||
| 22 | SPECIAL WASHER M12 823/00394 | 1 | $2.96 | |||
| 23 | (W) (Pre-P)-SET SCREW M8x12 1315/0301Z | 1 | $1.92 | |||
| 24 | SPRING WASHER M8 823/00415Z | 1 | $0.30 | |||
| 25 | BOLT M12X35 1315/3509Z | 1 | $1.72 | |||
| 26 | (W) (P)WASHER 13x23x2.7 823/00309 | 1 | $17.88 | |||
| 27 | SET SCREW M10x35 1315/0409Z | 1 | $8.37 | |||
| 28 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

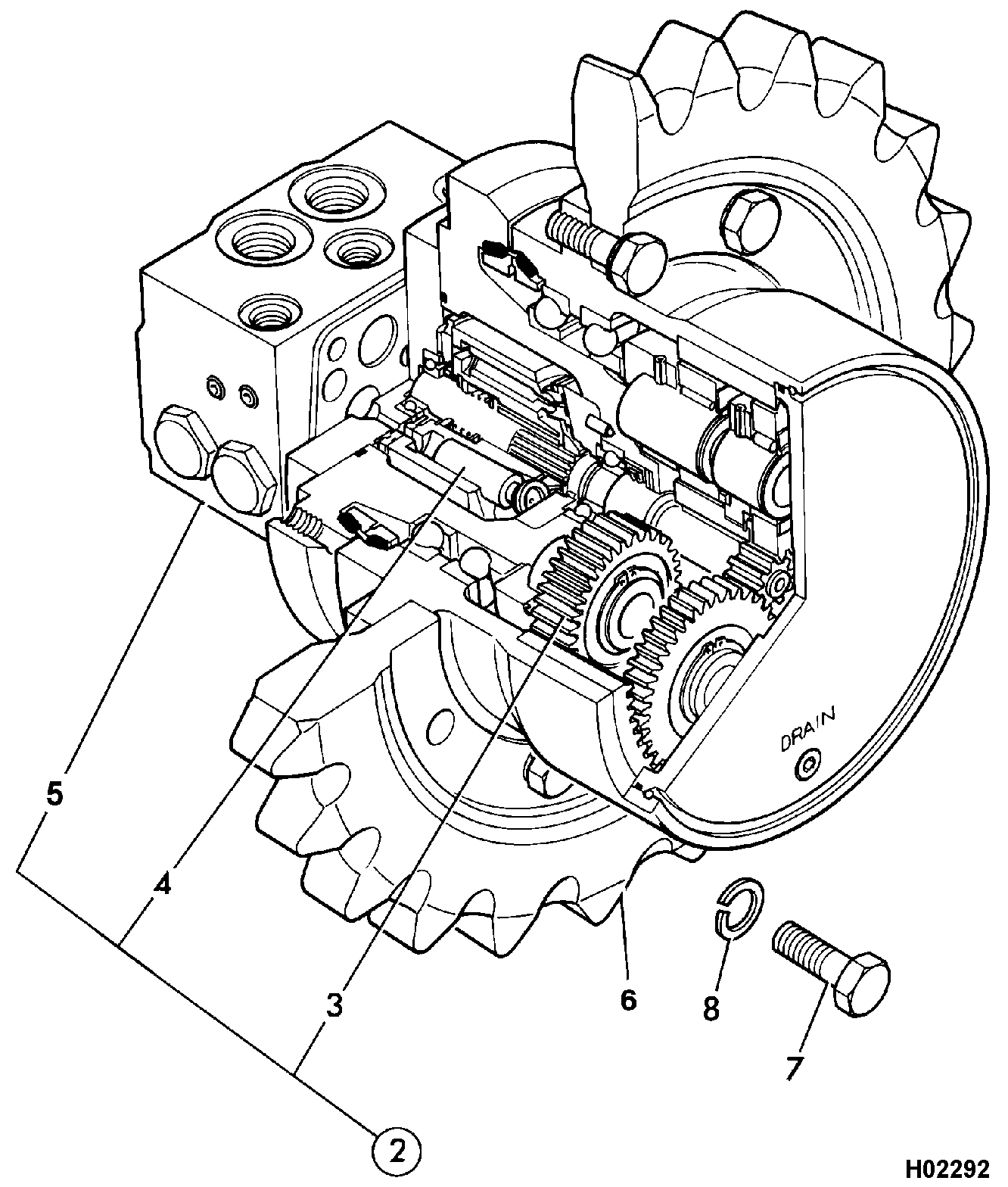

DIAG-F4-2-2-397923-12044989 F4-2-2 GEARBOX, TRACK
View Diagram -
DIAG-F4-2-1-397923 F4-2-1 GEARBOX, TRACK
View Diagram -

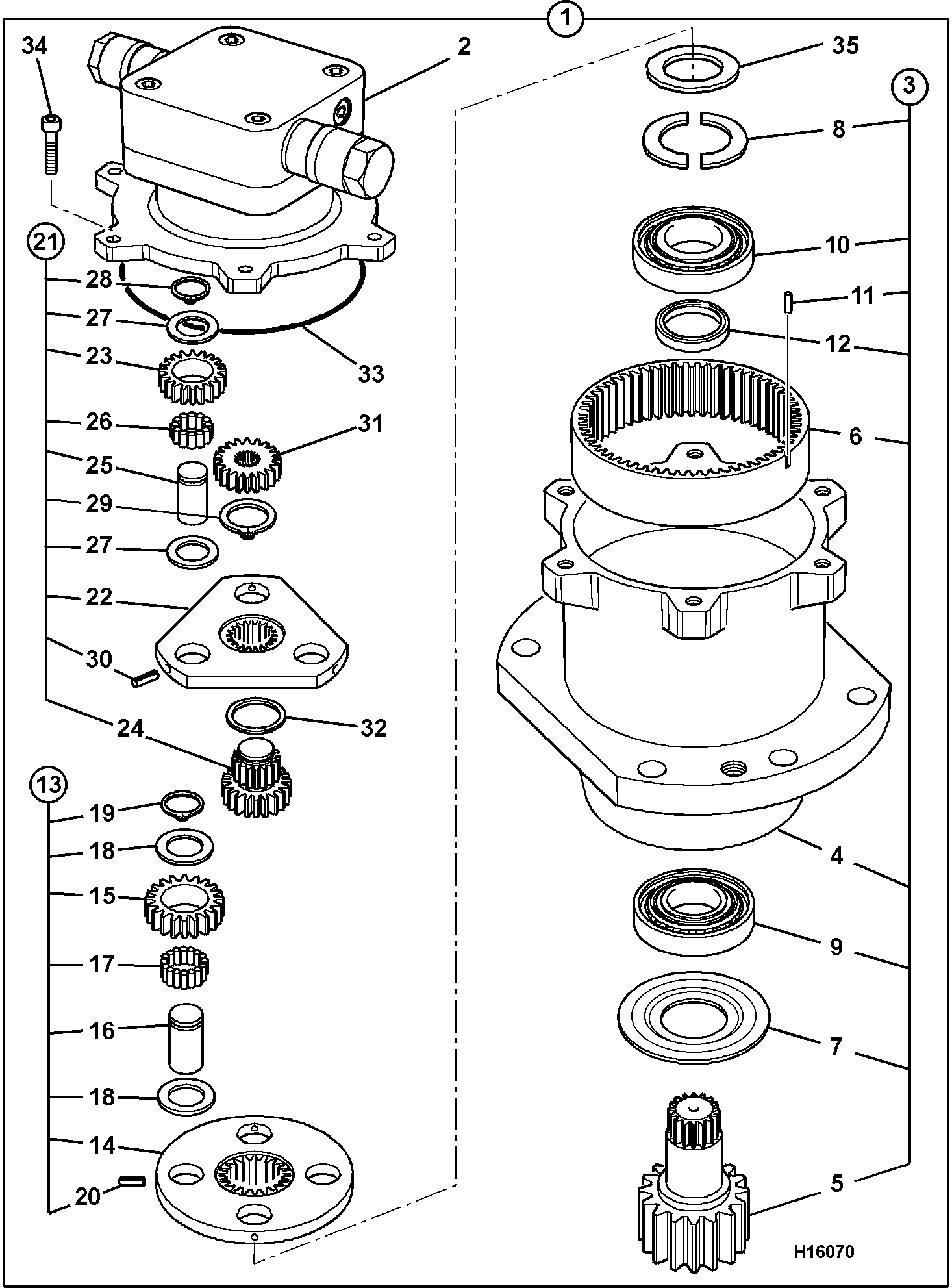

DIAG-F4-1-4-397923 F4-1-4 GEARBOX, SLEW
View Diagram
