Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | UNDERCARRIAGE 335/01335 | 1 | $3,963.46 | |||
| 2 | PLATE SKID 233/31001 | 1 | $153.86 | |||
| 3 | BOLT M12x40 1315/3510Z | 1 | $4.66 | |||
| 4 | Nut M12 STD SELF LOCK 1370/0403D | 1 | $1.01 | |||
| 5 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 6 | COVER TENSION 233/31209 | 1 | $120.21 | |||
| 7 | COVER TRACK BOX 232/14302 | 1 | $129.03 | |||
| 8 | PLATE BASE COVER 232/14303 | 1 | $304.92 | |||
| 9 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 10 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 11 | SPRING WASHER M10 823/00416D | 1 | $0.18 | |||
| 12 | GEAR SLEW RING 233/21300 | 1 | $4,575.67 | |||
| 13 | SCREW HEX. HEAD 826/01610 | 1 | $6.02 | |||
| 14 | SCREW SPECIAL 826/01701 | 1 | $28.47 | |||
| 15 | SPECIAL WASHER M12 823/00394 | 1 | $2.96 | |||
| 16 | TUBE SPACER 233/31002 | 1 | $37.37 | |||
| 17 | BRACKET ROTARY JOI 331/17154 | 1 | $135.99 | |||
| 18 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 19 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 20 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-

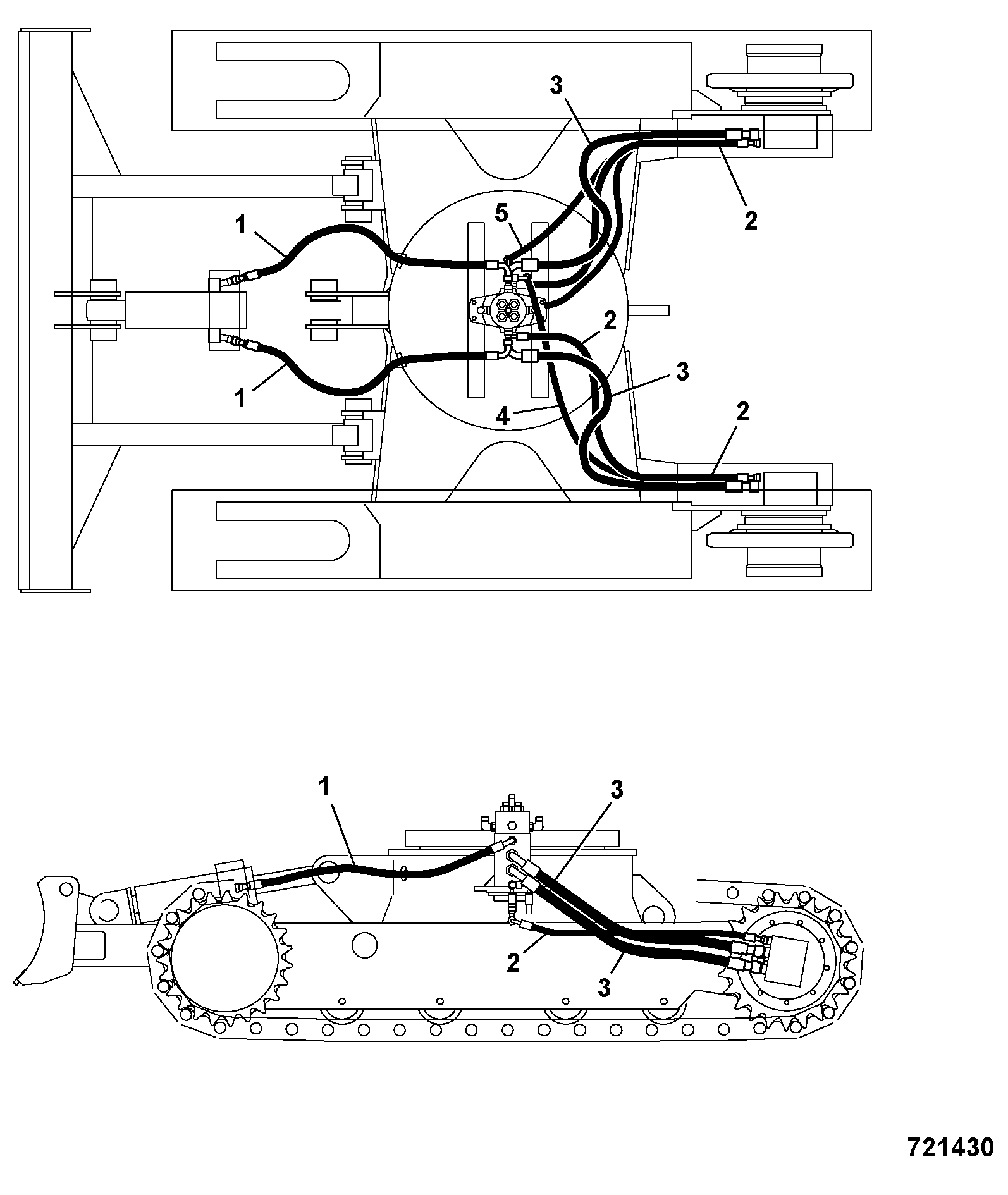

DIAG-J1-1-2-397918 J1-1-2 UNDERCARRIAGE HOSES
View Diagram -

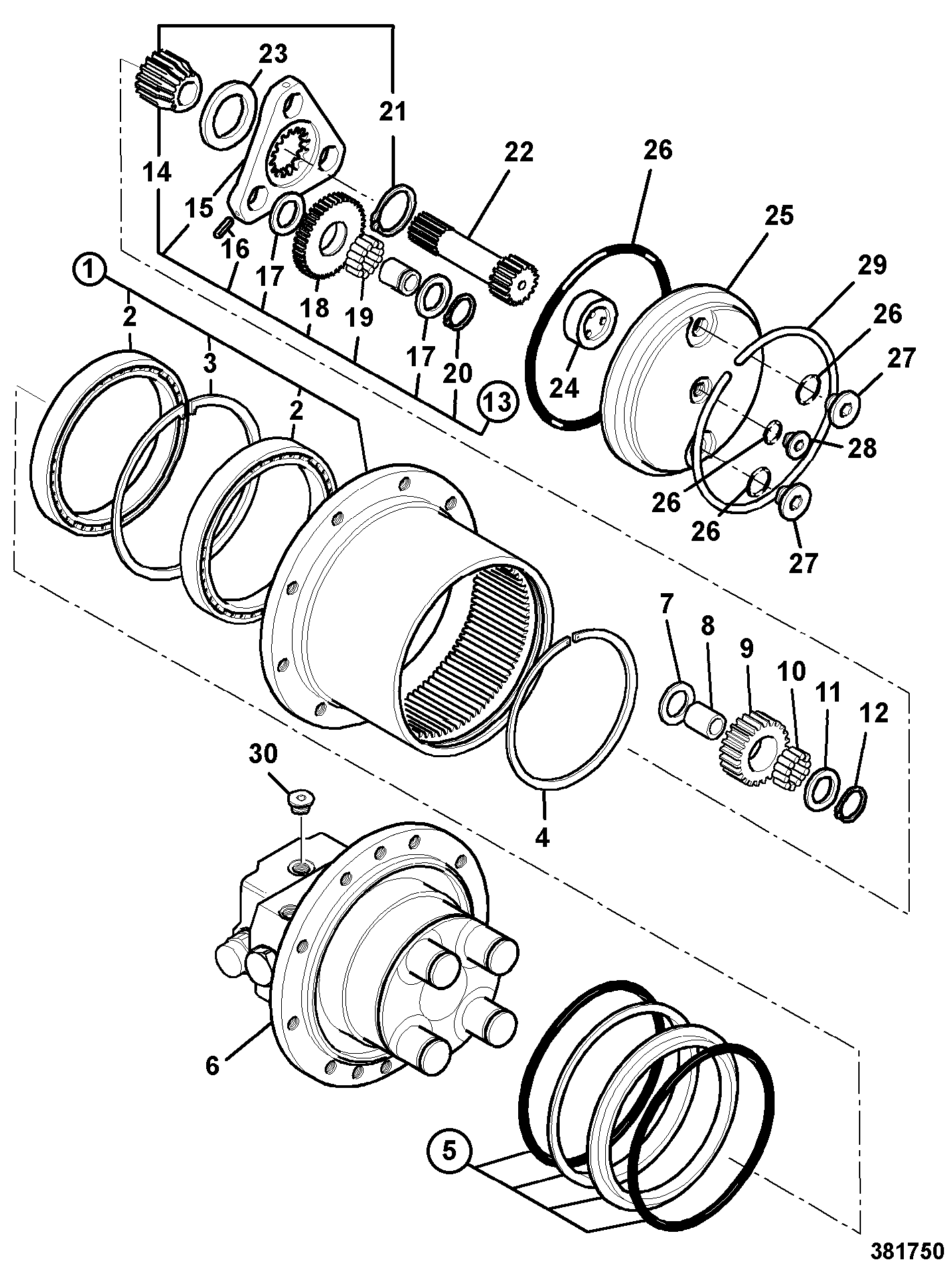

DIAG-F4-4-1-397918 F4-4-1 GEARBOX COMPONENTS TRACK
View Diagram -

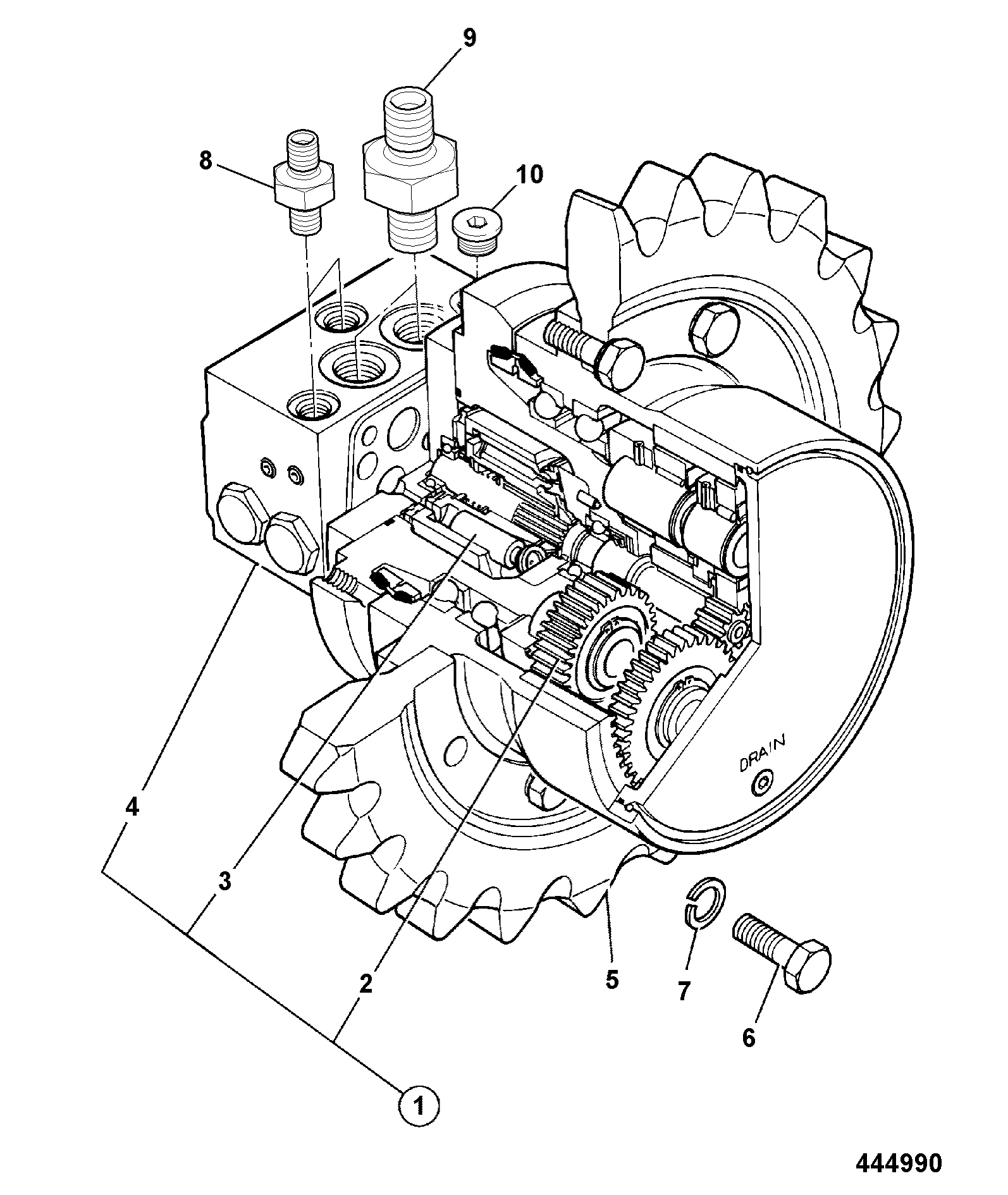

DIAG-F4-3-1-397918 F4-3-1 GEARBOX, TRACK ASSEMBLY
View Diagram
