Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP,STAY VALVE 75546-61200 Discontinued | 1 | $289.46 | |||
| 020 | BOLT, HEX3/8X1-2 75599-02320 | 1 | $1.47 | |||
| 030 | NUT 75599-31023 0Y204-50060 | 1 | $4.15 | |||
| 040 | Plated Lock Washer 60009-60602 75599-33013 | 1 | $0.31 | |||
| 050 | VALVE, CONTROL ( 75532-61010 75532-62010 | 1 | $2,913.11 | |||
| 060 | Bolt 75599-01115 | 1 | $10.13 | |||
| 070 | 1/4 Lock Washer E7194-44710 75599-33011 | 1 | $0.15 | |||
| 080 | ASSY ADAPTER 75580-61810 75580-61800 | 1 | $4.99 | |||
| 090 | O-Ring Seal for Hydraulic Control Valves and Oil Lines 75540-61821 75540-61820 Discontinued | 1 | $0.71 | |||
| 100 | ASSY ELBOW2, AD 75560-61960 75560-61950 | 1 | $8.64 | |||
| 120 | ADAPTOR 2, ASSY 75532-61810 75532-61800 | 1 | $5.26 | |||
| 140 | THROTTLE 75546-61860 | 1 | $8.35 | |||
| 145 | ASSY PLUG, ORIFI 75595-63400 75595-63402 | 1 | $9.11 | |||
| 150 | 1/4-Inch Nipple Fitting (HNV1) 7J612-66220 7J612-66223 | 1 | $14.81 | |||
| 160 | CAP, DUST 1/4" 7 75536-66432 75536-66430 Discontinued | 1 | $1.84 | |||
| 170 | LEVER 75532-62110 | 1 | $101.69 | |||
| 180 | Control Lever and Valve Bushing 75540-62140 | 1 | $9.83 | |||
| 190 | SAE Flat Washer 75599-32017 | 1 | $1.35 | |||
| 200 | CIR CLIP, EXTERN 75599-41522 0Y462-50100 | 1 | $0.80 | |||
| 210 | ROD 75536-62160 75536-62162 | 1 | $40.21 | |||
| 220 | Rod End Joint (Rod End Bearing) 75532-62260 7K530-71180 | 1 | $16.40 | |||
| 230 | HEX,NUT(5/16-24U 75599-31042 | 1 | $0.51 | |||
| 240 | Control Lever Pin 75540-62190 K2C51-62190 | 1 | $12.60 | |||
| 250 | WASHER, SAE 75599-32009 | 1 | $0.14 | |||
| 260 | Cotter Pin (Pin, Cotter) 75599-53110 75599-53111 | 1 | $0.22 | |||
| 270 | LEVER, CONTROL 75532-62210 75532-62212 | 1 | $222.78 | |||
| 280 | GRIP,LEVER 31355-82520 31355-82522 | 1 | $20.10 | |||
| 290 | PIN 75599-51540 | 1 | $7.12 | |||
| 300 | SAE Flat Washer 60009-60704 75599-32015 | 1 | $4.29 | |||
| 310 | Pin for Control Lever, Gauge Wheel, and Hitch Assemblies 75599-53173 | 1 | $0.30 | |||
| 320 | replaces #75536-62280 ROD 2 75536-62280 75536-62282 | 1 | $47.64 | |||
| 330 | Plain (Flat) Washer 60009-60701 75599-32012 | 1 | $0.14 | |||
| 340 | Plated Cotter Pin (Cotter Key) 75599-53152 75599-52115 | 1 | $0.30 | |||
| 380 | COVER 75536-62310 | 1 | $210.25 | |||
| 390 | Hex Head Bolt, 5/16 x 1 Inch 60009-60022 75599-01215 | 1 | $0.51 | |||
| 400 | Lock Washer 60009-60601 75599-33012 | 1 | $0.27 | |||
| 410 | ASSY LIMITER 75540-62400 75540-62402 | 1 | $448.59 | |||
| 420 | Hex Bolt 75599-01212 | 1 | $0.51 | |||
| 450 | CUSHION 1, RUBBE 75540-62450 Discontinued | 1 | $0.30 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-
DIAG-I00401-93447 I00401 CONTROL VALVE [LB400]
View Diagram -

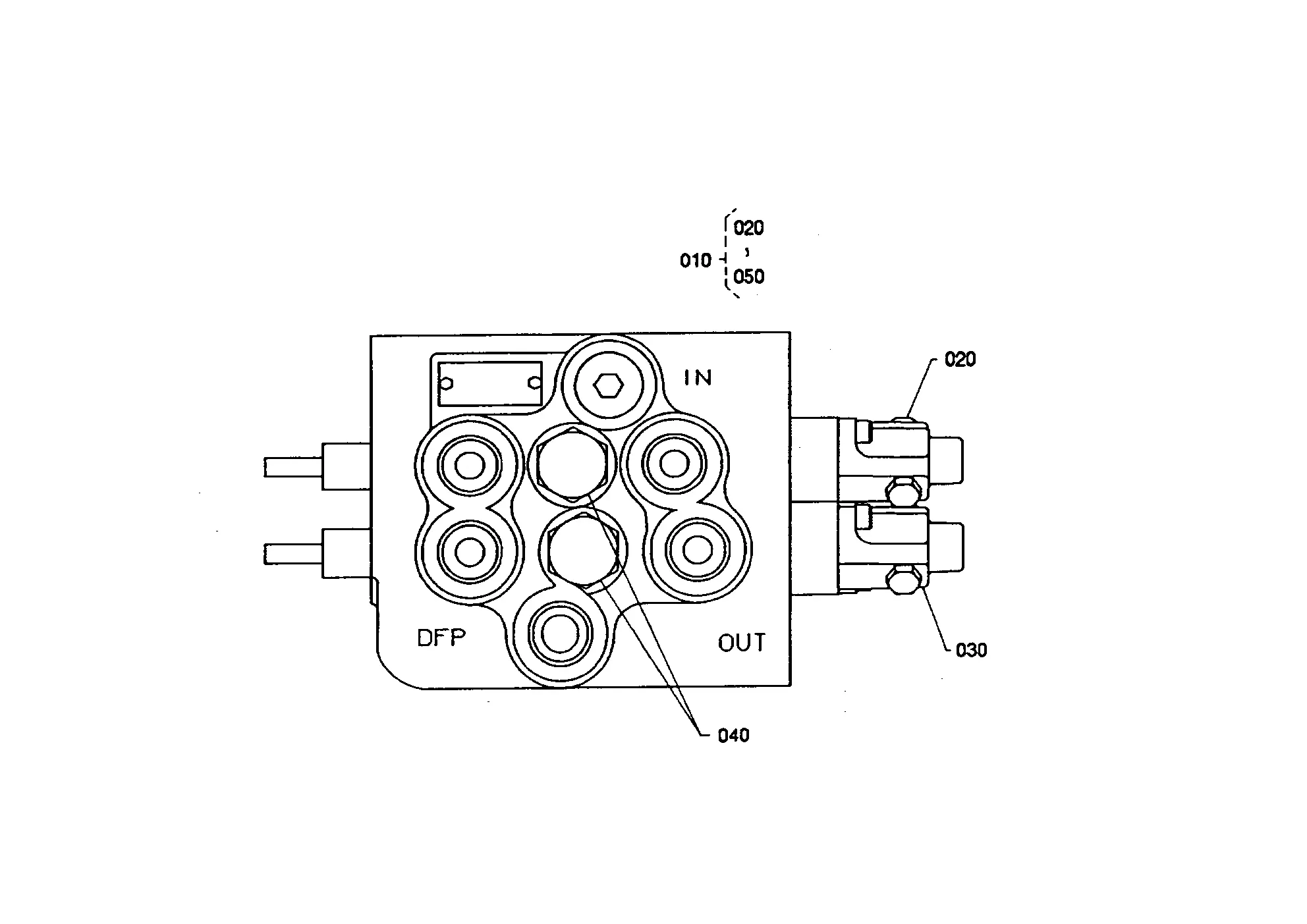

DIAG-I00501-93447 I00501 CONTROL VALVE [COMPONENT PARTS]
View Diagram -

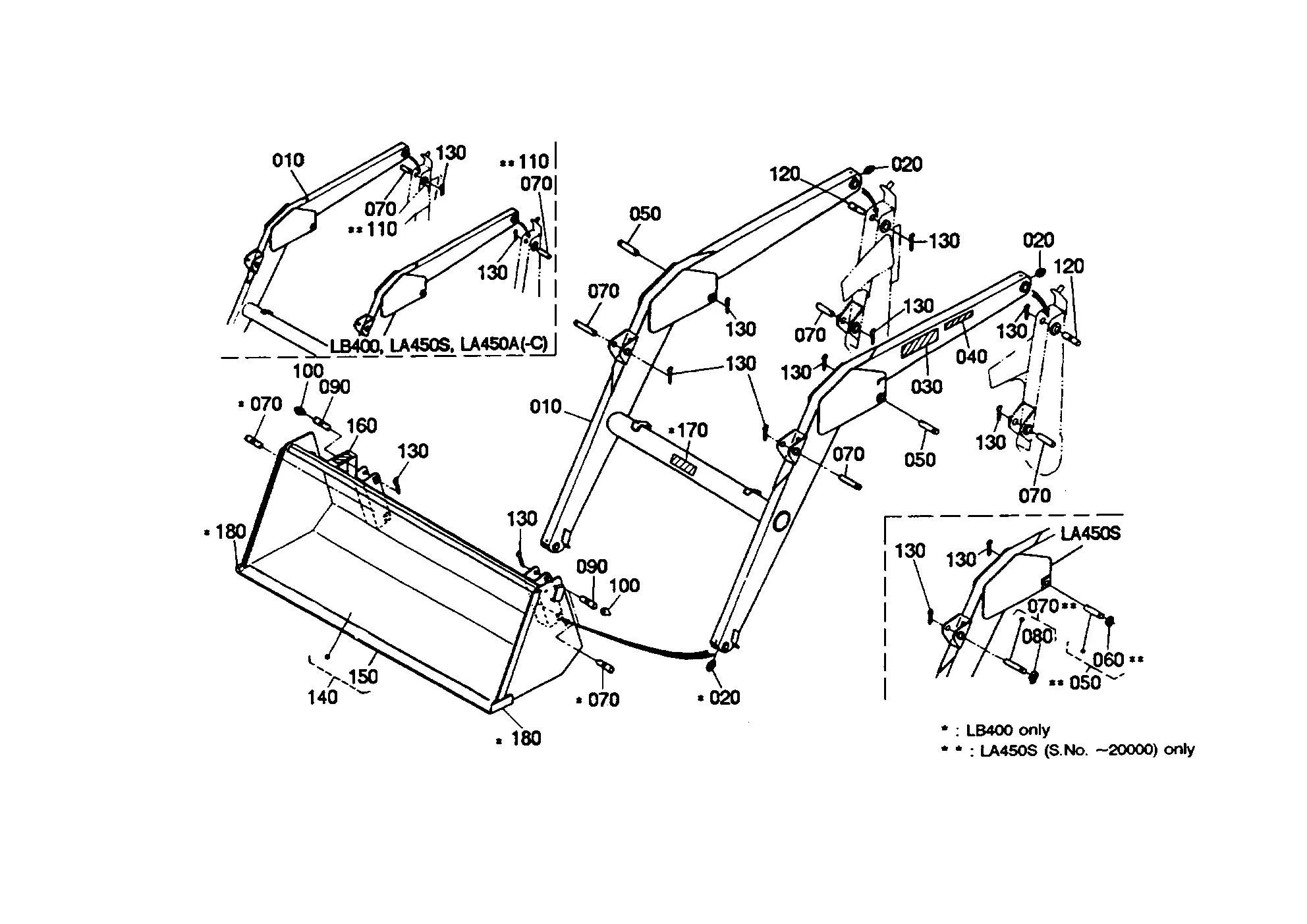

DIAG-I00300-93447 I00300 BOOM
View Diagram
