Scroll to zoom Click a part # to view details

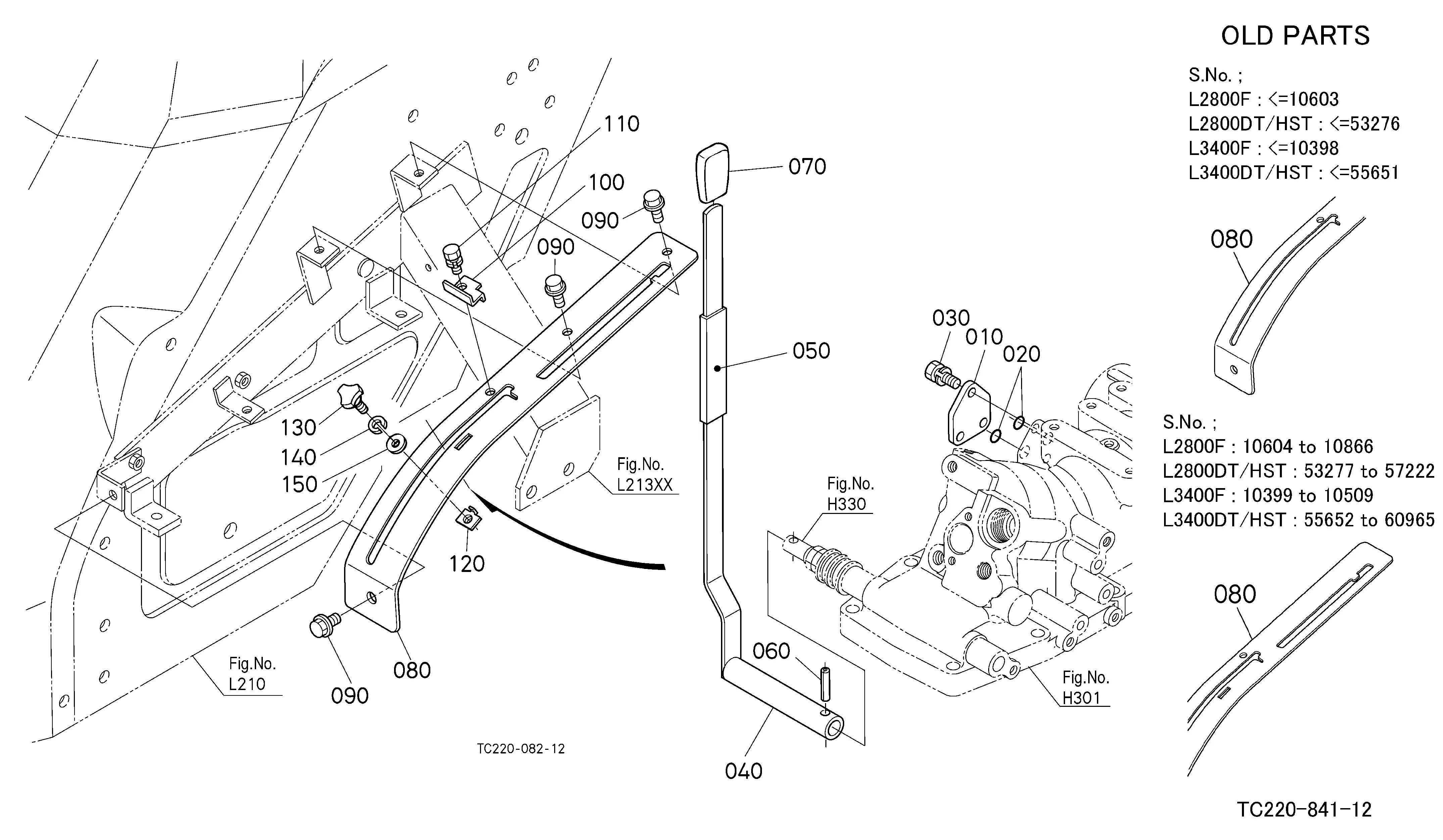

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY VALVE, CONT 31351-39604 YR908-00102 | 1 | $804.53 | |||
| 030 | SPRING YT527-20130 | 1 | $7.50 | |||
| 040 | HOLDER, SPRING 31351-39640 YT527-20140 | 1 | $19.04 | |||
| 050 | BOLT, HEX-SOC-HD 01311-10814 | 1 | $3.59 | |||
| 060 | POPPET 31351-39150 YT161-22250 | 1 | $65.77 | |||
| 070 | SPRING 67531-38470 YT104-00750 | 1 | $23.05 | |||
| 080 | PLUG YT527-20150 | 1 | $46.96 | |||
| 090 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 100 | POPPET 31351-39670 YT527-20170 | 1 | $108.50 | |||
| 110 | SPRING 31351-39680 YT527-20180 | 1 | $9.48 | |||
| 120 | O-Ring Seal for Engine and Hydraulic Components 04815-00160 04817-00160 | 1 | $2.01 | |||
| 130 | PLATE YT527-20160 | 1 | $70.14 | |||
| 140 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 150 | POPPET YR730-20210 YR730-20213 | 1 | $32.44 | |||
| 160 | SPRING 66416-36850 YT509-00140 | 1 | $8.38 | |||
| 170 | PLUG (POPPET, 1) YR908-00210 | 1 | $26.70 | |||
| 180 | O-Ring Seal 04810-00120 04817-00120 | 1 | $2.50 | |||
| 190 | PLUG 06331-35010 | 1 | $3.15 | |||
| 200 | SLEEVE YR730-20250 | 1 | $29.56 | |||
| 210 | O RING 04817-05120 | 1 | $1.51 | |||
| 220 | O RING 04817-05110 | 1 | $1.51 | |||
| 230 | POPPET YR730-20260 YR730-20264 | 1 | $56.50 | |||
| 240 | O RING 04811-00050 04816-00050 | 1 | $1.51 | |||
| 250 | RING, BACKUP 67156-36590 YT161-22280 | 1 | $5.33 | |||
| 260 | SPRING YR730-20270 | 1 | $10.77 | |||
| 270 | HOLDER, SPRING YR730-20410 | 1 | $6.94 | |||
| 280 | CIR-CLIP, EXTERN 04613-00060 04613-50060 | 1 | $0.60 | |||
| 290 | PLUG YR828-00140 Discontinued | 1 | $20.49 | |||
| 300 | PLATE YR908-00310 | 1 | $10.86 | |||
| 310 | SCREW, SET 03650-50622 | 1 | $5.04 | |||
| 320 | Nut Fastener 02013-50060 02014-50060 | 1 | $0.35 | |||
| 330 | Nut Fastener W2336-07200 02114-50080 | 1 | $30.16 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-
DIAG-H41003-85296 H41003 CONTROL VALVE [COMPONENT PARTS] [OLD TYPE]
View Diagram -
DIAG-H44000-85296 H44000 POSITION CONTROL LEVER [OLD TYPE]
View Diagram -
DIAG-H41002-85296 H41002 CONTROL VALVE [COMPONENT PARTS] [OLD TYPE]
View Diagram
