Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | LEVER, SPOOL DRI 31351-37640 | 1 | $23.25 | |||
| 020 | ARM,CONTROL TA140-37650 | 1 | $57.13 | |||
| 030 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 040 | PLATE, SET 31351-37660 | 1 | $3.36 | |||
| 050 | Bolt (Fastener) 01120-00830 01123-50830 | 1 | $1.13 | |||
| 060 | Plain Washer (Flat Washer) 04013-50140 | 1 | $0.29 | |||
| 070 | SPRING, PLATE 34260-36880 | 1 | $3.44 | |||
| 080 | NUT 02174-50140 | 1 | $0.90 | |||
| 090 | NUT 02172-60140 02172-50140 | 1 | $0.67 | |||
| 100 | SHAFT, LEVER 31351-37750 | 1 | $46.08 | |||
| 110 | O-Ring Seal 04811-00120 04816-00120 | 1 | $1.93 | |||
| 120 | PLATE, SET 38240-36890 | 1 | $5.02 | |||
| 130 | Bolt 01123-50816 | 1 | $1.21 | |||
| 140 | LEVER,FEED BACK TC403-37760 | 1 | $52.15 | |||
| 150 | PIN, SPRING 05411-00525 | 1 | $0.77 | |||
| 160 | ROD,FEED BACK TC420-37770 | 1 | $26.70 | |||
| 170 | LINK,CONTROL TC403-37780 | 1 | $24.98 | |||
| 180 | Nut Fastener W2336-07200 02114-50080 | 1 | $30.16 | |||
| 190 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.14 | |||
| 200 | Spring Pin 05511-00218 05511-50218 | 1 | $0.36 | |||
| 230 | SPOOL 1 HOLDER 67531-38280 | 1 | $17.28 | |||
| 240 | JOINT, SPOOL 2 37150-36420 | 1 | $15.63 | |||
| 250 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.43 | |||
| 260 | CIR-CLIP, EXTERN 04613-00060 04613-50060 | 1 | $0.60 | |||
| 290 | SPACER, POSITION TA140-36900 | 1 | $15.86 | |||
| 300 | PIN, SPRING 05411-00528 | 1 | $1.31 | |||
| 310 | PLATE,FRICTION TA140-36920 | 1 | $17.22 | |||
| 320 | SPACER,POSITION TA140-36930 | 1 | $13.56 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-
DIAG-H32000-93304 H32000 LIFT ARM
View Diagram -
DIAG-H40500-93304 H40500 CONTROL VALVE
View Diagram -

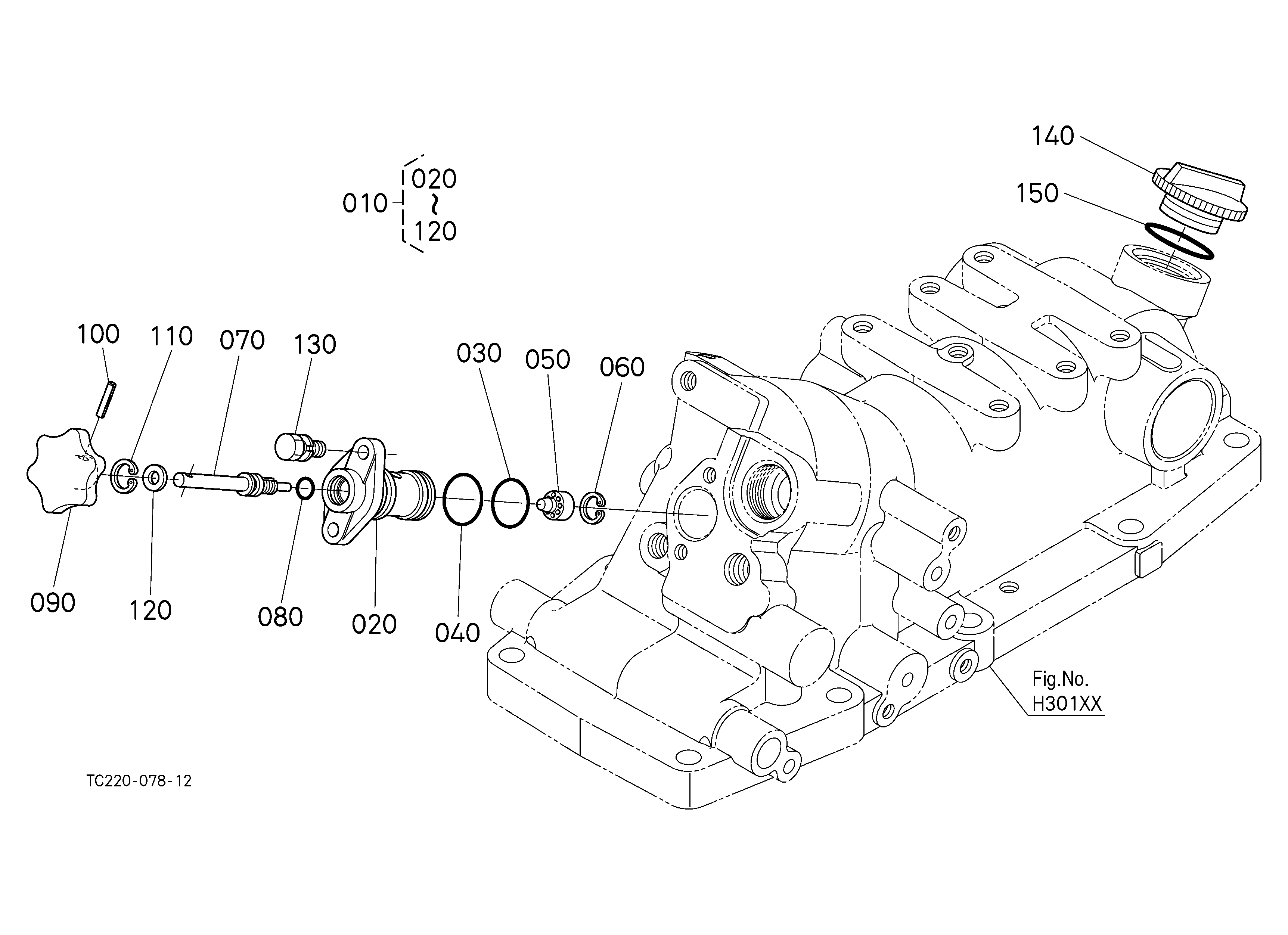

DIAG-H30302-93304 H30302 CYLINDER FRONT COVER [NEW]
View Diagram
