Kubota M105SDSL H11002 STEERING HANDLE Parts Diagram

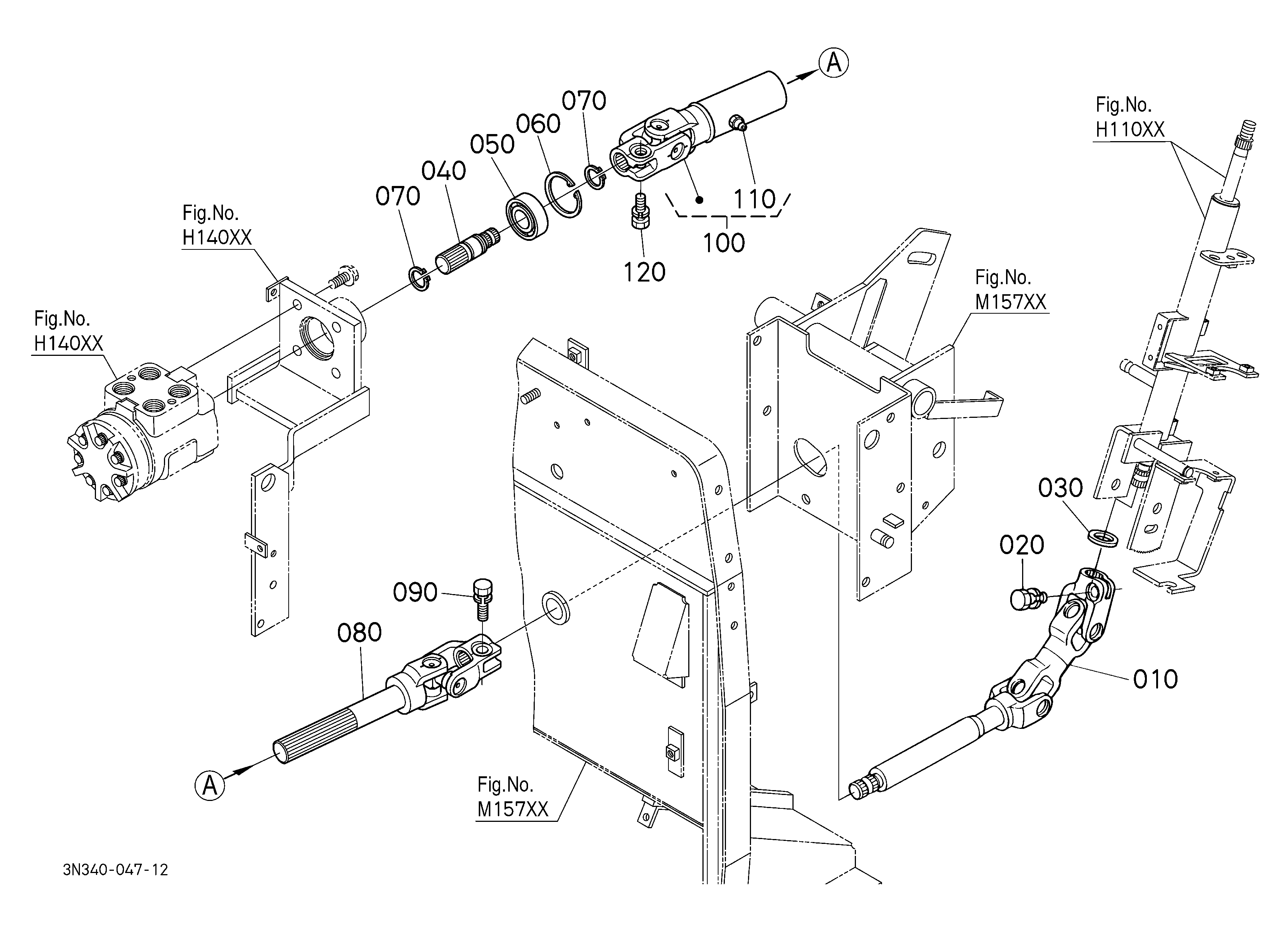

Exploded-view parts diagram "H11002 STEERING HANDLE" for the Kubota M105SDSL. 26 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 ASSY POST, STEER 3N330-63342 1 AVAILABLE TO ORDER $543.58
020 SHAFT, JOINT 3N330-63370 1 AVAILABLE TO ORDER $108.14
030 BUSH, POST 37410-41340 1 2 IN STOCK $8.57
040 SPRING 3N340-43750 1 AVAILABLE TO ORDER $27.89
050 BOLT, STEERING P 34070-43670 1 AVAILABLE TO ORDER $5.89
060 BRACKET (TILT) 3N340-43702 1 AVAILABLE TO ORDER $54.62
070 GASKET 04714-00120 1 10 IN STOCK $1.07
080 Nut Fastener W2336-07200 02114-50080 1 15 IN STOCK $0.60
090 Spring Washer 04512-50080 1 15 IN STOCK $0.87
100 LOCK T1060-43640 1 AVAILABLE TO ORDER $35.39
110 LEVER, TILT 3N340-43710 1 AVAILABLE TO ORDER $95.84
120 ASSY PEDAL (TILT 3N350-43720 1 AVAILABLE TO ORDER $90.25
130 Lever Pivot Bushing 32530-36810 08511-01220 1 AVAILABLE TO ORDER $8.57
140 SHAFT (PEDAL) 3N340-43730 1 AVAILABLE TO ORDER $30.02
150 Flange Bolt 01754-50812 1 14 IN STOCK $3.93
160 SPRING (PEDAL) 3N340-47140 1 AVAILABLE TO ORDER $23.34
170 RUBBER PEDAL 36919-62320 1 AVAILABLE TO ORDER $2.17
180 BOLT, FLANGE 34070-43110 1 AVAILABLE TO ORDER $16.33
190 BOLT W2336-05440 TA049-18870 1 AVAILABLE TO ORDER $0.80
200 HANDLE, STEERING 68843-34600 1 AVAILABLE TO ORDER $401.90
210 CAP, HANDLE 68843-34620 1 AVAILABLE TO ORDER $34.62
220 Spring Washer (Lock Washer) M12 04512-50120 1 5 IN STOCK $2.57
230 Nut Fastener 70030-35018 02176-50120 1 15 IN STOCK $1.07
240 KIT STEERING COV 3N300-97470 1 AVAILABLE TO ORDER $60.98
250 LABEL, SHUTTLE CAUTION 3F241-98570 3F240-98570 1 AVAILABLE TO ORDER $8.28
260 KIT COVER, STEE 3N301-97470 1 AVAILABLE TO ORDER $51.29

Showing 1 to 26 of 26 parts
