Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | POST(STEERING) K7821-41310 | 1 | $71.66 | |||
| 015 | COVER(HARNESS,EP K7821-41550 | 1 | $3.77 | |||
| 017 | Push Rivet Fastener K1211-84560 | 1 | $2.93 | |||
| 020 | BOLT(STEERING,1) K7811-41722 | 1 | $30.18 | |||
| 030 | BOLT(STEERING,2) K7811-41732 | 1 | $33.84 | |||
| 040 | BUSHING(1509) K7811-41750 | 1 | $4.48 | |||
| 050 | SLEEVE,TILT,LH K7811-41770 | 1 | $10.56 | |||
| 060 | M10 Heavy-Duty Washer K7311-21320 | 1 | $4.85 | |||
| 070 | Nut Fastener 02574-50100 | 1 | $4.85 | |||
| 080 | FRAME,COMP(OP,UP K7821-42700 | 1 | $113.69 | |||
| 090 | Bolt Fastener 01754-50820 | 1 | $4.70 | |||
| 100 | FRAME,COMP(OP,LO K7821-42650 | 1 | $83.79 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-

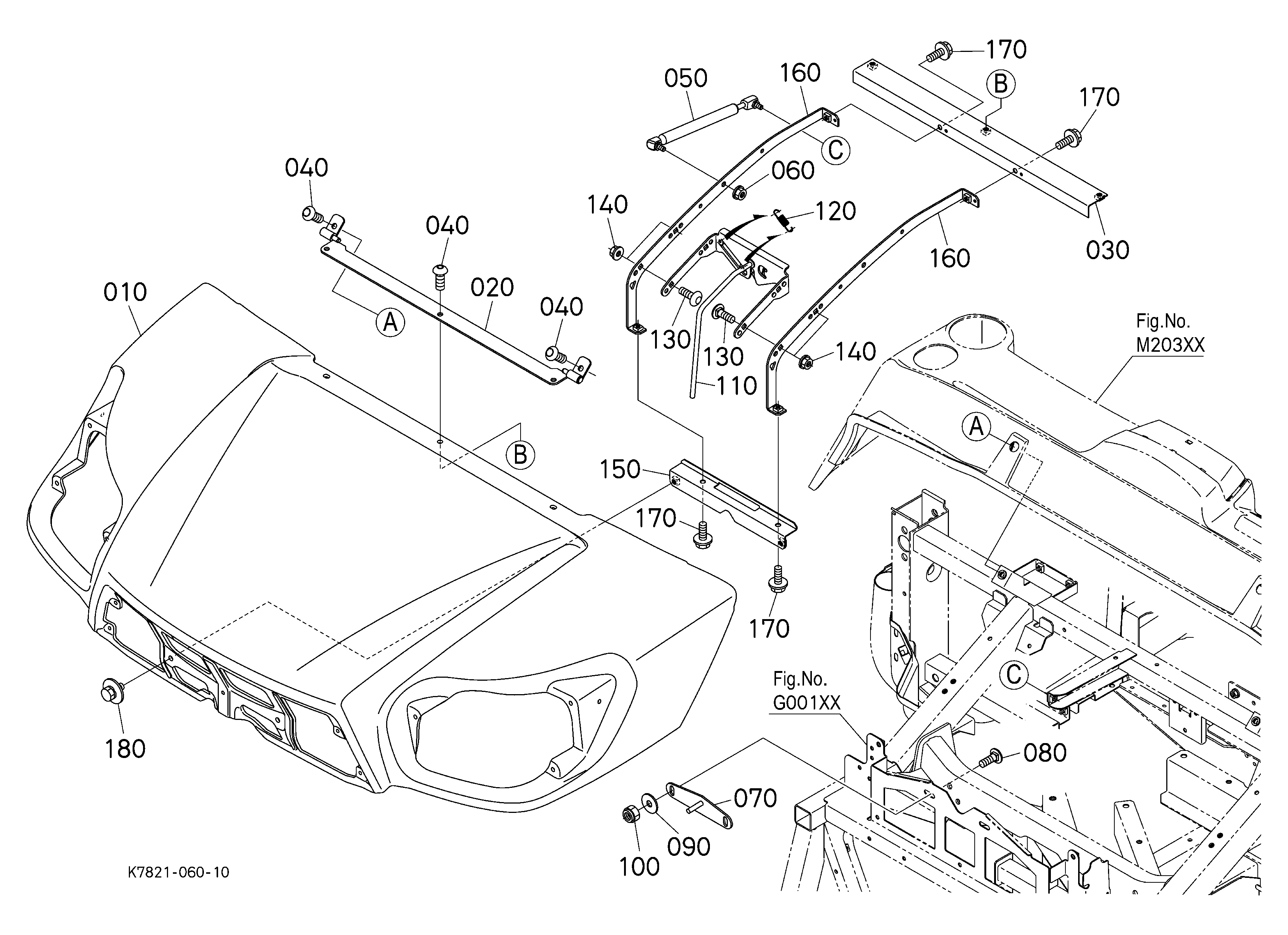

DIAG-H10503-194831 H10503 STEERING POST [2023 MODEL]
View Diagram -
DIAG-M10500-194831 M10500 HOOD (BONNET)
View Diagram -

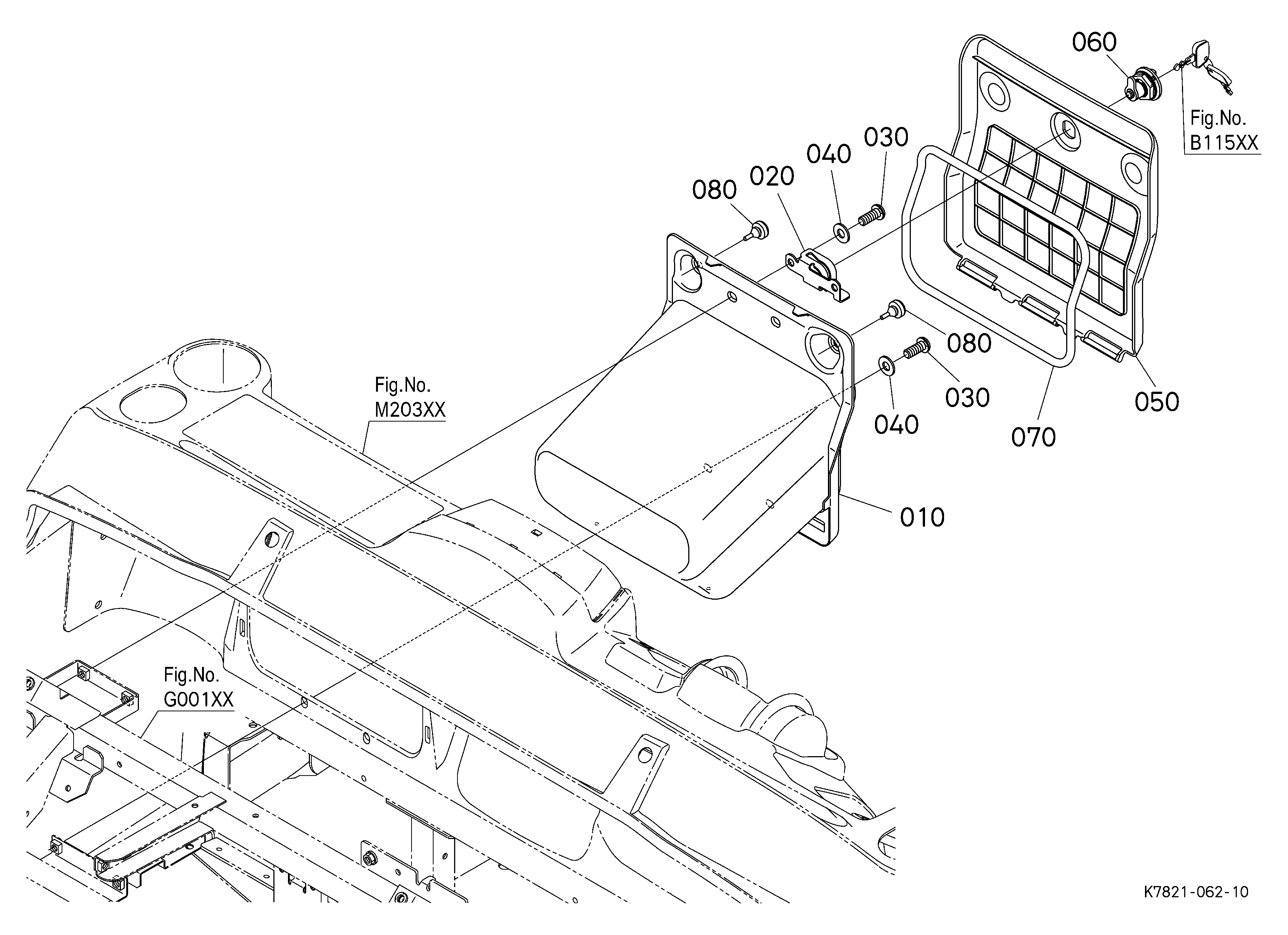

DIAG-M12502-194831 M12502 GLOVE BOX
View Diagram
