Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | POST(STEERING) K7811-41310 K7811-41312 | 1 | $94.41 | |||
| 020 | BOLT(STEERING,1) K7811-41722 | 1 | $30.18 | |||
| 030 | BOLT(STEERING,2) K7811-41732 | 1 | $33.84 | |||
| 040 | BUSHING(1509) K7811-41750 | 1 | $4.48 | |||
| 050 | SLEEVE,TILT,LH K7811-41770 | 1 | $10.56 | |||
| 060 | M10 Heavy-Duty Washer K7311-21320 | 1 | $4.85 | |||
| 070 | Nut Fastener 02574-50100 | 1 | $4.85 | |||
| 080 | FRAME,COMP(O.P) K7811-42603 | 1 | $307.46 | |||
| 090 | Bolt Fastener 01754-50820 | 1 | $4.70 | |||
| 100 | COMP FRAME,OP,LO K7811-42653 | 1 | $108.74 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-

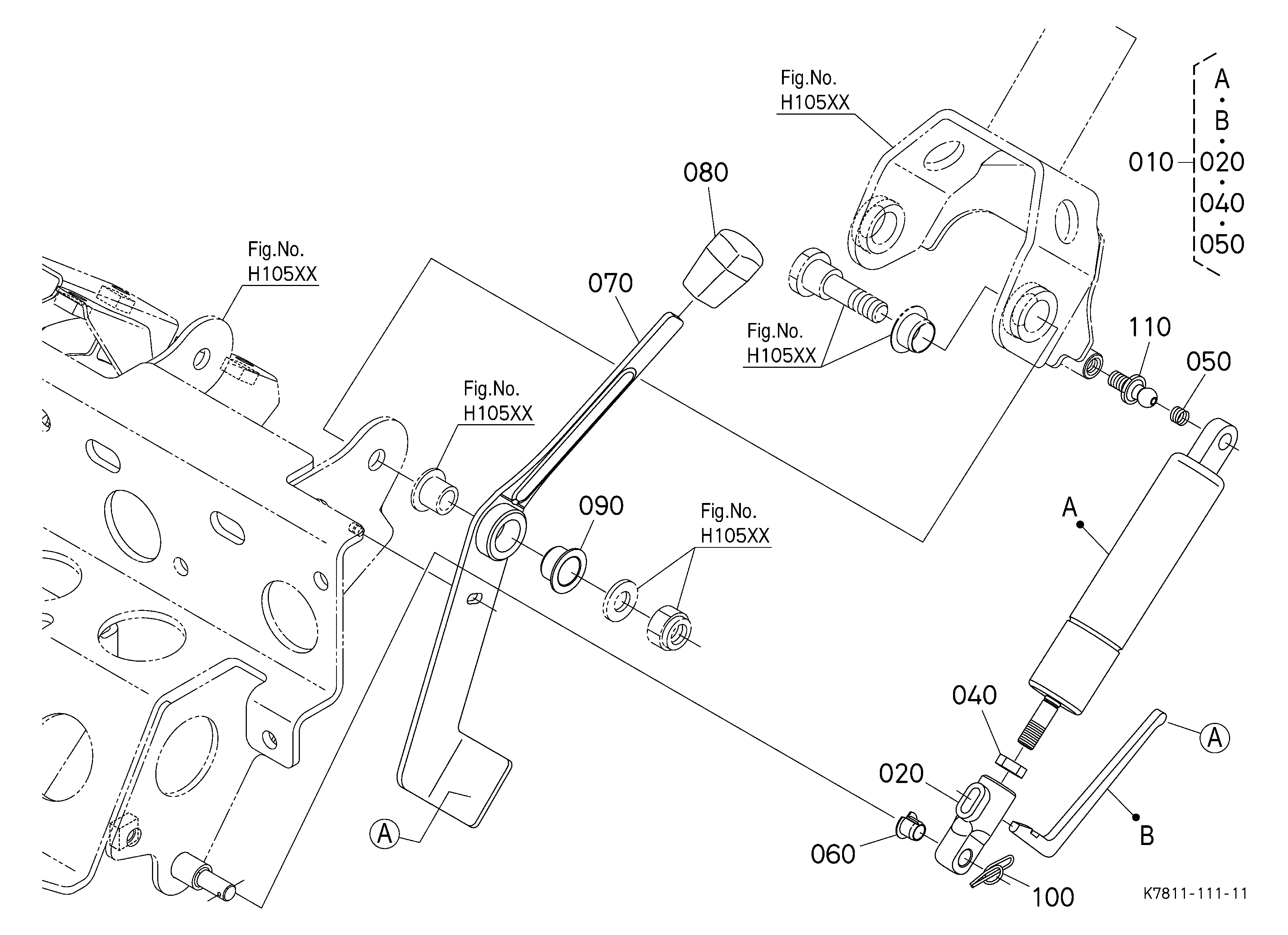

DIAG-H10800-194699 H10800 TILT LEVER
View Diagram -

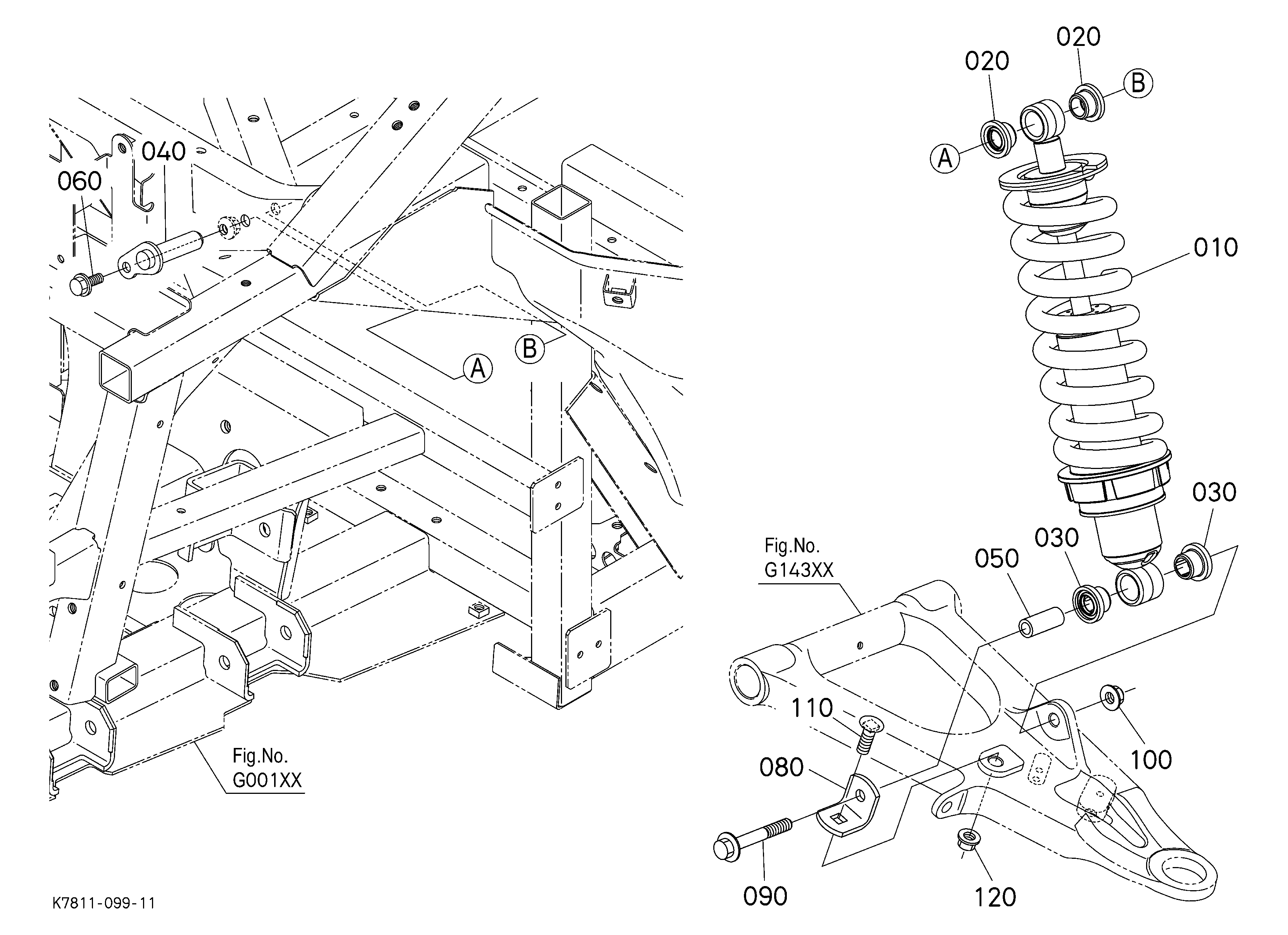

DIAG-G13100-194699 G13100 FRONT SUSPENSION (LEFT)
View Diagram -

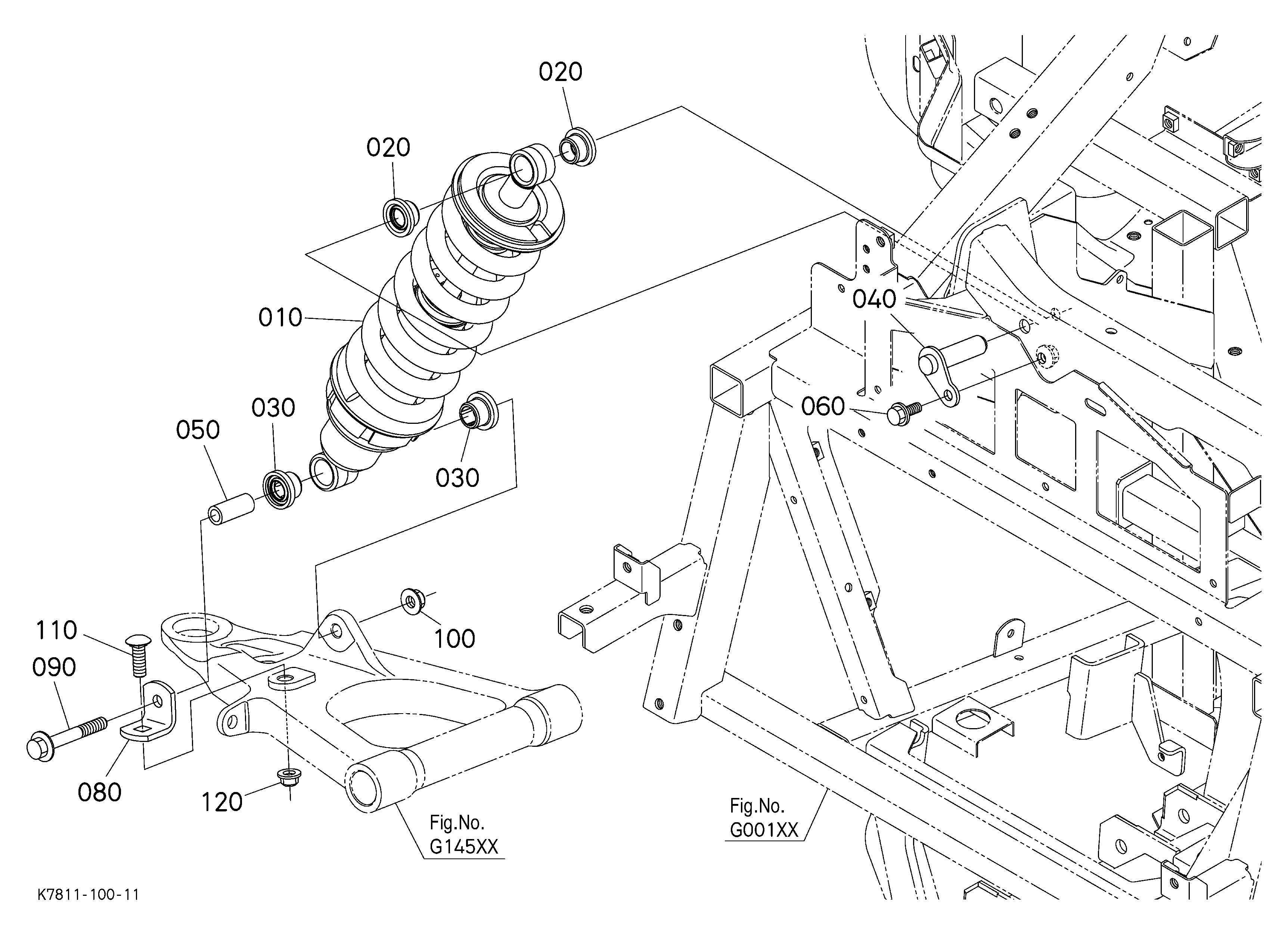

DIAG-G13200-194699 G13200 FRONT SUSPENSION (RIGHT)
View Diagram
