| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

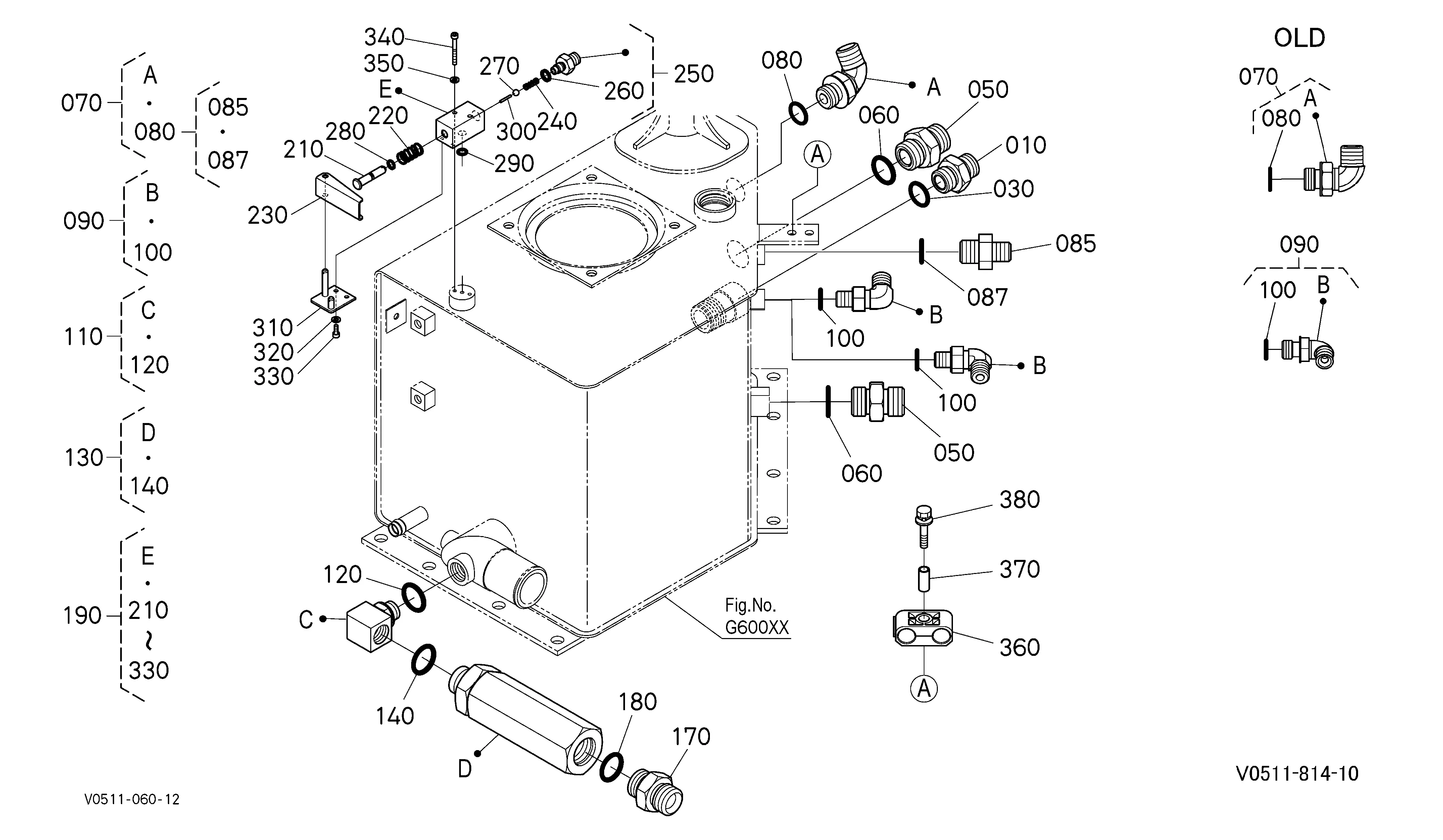

| 010 | OIL TANK V0511-65116 V0511-65117 | 1 | $1,886.88 | |||
| 020 | Bolt 01135-61225 01135-51225 | 1 | $4.59 | |||
| 030 | COVER, TANK V0511-65132 | 1 | $231.65 | |||
| 040 | O RING V0511-65210 04811-07400 | 1 | $2.89 | |||
| 050 | Bolt 01135-51020 | 1 | $1.99 | |||
| 060 | Suction Filter 68773-62210 | 1 | $95.77 | |||
| 070 | Hydraulic Return Filter (Oil Tank) V0511-65150 | 1 | $75.70 | |||
| 080 | PLATE V0511-65180 | 1 | $21.96 | |||
| 090 | Bolt with Washer 01125-50820 | 1 | $1.37 | |||
| 100 | PLUG V0511-65170 | 1 | $7.62 | |||
| 110 | O-Ring Seal 04817-00290 | 1 | $3.15 | |||
| 120 | GAUGE, OIL TANK V0511-65290 | 1 | $258.88 | |||
| 130 | PLUG, OIL FILLER RD809-62292 | 1 | $42.13 | |||
| 140 | O-Ring 04817-50300 | 1 | $3.15 | |||
| 150 | Temperature Sensor 5H601-41940 | 1 | $97.27 | |||
| 160 | Packing Gasket 04724-00120 | 1 | $1.07 | |||
| 180 | BASE V0511-65220 | 1 | $158.88 | |||
| 190 | Oil Tank Breather Filter RD411-62150 | 1 | $41.25 | |||
| 200 | WASHER RD411-62290 | 1 | $45.20 | |||
| 210 | Seal Washer 04717-00810 | 1 | $3.15 | |||
| 220 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 230 | HOSE V0511-65230 V0511-65232 | 1 | $21.75 | |||
| 240 | CLAMP, HOSE 09318-88180 | 1 | $2.41 | |||
| 250 | TUBE, BREATHER V0511-65242 | 1 | $13.08 | |||
| 260 | Equipment Bolt for Seat, ROPS, and Battery Components 01135-51025 | 1 | $2.17 | |||
| 300 | HOSE V0511-65250 | 1 | $141.14 | |||
| 310 | PLUG V0511-65190 V0651-65190 | 1 | $21.09 | |||
| 320 | CLAMP, HOSE (15- 68841-63210 R1401-63210 | 1 | $8.65 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-

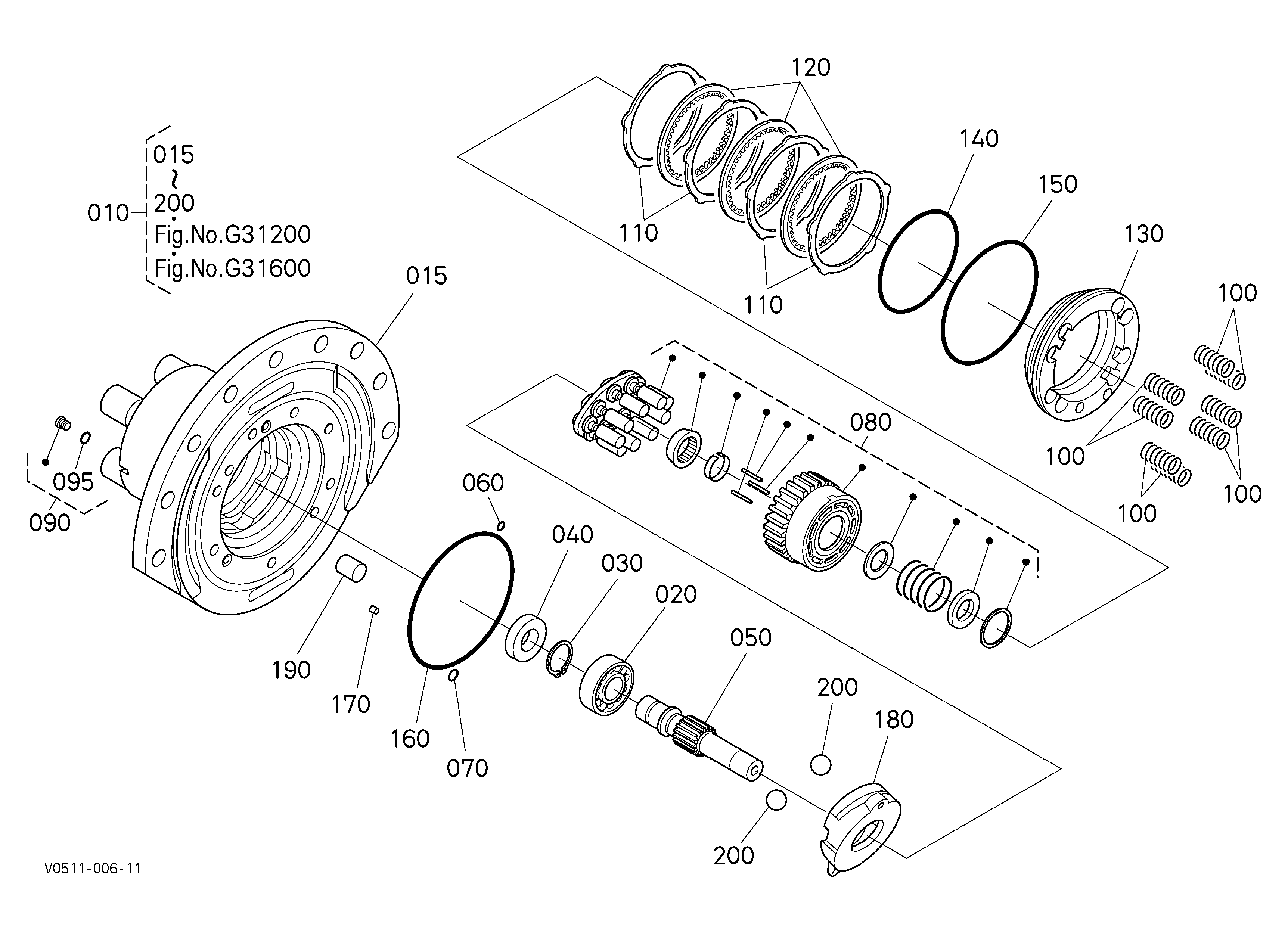

DIAG-G31600-86268 G31600 HST MOTOR (3) (COMPONENT PARTS)
View Diagram -
DIAG-G60500-86268 G60500 OIL TANK (2)
View Diagram -

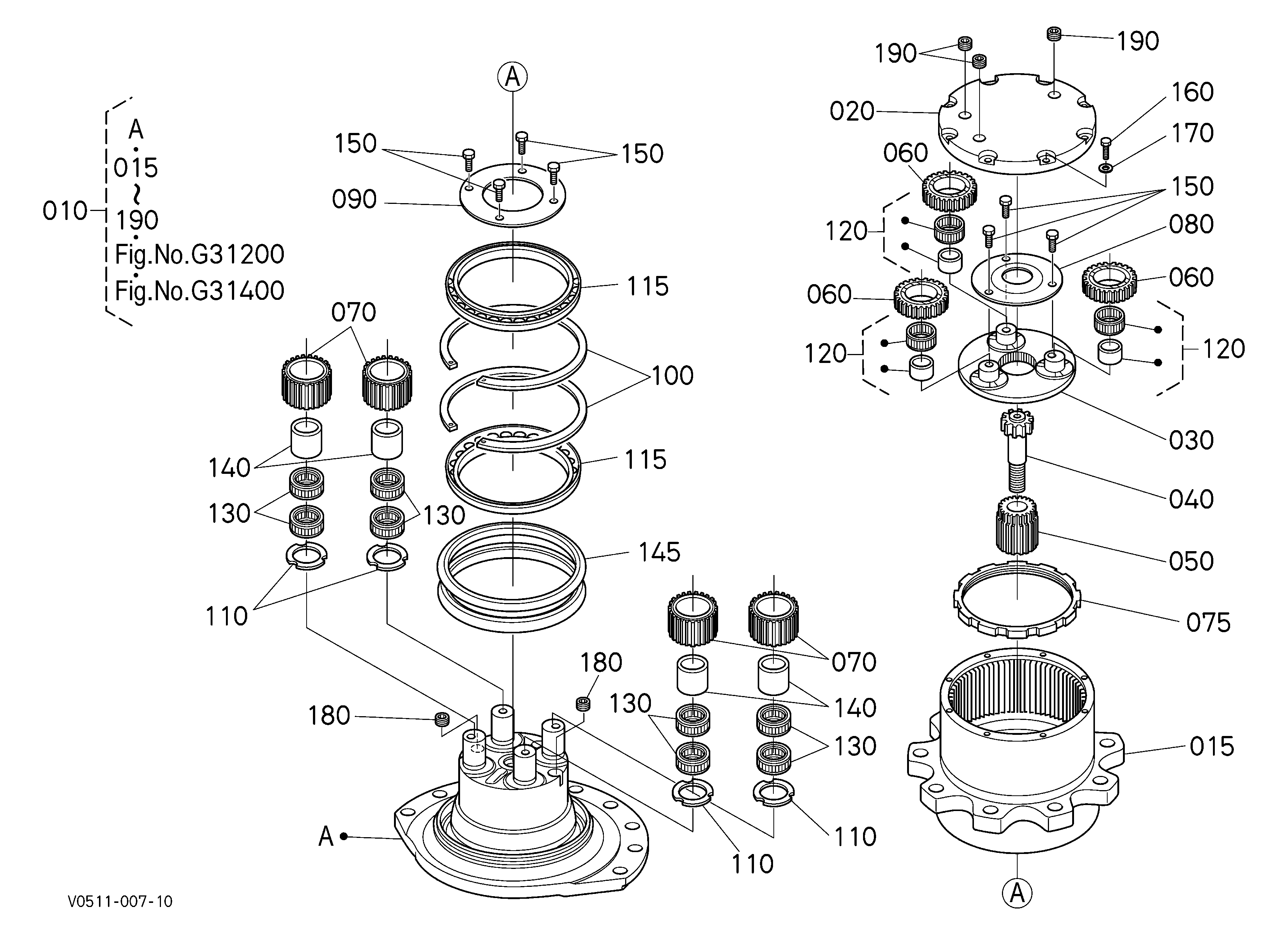

DIAG-G31400-86268 G31400 HST MOTOR (2) (COMPONENT PARTS)
View Diagram
