Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | AXLE,FRONT 3J027-66463 | 1 | $18,323.71 | |||
| 010 | BOLT(000.3428397 M1) 3J080-32930 | 1 | $6.56 | |||
| 020 | RING(KINGPIN,LOWER) 3J080-32940 | 1 | $77.29 | |||
| 030 | SEAL(000.245804.A) 3J080-32950 | 1 | $38.99 | |||
| 040 | KINGPIN(UPPER,733) 3J080-32970 | 1 | $240.32 | |||
| 050 | BEARING,TAPER RLR(3) 3J080-32980 | 1 | $120.44 | |||
| 060 | SHIM(000.345608) 3J080-32990 | 1 | $10.49 | |||
| 060 | SHIM(000.345609) 3J080-33000 | 1 | $11.43 | |||
| 070 | HOLDER(KINGPIN,733) 3J080-33010 | 1 | $619.77 | |||
| 080 | BOLT(016.03.3717 3J080-33090 | 1 | $2.34 | |||
| 090 | CLAMP,CORD SENSO 3J080-33100 | 1 | $14.65 | |||
| 100 | SENSOR, KIT 733 FRONT AXLE 3J080-33110 3J070-13402 | 1 | $2,402.83 | |||
| 110 | KINGPIN,ASSY(UPPER 733) 3J080-33120 | 1 | $458.35 | |||
| 120 | PIN(SENSOR,733) 3J080-33130 | 1 | $150.20 | |||
| 130 | BOLT(016.04.4370) 3J080-33140 | 1 | $1.41 | |||
| 140 | O-RING(001.05.4316) 3J080-33150 | 1 | $1.22 | |||
| 150 | BOLT(016.04.1997) 3J080-32150 | 1 | $1.42 | |||
| 160 | CLAMP CORD SENSO 3J080-32160 | 1 | $17.89 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-G55508-125487 G55508 WHEEL TURNING ANGLE SENSOR [FRONT AXLE COMPONENT] [WITH FRONT SUSPENSION] [FRONT AXLE:STANDARD TYPE] [NEW]
View Diagram -
DIAG-G55006-125487 G55006 DIFFERENTIAL GEAR SHAFT [FRONT AXLE COMPONENT] [WITH FRONT SUSPENSION] [FRONT AXLE:STANDARD TYPE]
View Diagram -

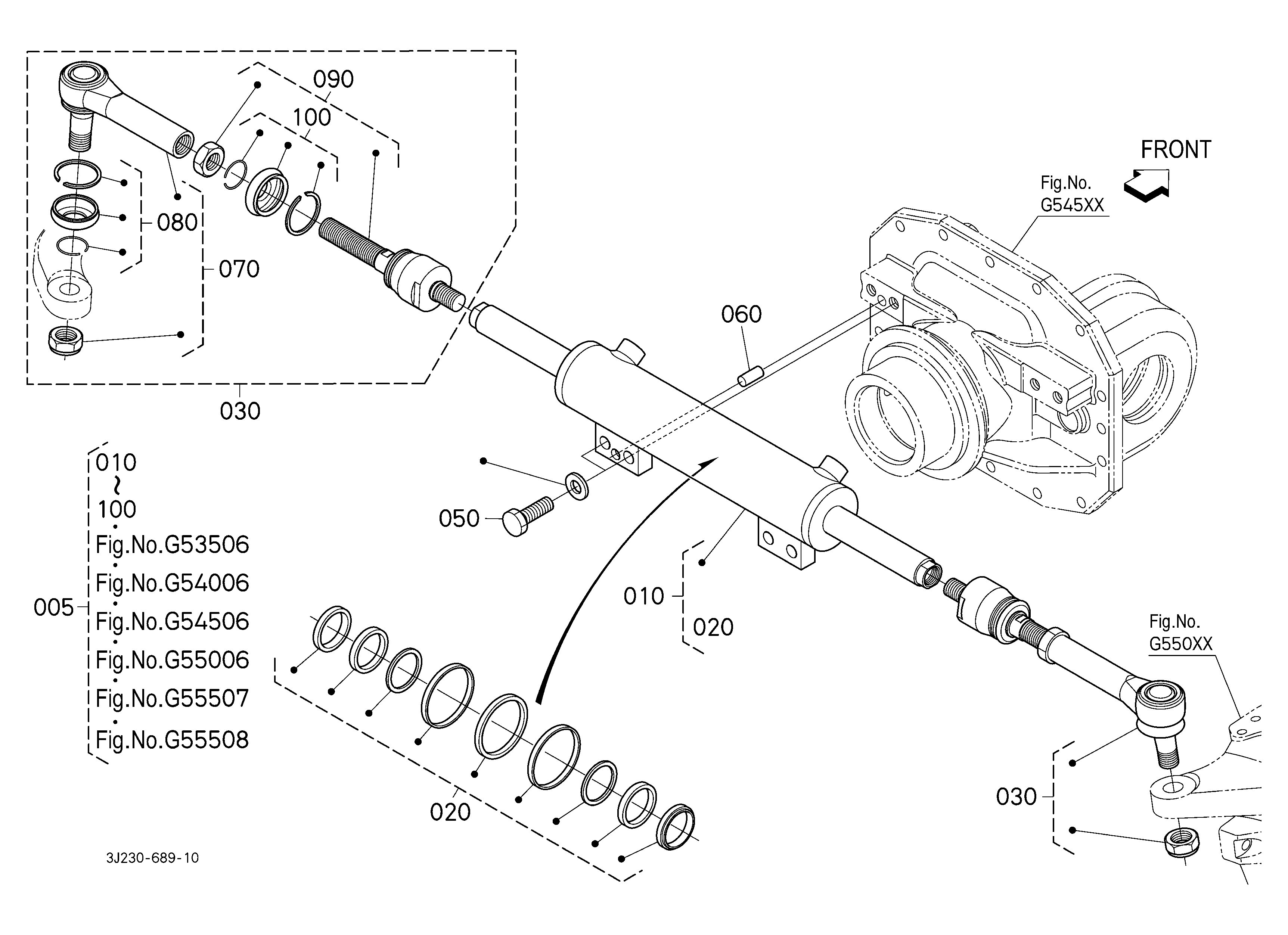

DIAG-G56006-125487 G56006 TIE ROD/STEERING CYLINDER [FRONT AXLE COMPONENT] [WITH FRONT SUSPENSION] [FRONT AXLE:STANDARD TYPE]
View Diagram
