Kubota SVL75-3 G45501 CONTROL VALVE (SPOOL) [COMPONENT PARTS] Parts Diagram

Exploded-view parts diagram "G45501 CONTROL VALVE (SPOOL) [COMPONENT PARTS]" for the Kubota SVL75-3. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 VALVE,CONTROL,AS V0531-63112 1 AVAILABLE TO ORDER $6,203.93
020 SPOOL,ASSY(ARM) V0531-63130 1 AVAILABLE TO ORDER $1,251.77
030 O RING V0511-63140 1 AVAILABLE TO ORDER $39.57
040 COVER B, BOLT V0511-63150 1 AVAILABLE TO ORDER $407.40
050 COVER, A V0511-63160 1 AVAILABLE TO ORDER $262.85
060 SCREW,HEX SOC CAP V0511-63170 1 AVAILABLE TO ORDER $21.11
070 O-Ring Seal 04810-00180 04817-00180 1 42 IN STOCK $2.26
080 SPOOL V0531-63270 1 AVAILABLE TO ORDER $601.94
090 SPOOL V0531-63280 1 AVAILABLE TO ORDER $814.12
100 SPRING V0511-63290 1 AVAILABLE TO ORDER $96.78
110 SPRING V0511-63300 1 AVAILABLE TO ORDER $96.78
120 COVER V0511-63310 1 AVAILABLE TO ORDER $595.74
130 PISTON V0511-63330 1 AVAILABLE TO ORDER $74.38
140 SPOOL,ASSY(BUCKET) V0531-63610 1 AVAILABLE TO ORDER $1,054.69
150 SPOOL,ASSY(SERVI V0531-63620 1 AVAILABLE TO ORDER $1,247.80

Showing 1 to 15 of 15 parts

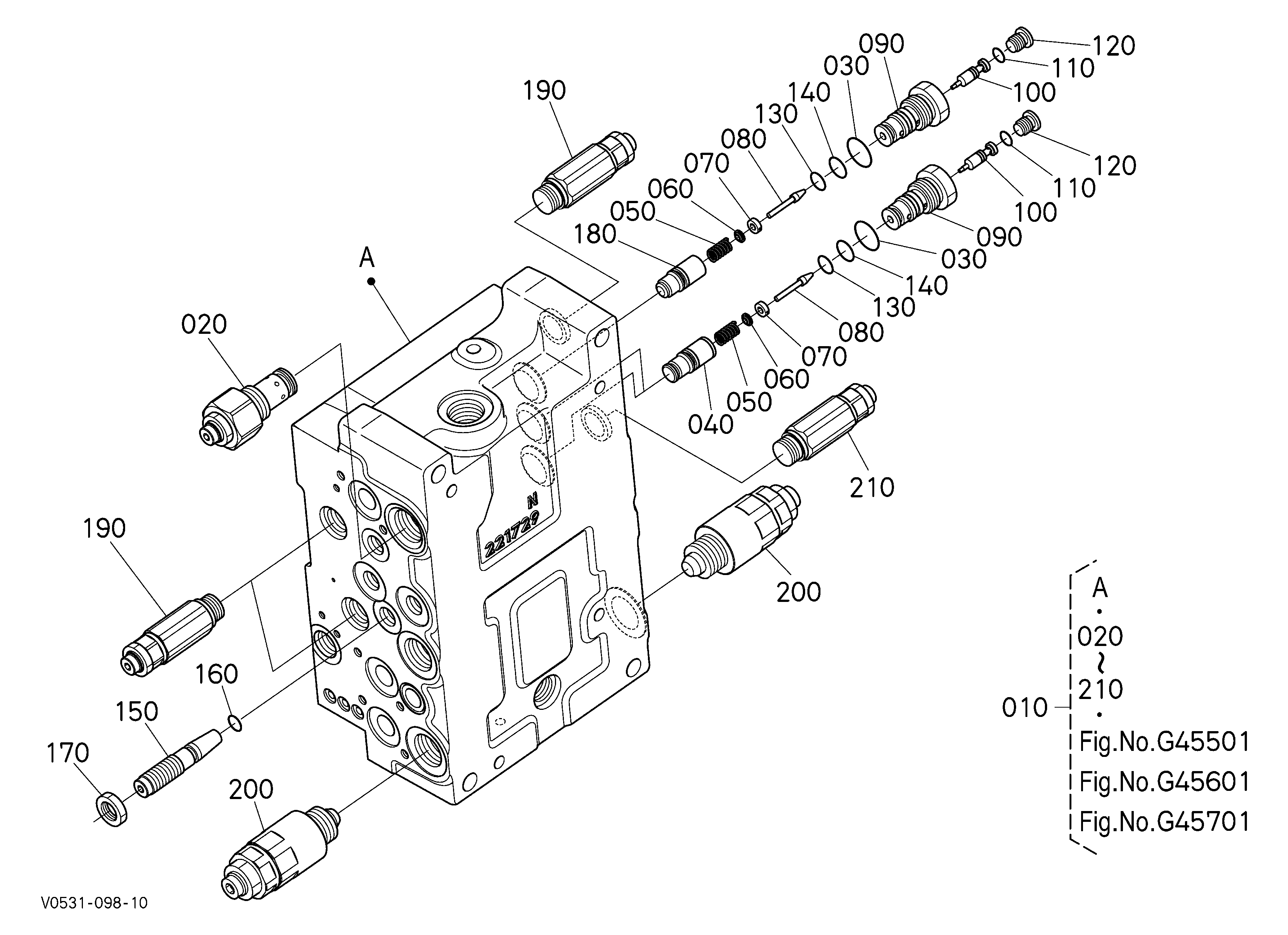

  • DIAG-G45401-194818 G45401 CONTROL VALVE (RELIEF) [COMPONENT PARTS]
