Kubota SVL75-2 G45100 CONTROL VALVE 1 (UNDER) Parts Diagram

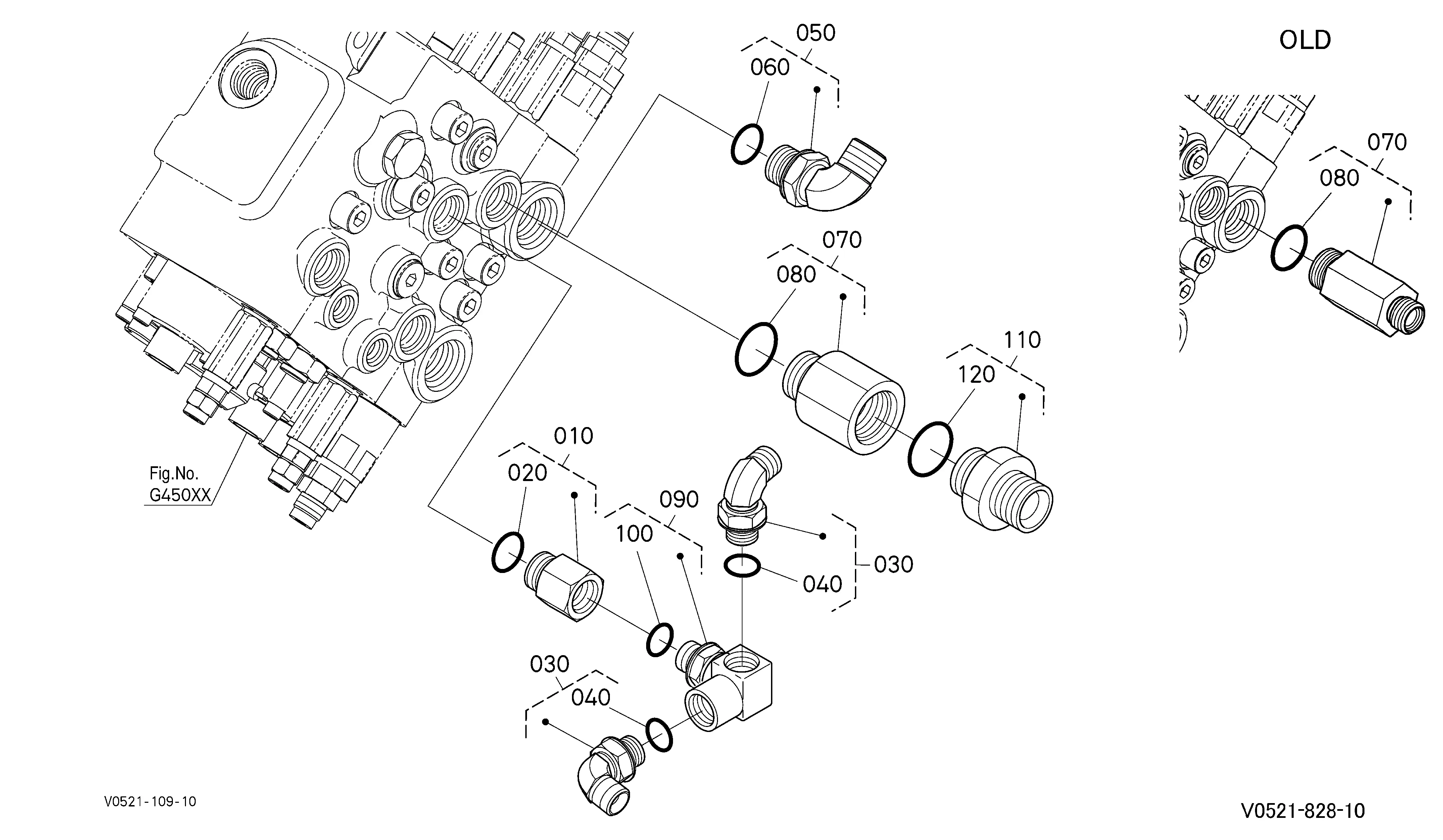

Exploded-view parts diagram "G45100 CONTROL VALVE 1 (UNDER)" for the Kubota SVL75-2 and Kubota SVL75-2C. 6 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | JOINT, PIPE (LGG V0511-68670 | 1 | $45.61 | |||
| 020 | Hydraulic O-Ring Seal 04810-00110 04817-00110 | 1 | $2.50 | |||
| 030 | JOINT,PIPE(S,G2,G2) V0511-68300 V0651-68240 | 1 | $37.79 | |||
| 050 | JOINT RD809-61950 | 1 | $133.21 | |||
| 060 | O-Ring Seal (Hydraulic/Oil Piping) 04817-00240 | 1 | $2.50 | |||
| 070 | JOINT,PIPE MR003-60610 | 1 | $61.53 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-

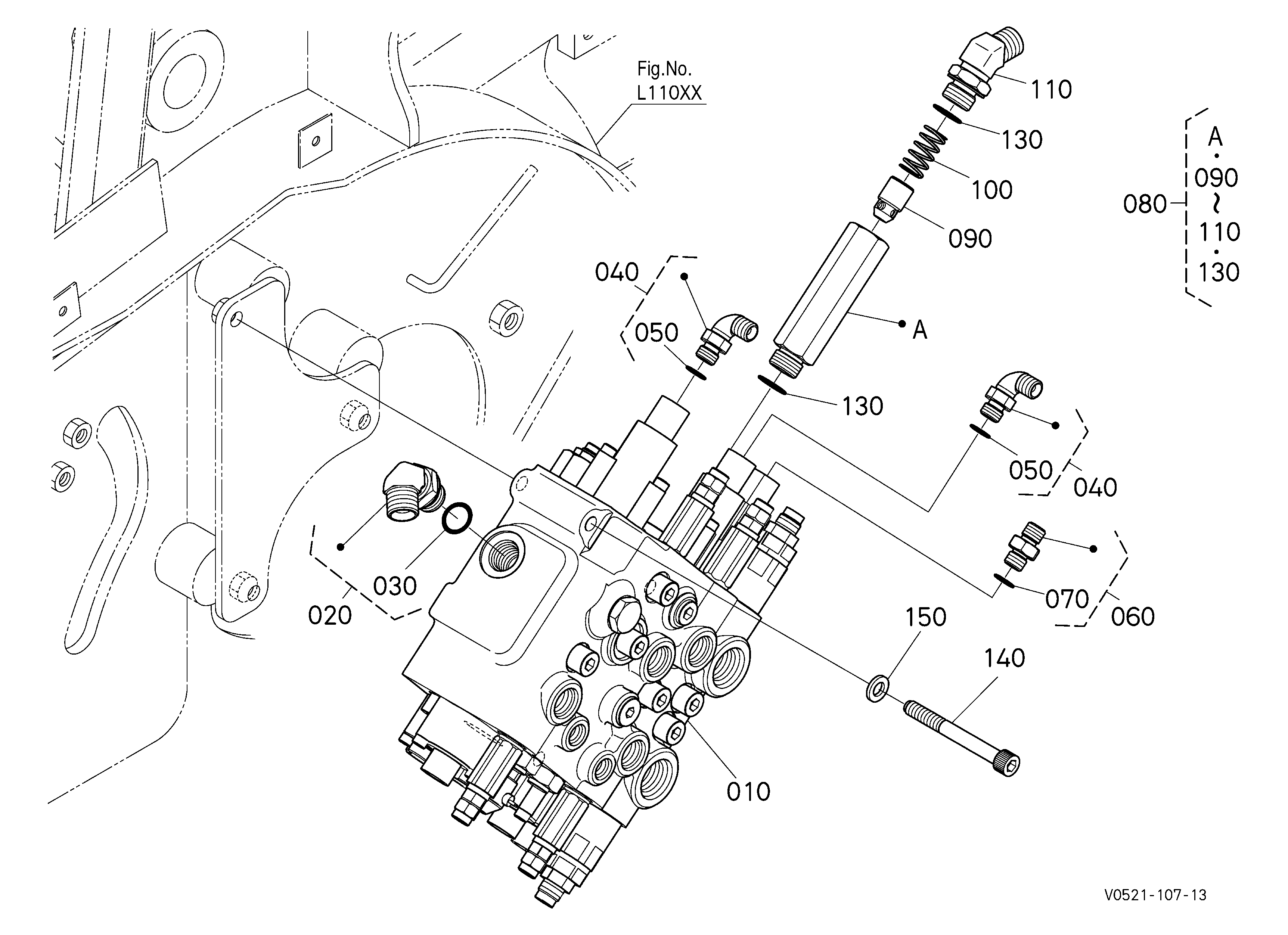

DIAG-G45000-90504 G45000 CONTROL VALVE
View Diagram -
DIAG-G45200-90504 G45200 CONTROL VALVE 2 (FRONT UPPER)
View Diagram -

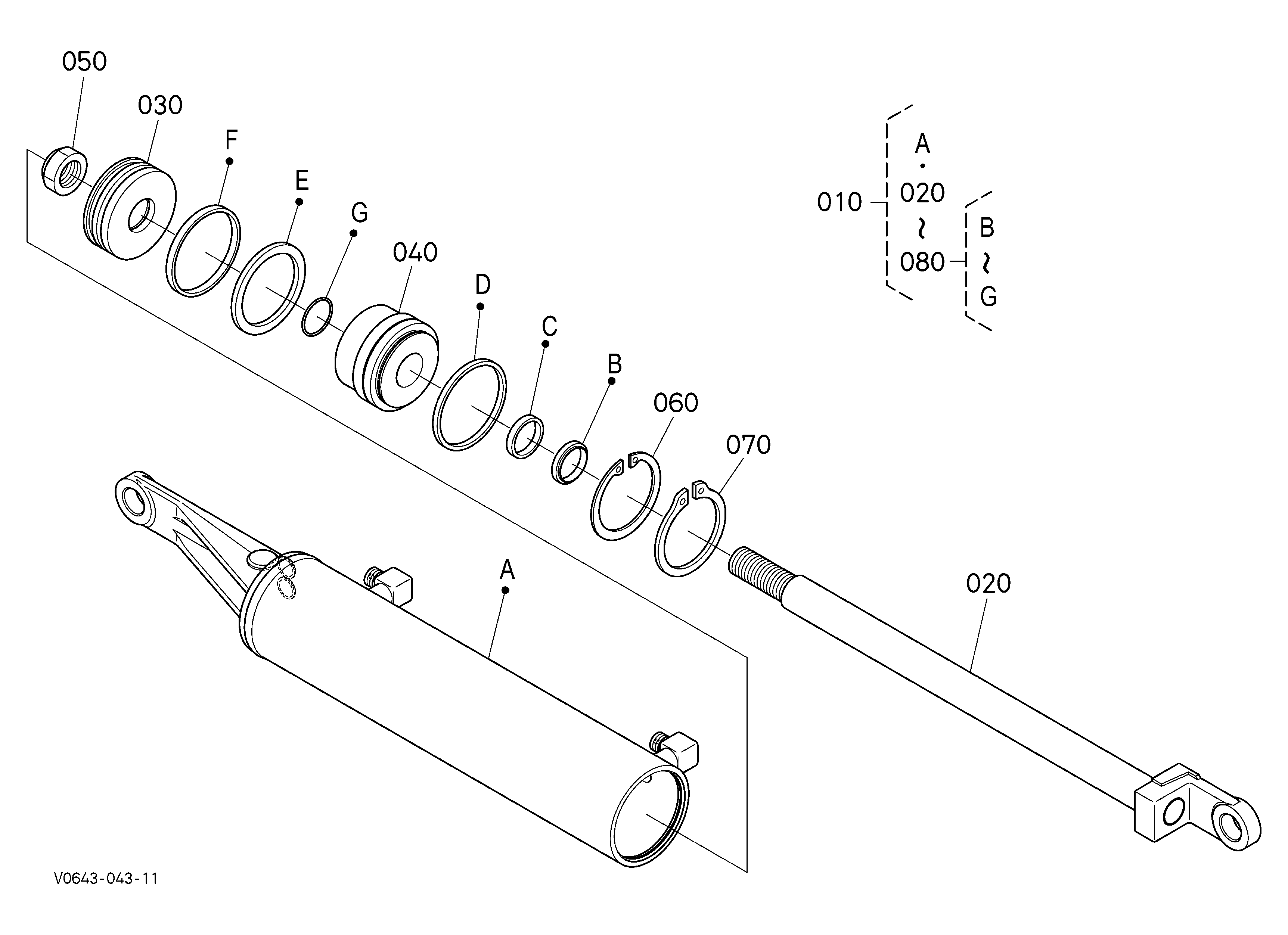

DIAG-H23503-90504 H23503 HITCH CYLINDER [COMPONENT PARTS]
