Kubota SVL90-2 G45000 CONTROL VALVE Parts Diagram

Exploded-view parts diagram "G45000 CONTROL VALVE" for the Kubota SVL90-2. 28 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 ASSY VALVE, CONT V0611-63110 1 AVAILABLE TO ORDER $6,414.95
020 ELBOW 68881-63340 1 AVAILABLE TO ORDER $128.37
030 O-Ring Seal 04810-00180 04817-00180 1 48 IN STOCK $2.26
040 JOINT PIPE RD401-63740 1 AVAILABLE TO ORDER $42.98
060 JOINT, PIPE V0611-68460 1 AVAILABLE TO ORDER $134.50
080 ADAPTER V0511-68700 V0511-68702 1 AVAILABLE TO ORDER $53.39
100 JOINT, PIPE (LG- V0511-68680 1 AVAILABLE TO ORDER $35.33
110 Hydraulic O-Ring Seal 04810-00110 04817-00110 1 12 IN STOCK $2.50
130 ADAPTER, 7 68271-63420 1 2 IN STOCK $43.17
150 JOINT PIPE RD401-63730 1 AVAILABLE TO ORDER $51.98
170 JOINT PIPE RD418-96360 1 AVAILABLE TO ORDER $119.62
210 JOINT V0511-68550 V0511-68552 1 AVAILABLE TO ORDER $57.70
270 JOINT RD411-61930 1 AVAILABLE TO ORDER $79.33
320 JOINT,PIPE MR003-60610 1 AVAILABLE TO ORDER $61.53
330 O-Ring Seal (Hydraulic/Oil Piping) 04817-00240 1 4 IN STOCK $2.50
340 JOINT RD809-61950 1 AVAILABLE TO ORDER $133.21
360 JOINT RD809-69170 1 AVAILABLE TO ORDER $107.30
390 FILTER RC461-61740 1 1 IN STOCK $54.19
420 JOINT, PIPE (LGG V0511-68670 1 AVAILABLE TO ORDER $45.61
440 ASSY VALVE, CHEC V0511-68332 1 AVAILABLE TO ORDER $166.94
460 POPPET RD411-61910 1 AVAILABLE TO ORDER $60.20
470 SPRING V0511-68482 1 AVAILABLE TO ORDER $31.22
480 JOINT, PIPE RD411-92590 1 AVAILABLE TO ORDER $53.76
530 JOINT,PIPE(S,G2,G2) V0511-68300 V0651-68240 1 1 IN STOCK $37.79
550 JOINT, PIPE (SGG V0611-68320 1 AVAILABLE TO ORDER $93.19
570 JOINT, PIPE (LGG V0611-68160 1 AVAILABLE TO ORDER $88.04
590 BOLT 01315-11090 1 AVAILABLE TO ORDER $12.79
600 Spring Washer (Lock Washer) 04512-60100 04512-70100 1 10 IN STOCK $0.60

Showing 1 to 28 of 28 parts

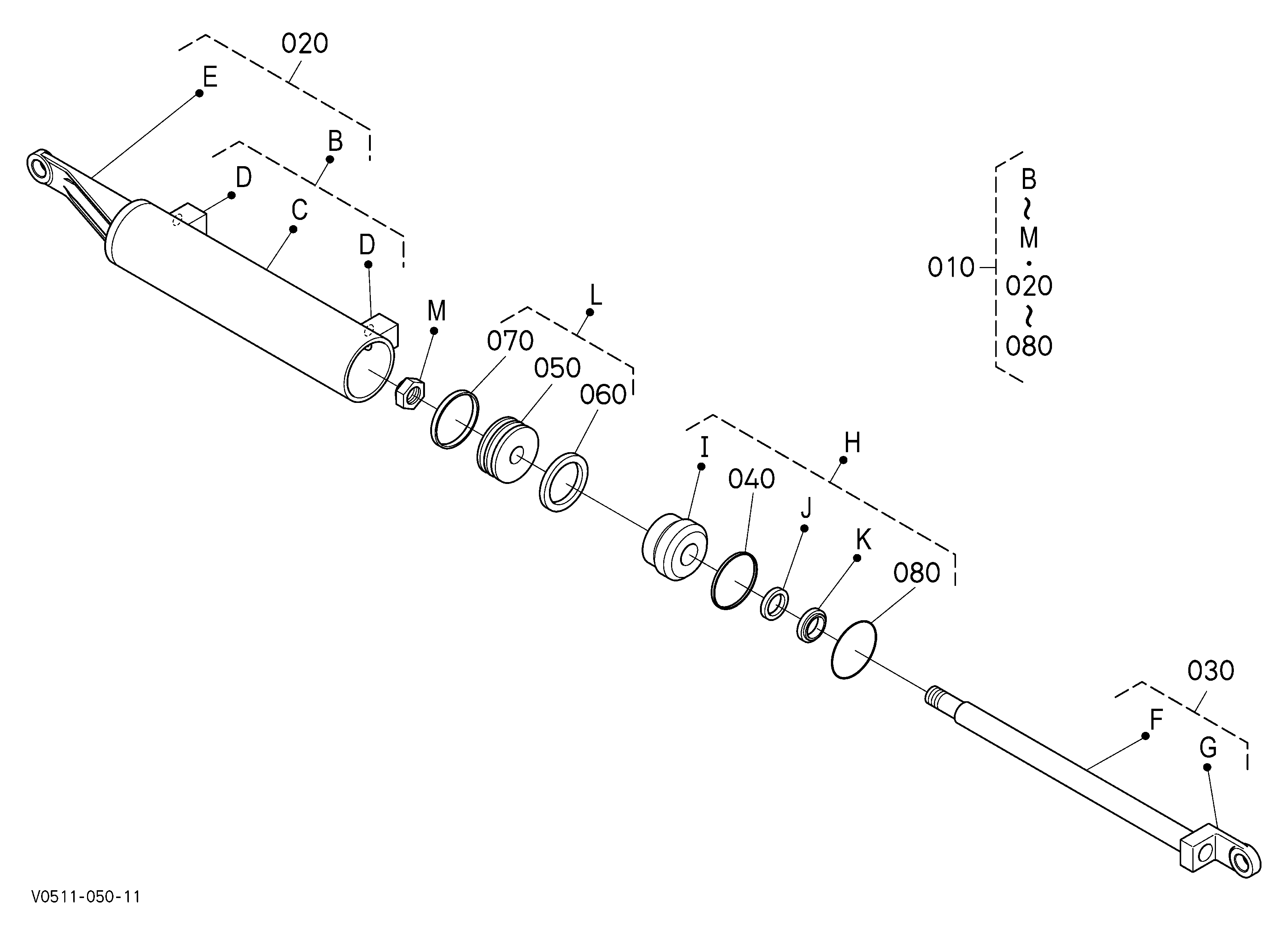

  • DIAG-H23500-86270 H23500 HITCH CYLINDER [HYDRAULIC HITCH] [COMPONENT PARTS]

    View Diagram

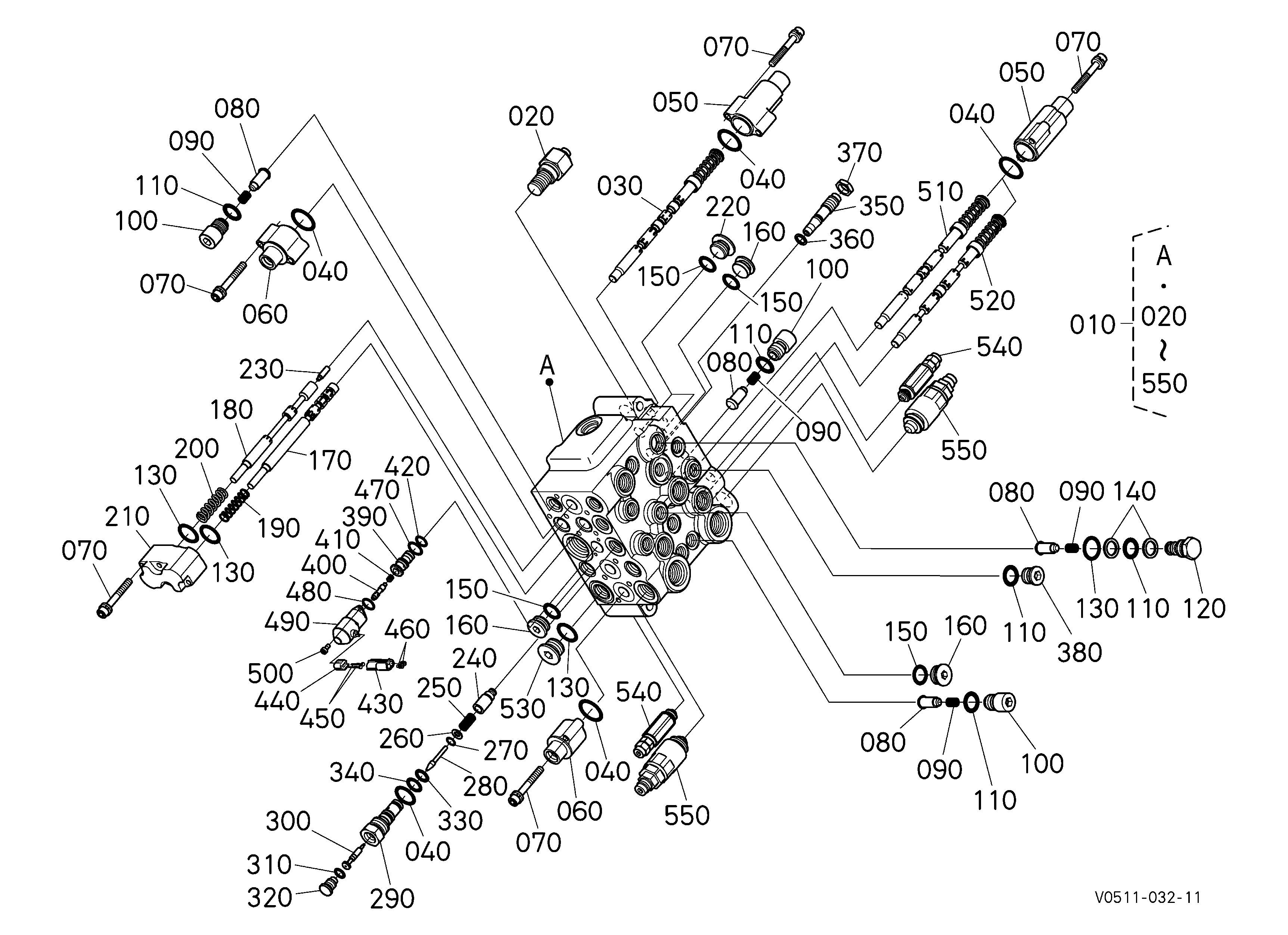

  • DIAG-G45500-86270 G45500 CONTROL VALVE [COMPONENT PARTS]
