Scroll to zoom Click a part # to view details

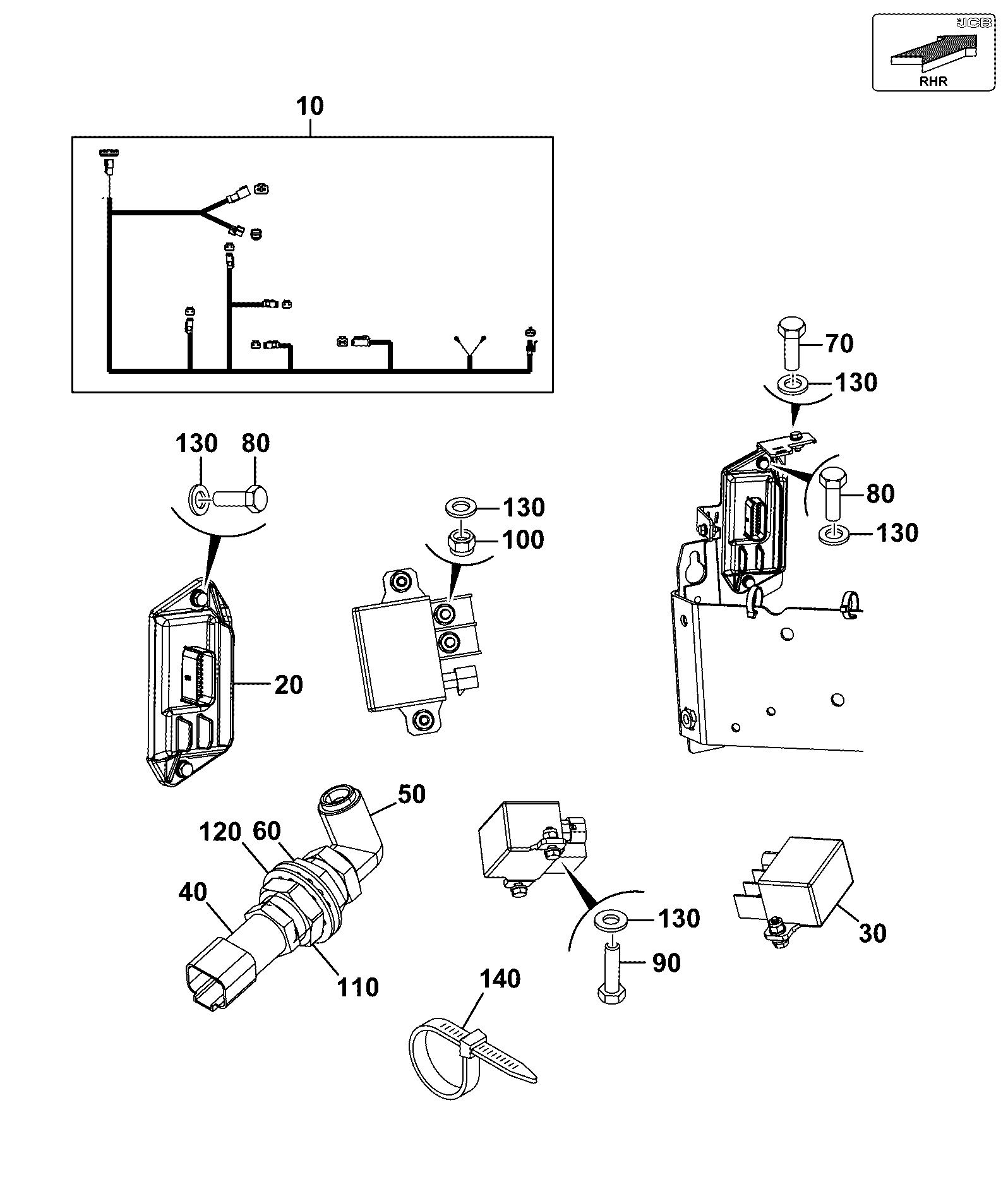

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | TRAILER AIR BRAKES UNIT H 721/T8518 | 1 | $123.08 | |||
| 20 | CM0410 MASTER ECU 728/P5462 | 1 | $342.83 | |||
| 30 | RELAY 12V 130A 716/30252 | 1 | $126.19 | |||
| 40 | PRESSURE TRANSDUCER 20Bar (P960) 334/E4752 | 1 | $202.68 | |||
| 50 | M16 90 DEG PUSHFIT FITTIN 400/Y2520 | 1 | $37.20 | |||
| 60 | M16-7/16 BULKHEAD ADAPTOR 401/N9184 | 1 | $18.00 | |||
| 70 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.00 | |||
| 80 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $2.40 | |||
| 90 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.00 | |||
| 100 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 110 | M22x1.5 NUT THIN 401/B1002 | 1 | $2.68 | |||
| 120 | TOOTHED LOCK WASHER (INT) 1424/0016D | 1 | $3.20 | |||
| 130 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 140 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.45 | |||
| 150 | TRAILER SOL RESISTOR 401/X7582 | 1 | $28.07 | |||
| 160 | AIR BRAKES PWR/GND LINK 721/F9989 | 1 | $85.54 | |||
Showing 1 to 16 of 16 parts
