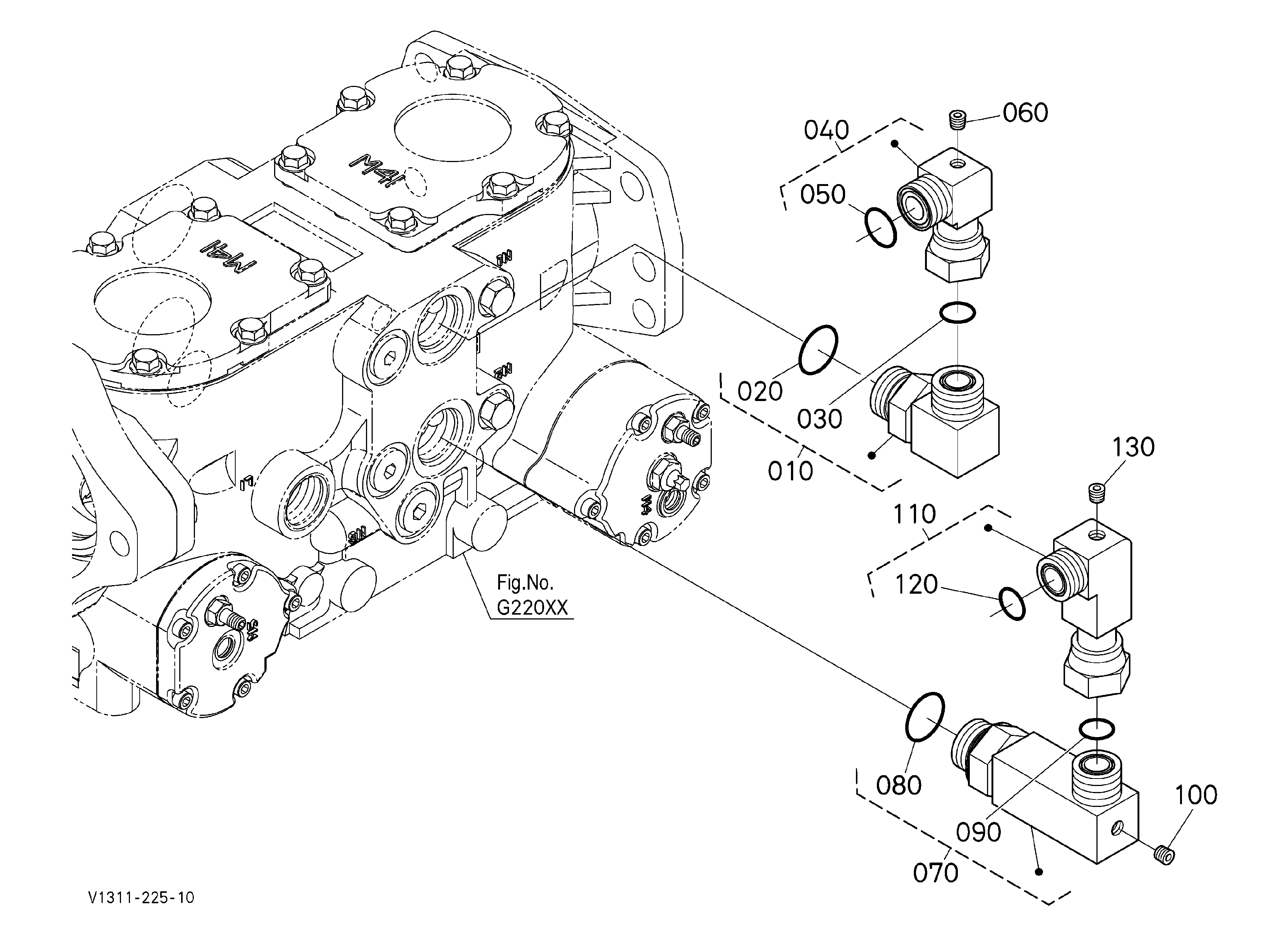

Kubota SSV75P G22200 HST PUMP (MOTOR RH) Parts Diagram
Exploded-view parts diagram "G22200 HST PUMP (MOTOR RH)" for the Kubota SSV75P, Kubota SSV75P, Kubota SSV75PC and Kubota SSV75PC. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | JOINT,PIPE,ASSY( V1311-69590 V1311-65630 | 1 | $201.16 | |||
| 020 | O-RING 68861-64130 | 1 | $5.96 | |||
| 030 | O-Ring Seal V0611-68012 | 1 | $12.88 | |||
| 040 | PLUG 33740-27430 YT763-43230 | 1 | $18.66 | |||
| 050 | JOINT,PIPE,ASSY( V1311-69262 V1311-65660 | 1 | $137.91 | |||
| 080 | JOINT,PIPE(S,105 V1311-69282 | 1 | $153.91 | |||
| 090 | O-Ring Seal 68131-61290 | 1 | $6.06 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-G22100-125513 G22100 HST PUMP (MOTOR LH)
View Diagram -

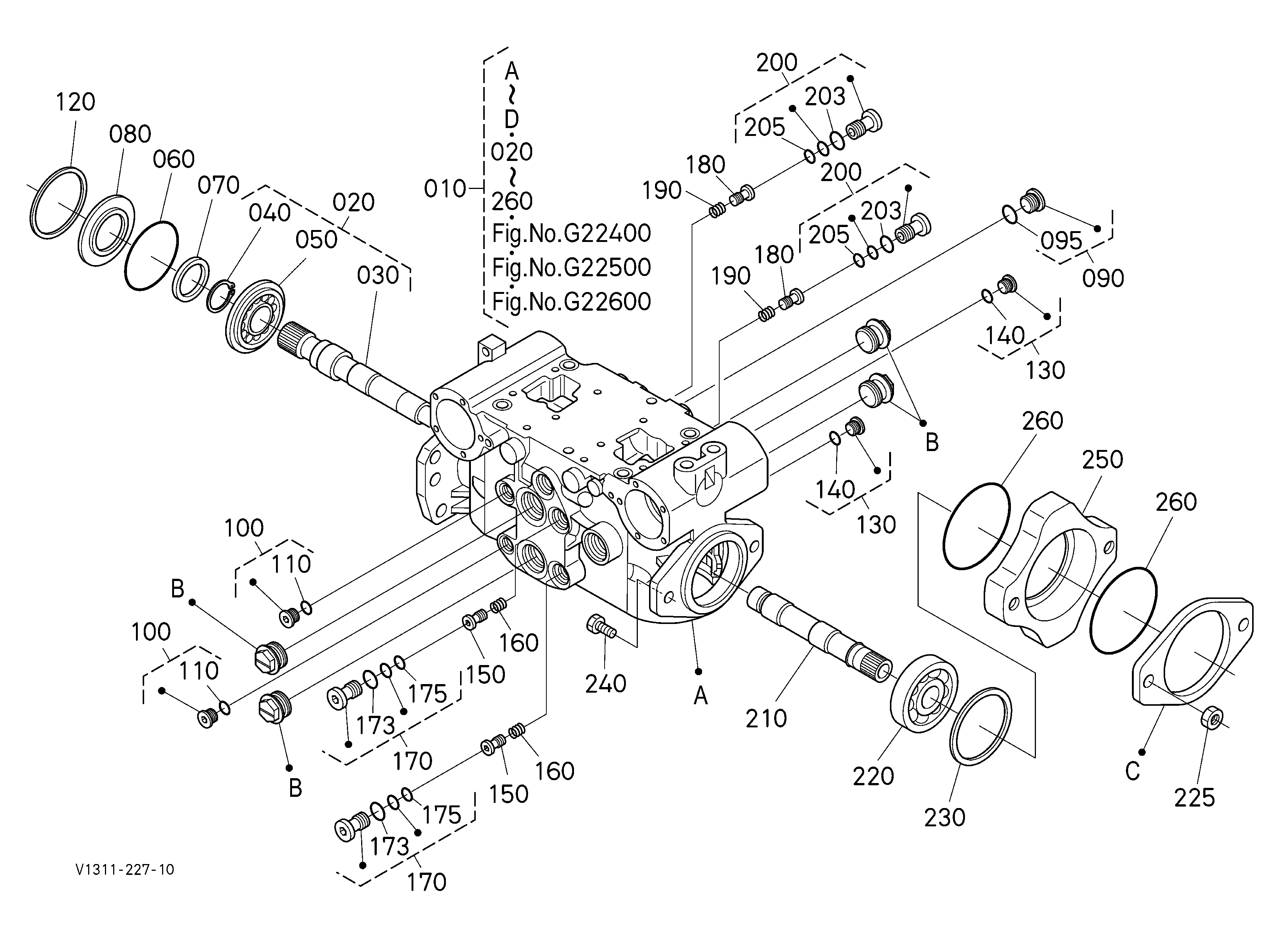

DIAG-G22300-125513 G22300 HST PUMP 1 [COMPONENT PARTS]
