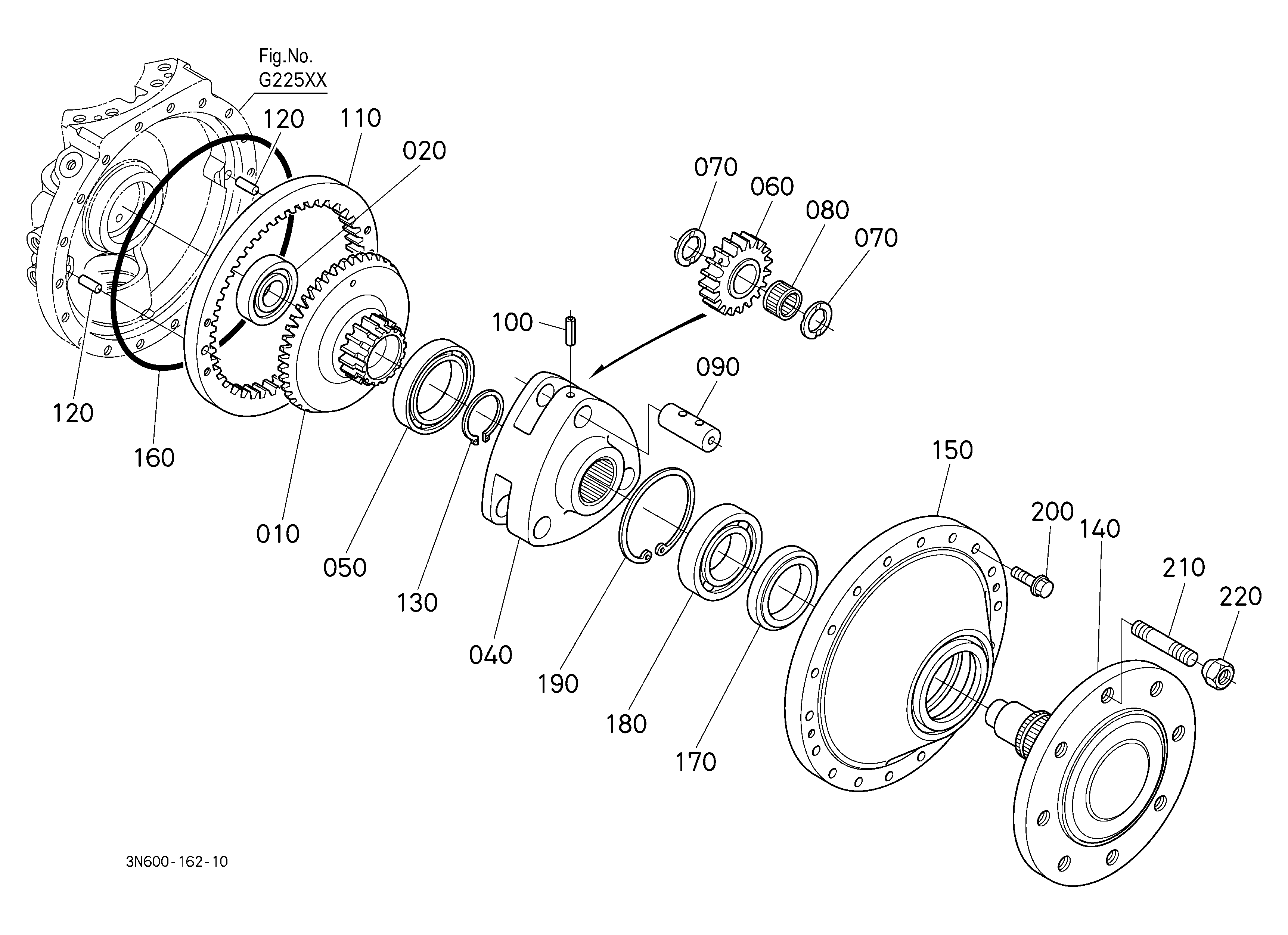

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE,BEVEL GEAR 35533-43314 35533-43316 | 1 | $458.36 | |||
| 020 | O'RING 68191-70770 04811-51000 | 1 | $6.74 | |||
| 030 | PIPE, KNOCK 35533-43170 | 1 | $11.40 | |||
| 040 | Bearing Retainer 3N300-40370 3D950-40380 | 1 | $201.65 | |||
| 050 | PLUG 66591-51132 66591-51130 | 1 | $1.38 | |||
| 060 | Bolt with Washer 01120-50825 01123-50825 | 1 | $1.21 | |||
| 070 | BOLT 01173-52040 | 1 | $7.35 | |||
| 080 | NUT 02172-60200 02172-50200 | 1 | $2.93 | |||
| 090 | ASSY SUPPORT, F- 3N300-43392 | 1 | $342.51 | |||
| 090 | ASSY, SUPPORT 3N300-43390 | 1 | $309.00 | |||
| 100 | BUSH 35533-43350 | 1 | $83.05 | |||
| 110 | SEAL,OIL (VC65X8 33750-43350 | 1 | $21.54 | |||
| 120 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $3.54 | |||
| 125 | PLUG 34150-27580 | 1 | $2.15 | |||
| 130 | Seal Washer 04717-02000 | 1 | $3.37 | |||
| 140 | WASHER, THRUST 3N300-43330 | 1 | $16.65 | |||
| 150 | Front Axle and Wheel Stud 32771-44960 | 1 | $9.66 | |||
| 150 | Stud Bolt for Front Axle / Front Wheel Hub 35822-49150 32580-44960 | 1 | $9.67 | |||
| 160 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.36 | |||
| 170 | NUT 3F250-27360 | 1 | $15.75 | |||
| 180 | BOLT, UBS 01779-51435 | 1 | $5.37 | |||
| 180 | BOLT, UBS 01779-51440 | 1 | $7.65 | |||
| 190 | PIN 3F250-40390 | 1 | $11.69 | |||
| 190 | Straight Pin 36730-32090 36730-32092 | 1 | $8.86 | |||
| 200 | Front Axle Oil Seal 33670-43360 | 1 | $51.52 | |||
| 210 | STUD 01517-61435 01517-51435 | 1 | $4.79 | |||
| 230 | Nut (Fastener) 02176-50140 | 1 | $1.51 | |||
| 240 | BOLT 01133-51440 | 1 | $3.53 | |||
| 250 | BOLT, UBS 36340-43180 | 1 | $6.24 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-
DIAG-G21501-85953 G21501 FRONT DIFFERENTIAL LOCK CLUTCH
View Diagram -
DIAG-G17000-85953 G17000 DIFFERENTIAL FRONT
View Diagram -
DIAG-G22700-85953 G22700 FRONT AXLE
View Diagram
