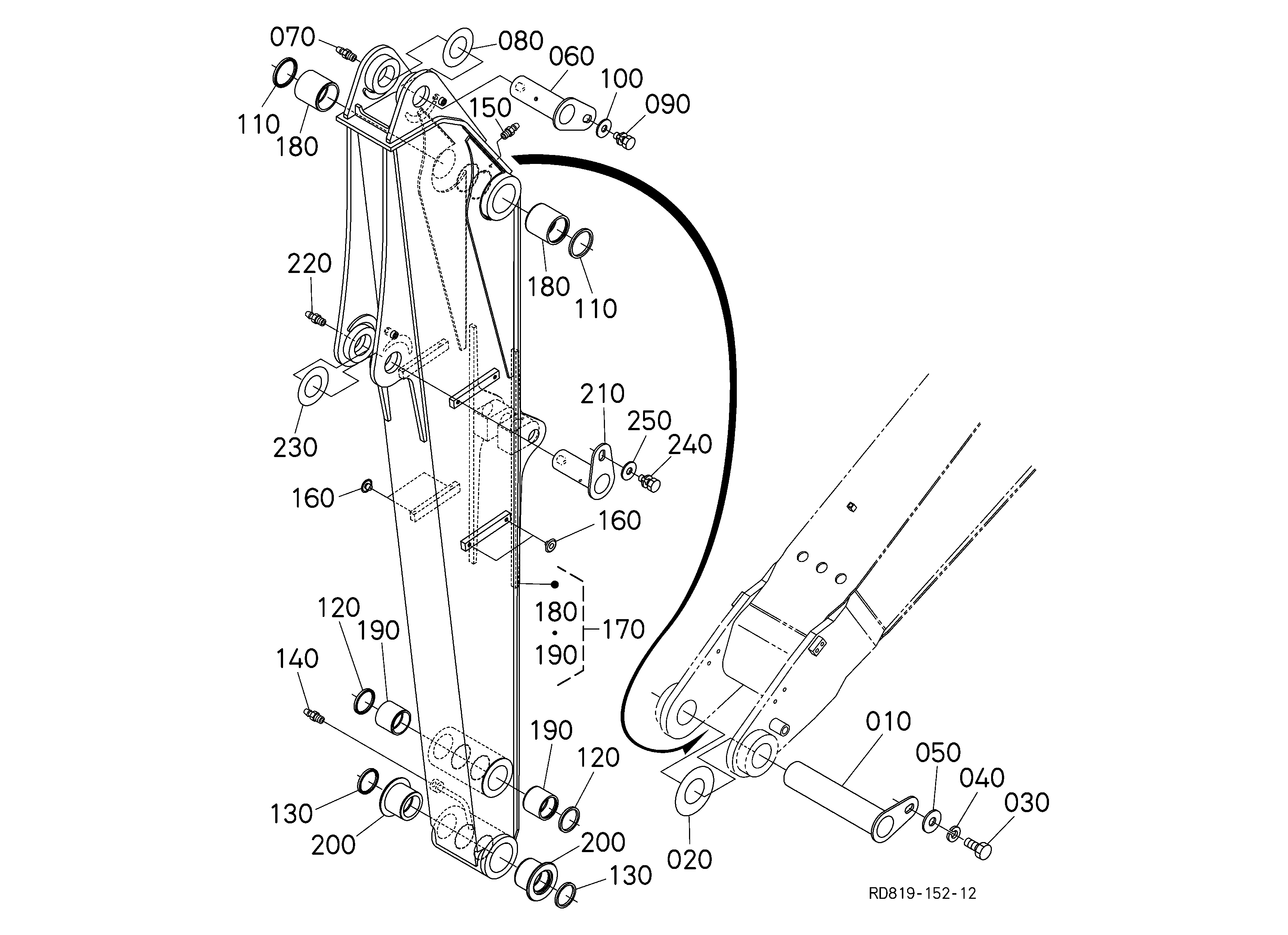

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PIN RD809-66562 | 1 | $507.15 | |||
| 020 | SHIM RD809-66960 | 1 | $25.87 | |||
| 020 | SHIM (1.0, 140-7 RD809-66970 | 1 | $36.36 | |||
| 030 | BOLT 01173-62040 | 1 | $10.69 | |||
| 040 | Spring Washer 04512-50200 04512-70200 | 1 | $1.05 | |||
| 050 | Plain Washer 04015-60200 04015-70200 | 1 | $1.05 | |||
| 060 | PIN RD809-67650 | 1 | $256.13 | |||
| 070 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $2.09 | |||
| 080 | SHIM RD809-66940 | 1 | $15.02 | |||
| 080 | SHIM RD809-66950 | 1 | $25.87 | |||
| 090 | BOLT 01133-61225 01133-71225 | 1 | $1.99 | |||
| 100 | Plain Washer 04015-60120 04015-70120 | 1 | $1.05 | |||
| 110 | SEAL, DUST RC411-41142 | 1 | $30.35 | |||
| 120 | SEAL, DUST RP821-67410 | 1 | $27.28 | |||
| 130 | SEAL, DUST RD809-66670 | 1 | $38.23 | |||
| 160 | CAP 68741-66560 | 1 | $12.30 | |||
| 170 | ASSY, ARM RD819-67100 RD819-67104 | 1 | $7,359.80 | |||
| 180 | BUSHING RD809-66620 | 1 | $231.31 | |||
| 190 | BUSHING RD819-66690 | 1 | $221.03 | |||
| 200 | BUSHING RD819-66650 | 1 | $250.42 | |||
| 210 | PIN RD809-67660 | 1 | $249.04 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-G20001-85156 G20001 ARM [EXCEPT SUPER DOUBLE BOOM TYPE]
View Diagram -
DIAG-G30000-85156 G30000 BUCKET LINK
View Diagram -
DIAG-G10500-85156 G10500 CYLINDER COVER 2 (BOOM) [SUPER DOUBLE BOOM TYPE]
View Diagram
