Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TEST POINT ELBOW 10MM - M 816/13427 | 1 | $100.07 | |||
| 5 | VALVE ABS MODULATO 25/220742 | 1 | $1,605.08 | |||
| 6 | Adapter 90 elbow 1 816/65123 | 1 | $84.80 | |||
| 7 | Adapter tee 10mmx1 816/90816 | 1 | $26.77 | |||

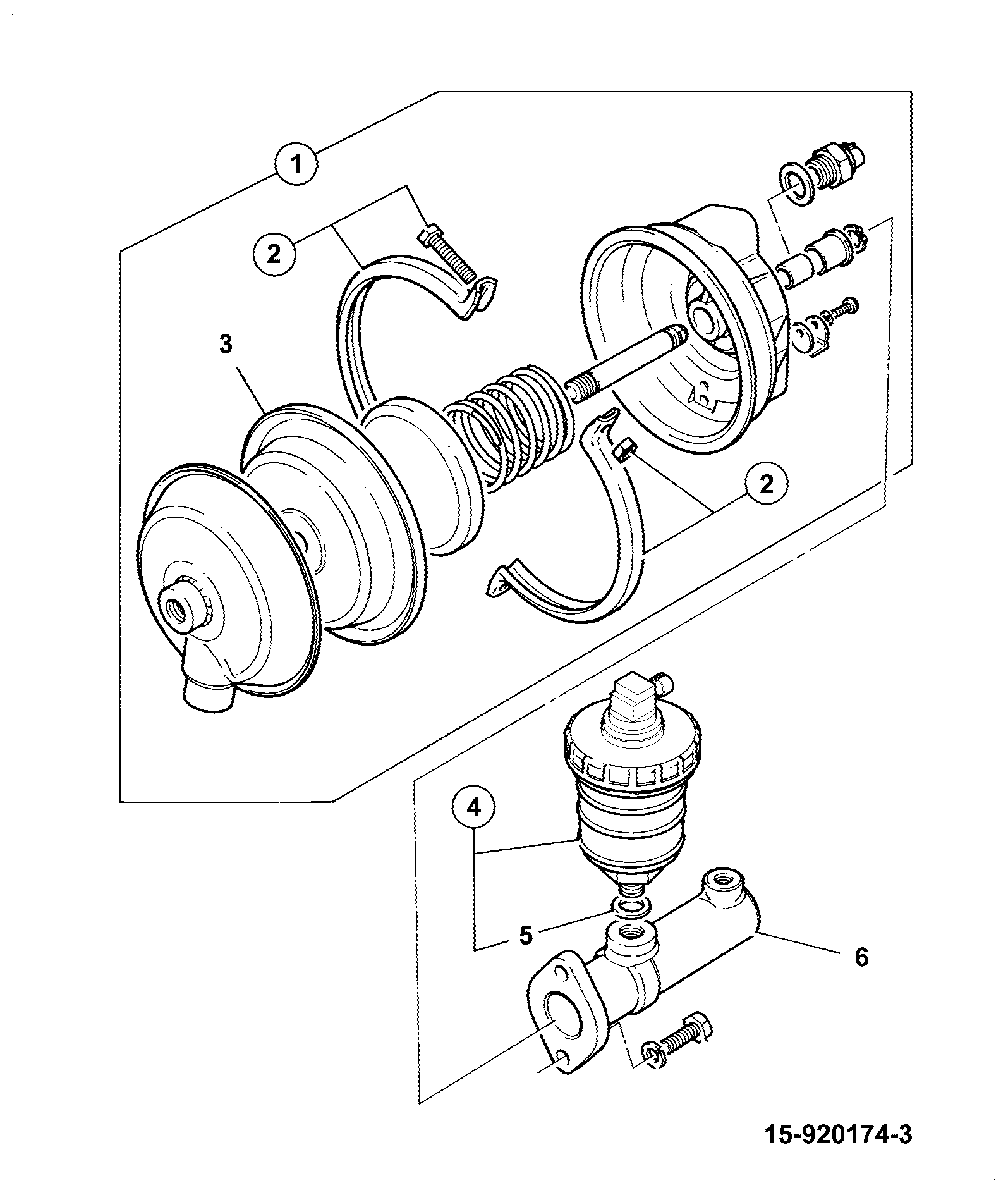

| 10 | HYDRAULIC ACTUATOR 15/920174 | 1 | $1,057.27 | |||
| 11 | ADAPTOR:M12X1-1.5 478/01476 | 1 | $33.01 | |||
| 13 | SET-SCREW M12 L-_25mm 1315/0507D | 1 | $3.38 | |||
| 14 | WASHER M12 PLAIN 1420/0009D | 1 | $1.07 | |||
| 15 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 16 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 17 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 18 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 19 | AIR TUBE 10 MM YELLOW (300mtr Roll) 647/13900 | 1 | $6.08 | |||
| 20 | AIR TUBE 10 MM RED 647/13800 | 1 | $5.58 | |||
| 21 | (W) BOLT M8x80 1315/3318D | 1 | $3.67 | |||
| 22 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 23 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 24 | Adapter straight 1 816/90817 | 1 | $50.74 | |||
| 26 | .0MM TEE PIECE 816/90818 | 1 | $34.19 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-G190-8-1-393600 G190-8-1 ACTUATOR AIR/HYDRAULIC
View Diagram -
DIAG-G190-10-1-393600 G190-10-1 FOOT BRAKE ACTUATOR CIRCUIT NON ABS
View Diagram -
DIAG-G190-7-1-393600 G190-7-1 FOOT BRAKE SUPPLY CIRCUIT - ABS
View Diagram
