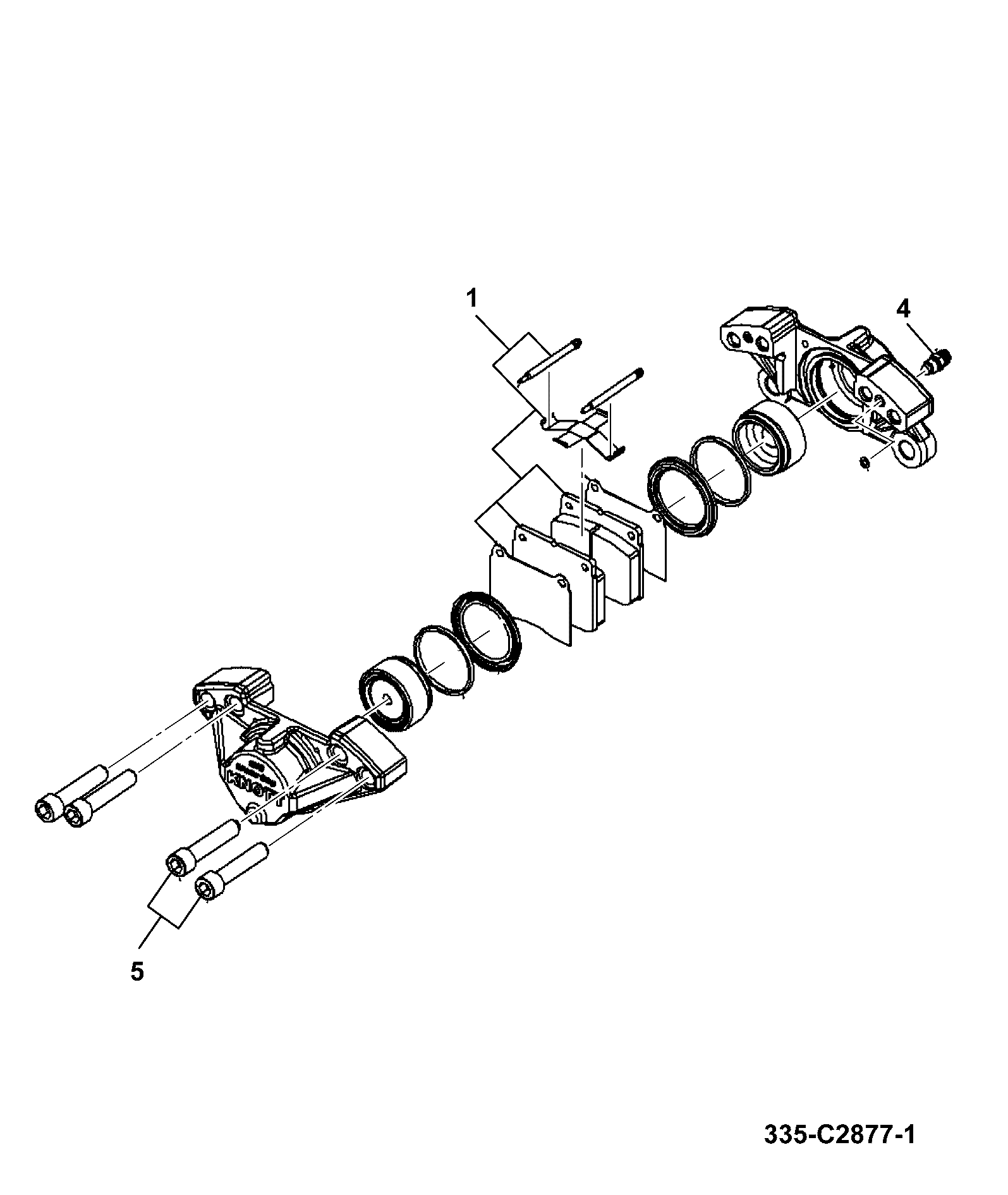

G190-70-1 OTHER BRAKE SYSTEM PARTS BRAKE CALIPER 75 MM Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Lining 336/B8508	1	AVAILABLE TO ORDER	$623.14	Quantity
2	Seal 336/B8509	1	AVAILABLE TO ORDER	$110.11	Quantity
3	Repair 336/B8511	1	AVAILABLE TO ORDER	$834.45	Quantity
4	Bleed Valve 336/B8568	1	AVAILABLE TO ORDER	$80.91	Quantity
5	Repair 336/B8515	1	AVAILABLE TO ORDER	$71.27	Quantity
A	75 mm BRAKE CALIPER 22 mm 400/S2269	1	AVAILABLE TO ORDER	$614.65	Quantity

Showing 1 to 6 of 6 parts
