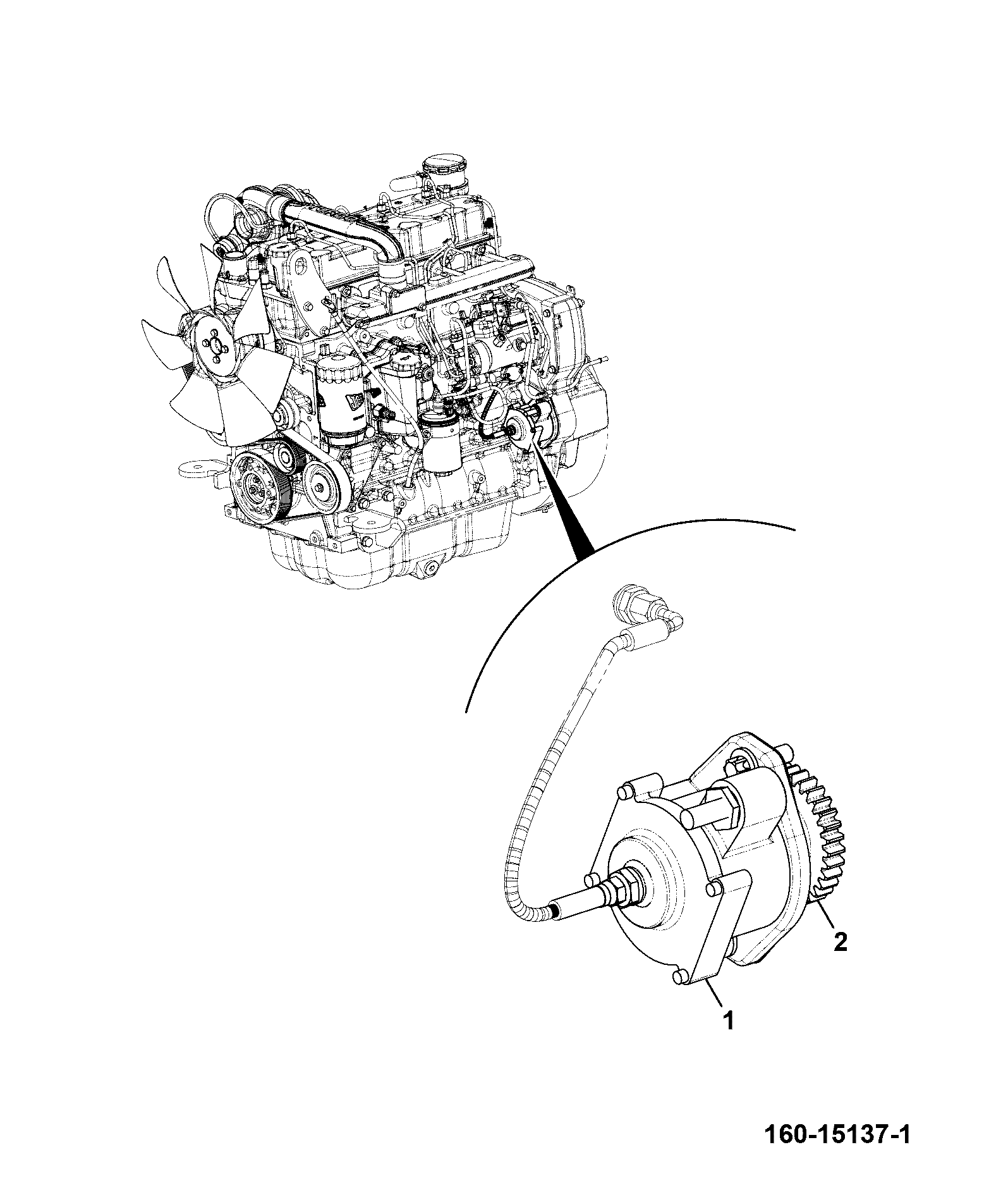

G190-40-1 OTHER BRAKE SYSTEM PARTS KIT EXHAUSTER LUBRICATION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	WASHER BONDED 1/4 BSP 1406/0011	1	5 IN STOCK	$1.52	Quantity
2	Adaptor 816/90727	1	AVAILABLE TO ORDER	$22.46	Quantity
4	Hose 649/51208	1	AVAILABLE TO ORDER	$128.42	Quantity
5	Adaptor 816/90768	1	AVAILABLE TO ORDER	$45.21	Quantity

Showing 1 to 4 of 4 parts
