G190-1-1 OTHER BRAKE SYSTEM PARTS HOSES & FITTINGS POWER BRAKE Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	ADAPTOR G3/8 X M12 (P787) 333/G1923	1	AVAILABLE TO ORDER	$7.93	Quantity
20	GA HOSE 3/8 BSP - GREEN 332/H8908	1	AVAILABLE TO ORDER	$74.46	Quantity
30	BRAKE PIPE 265/00251	1	AVAILABLE TO ORDER	$268.36	Quantity

Showing 1 to 3 of 3 parts

DIAG-G120-35-1-401621 G120-35-1 BRAKE SERVO INSTALLATION MASTER CYLINDER
View Diagram

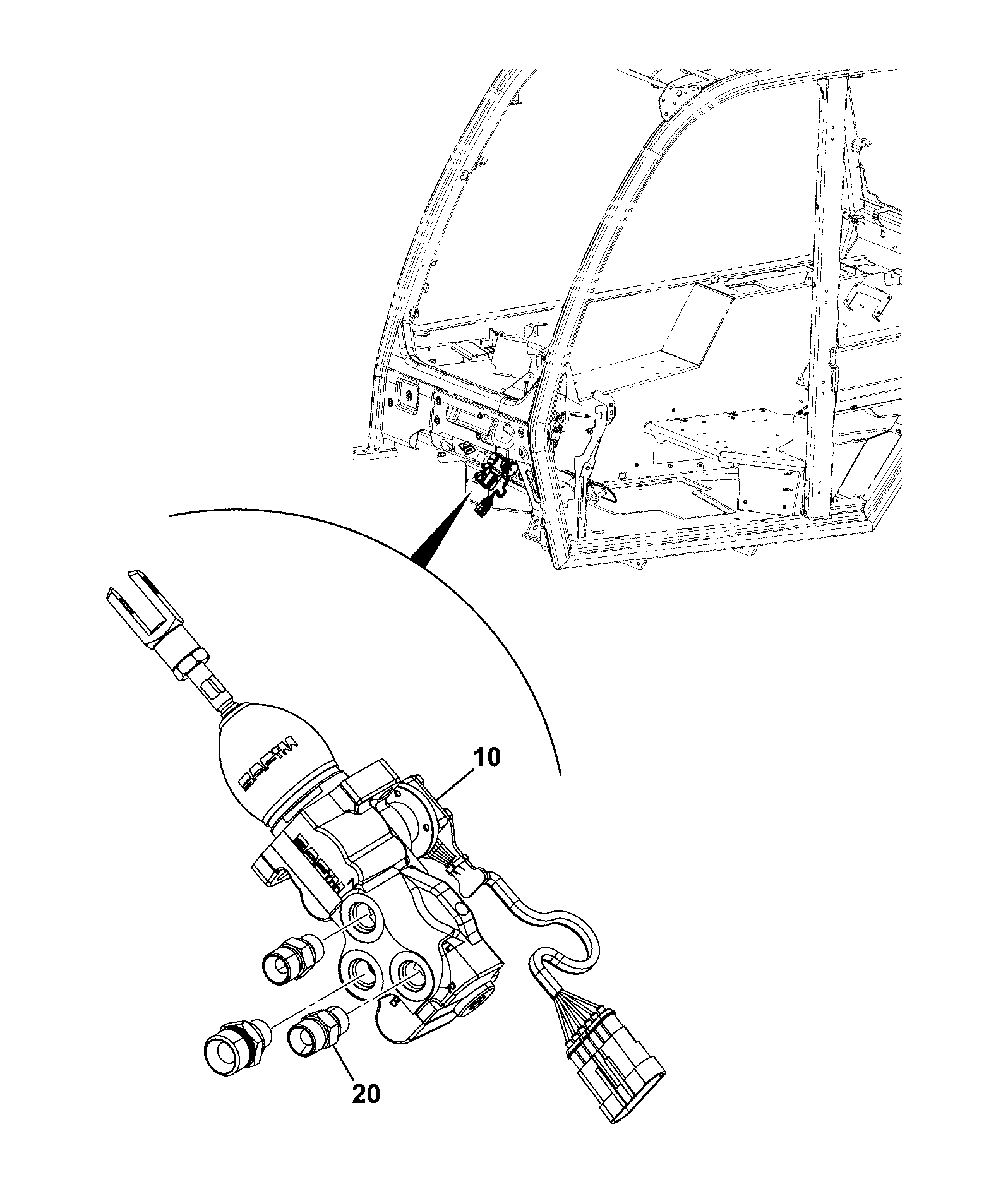

DIAG-G120-30-1-401621 G120-30-1 BRAKE SERVO POWER BRAKE VALVE AND PEDAL
