G140-1-1 BRAKE TRAILER INSTALLATION (ENGINE FAN) Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
3	90 DEG ELBOW M/F 816/40016 816/90078	1	AVAILABLE TO ORDER	$22.91	Quantity
5	Adapter Tee 816/90263	1	AVAILABLE TO ORDER	$31.06	Quantity
6	HOSE -8 BSP HP 525mm B 333/S4036	1	AVAILABLE TO ORDER	$55.94	Quantity

Showing 1 to 3 of 3 parts

DIAG-G140-2-1-404539 G140-2-1 BRAKE TRAILER INSTALLATION (HYDRAULIC FAN)
View Diagram
DIAG-G140-3-2-404539 G140-3-2 BRAKE TRAILER COMMON PARTS
View Diagram

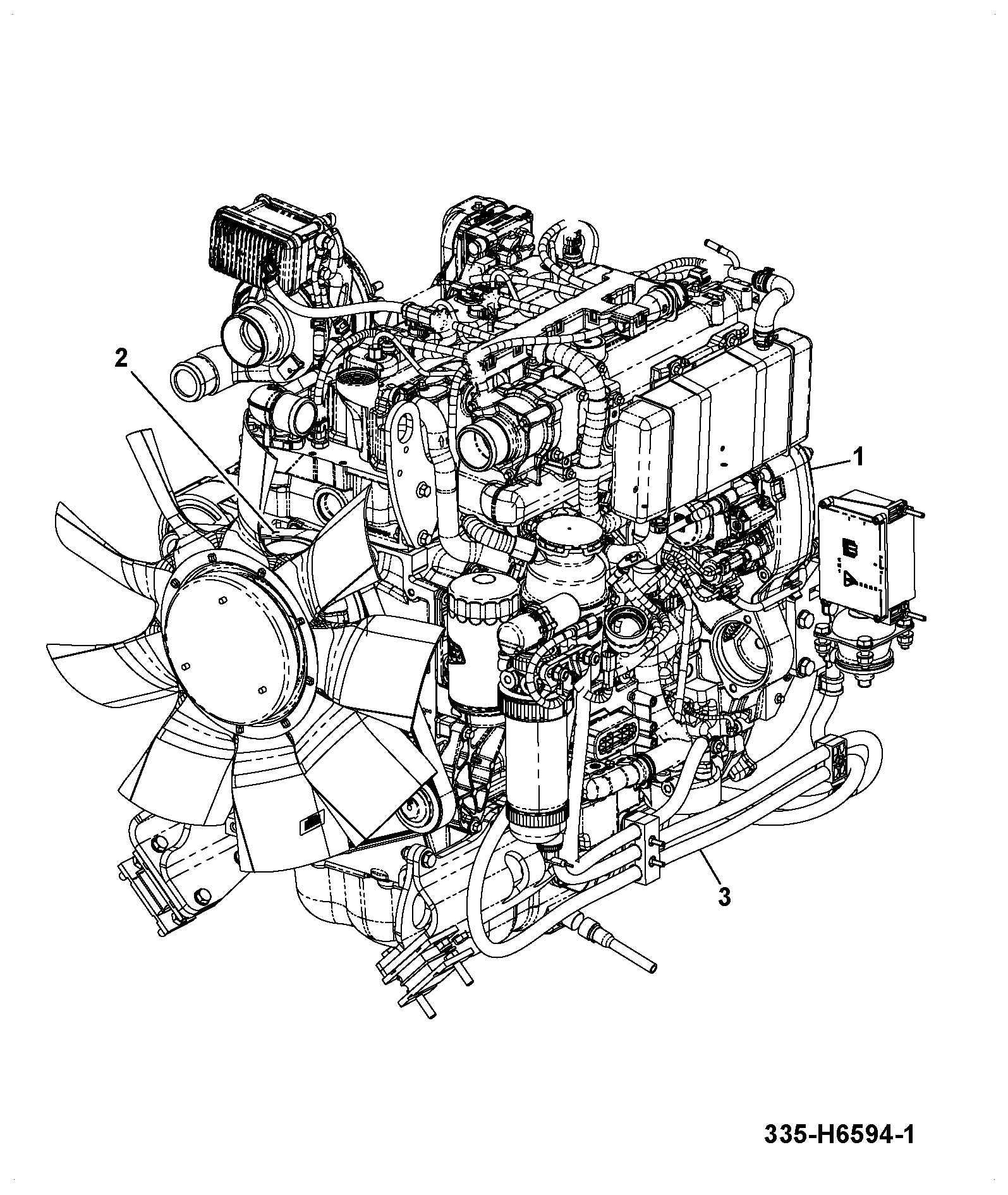

DIAG-L110-25-1-404539 L110-25-1 ENGINE ASSEMBLIES VISCOUS FAN, NO AC, 108kW
