Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 20 | ABI BRAKE PEDAL 402/U7311 | 1 | $133.87 | |||
| 30 | BRAKE PEDAL SHAFT (P68) 400/M3858 | 1 | $12.37 | |||
| 40 | TENSION SPRING 814/00388 | 1 | $60.99 | |||
| 50 | CLEVIS PIN 913/00012 | 1 | $21.95 | |||
| 60 | ABI 6 WAY SUPERSEAL HOUSING (P493) 401/N8210 | 1 | $7.25 | |||
| 70 | Label ISO-06G 401/P0004 | 1 | $0.95 | |||
| 80 | WASHER M20 PLAIN 1420/0012D | 1 | $1.13 | |||
| 90 | BOLT M6x50 1315/3212D | 1 | $1.49 | |||
| 100 | WINDOW STOP 236/05133 | 1 | $79.08 | |||
| 110 | BOLT M_8 L-_25mm G-_8.8 FLANGED HEX 1317/3307D | 1 | $4.11 | |||
| 120 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 130 | WASHER 1/4IN SMALL 1410/0001Z 1410/0001D | 1 | $0.29 | |||
| 150 | SHIM 0.5mm 819/00047 | 1 | $0.00 | |||
| 160 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $1.36 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

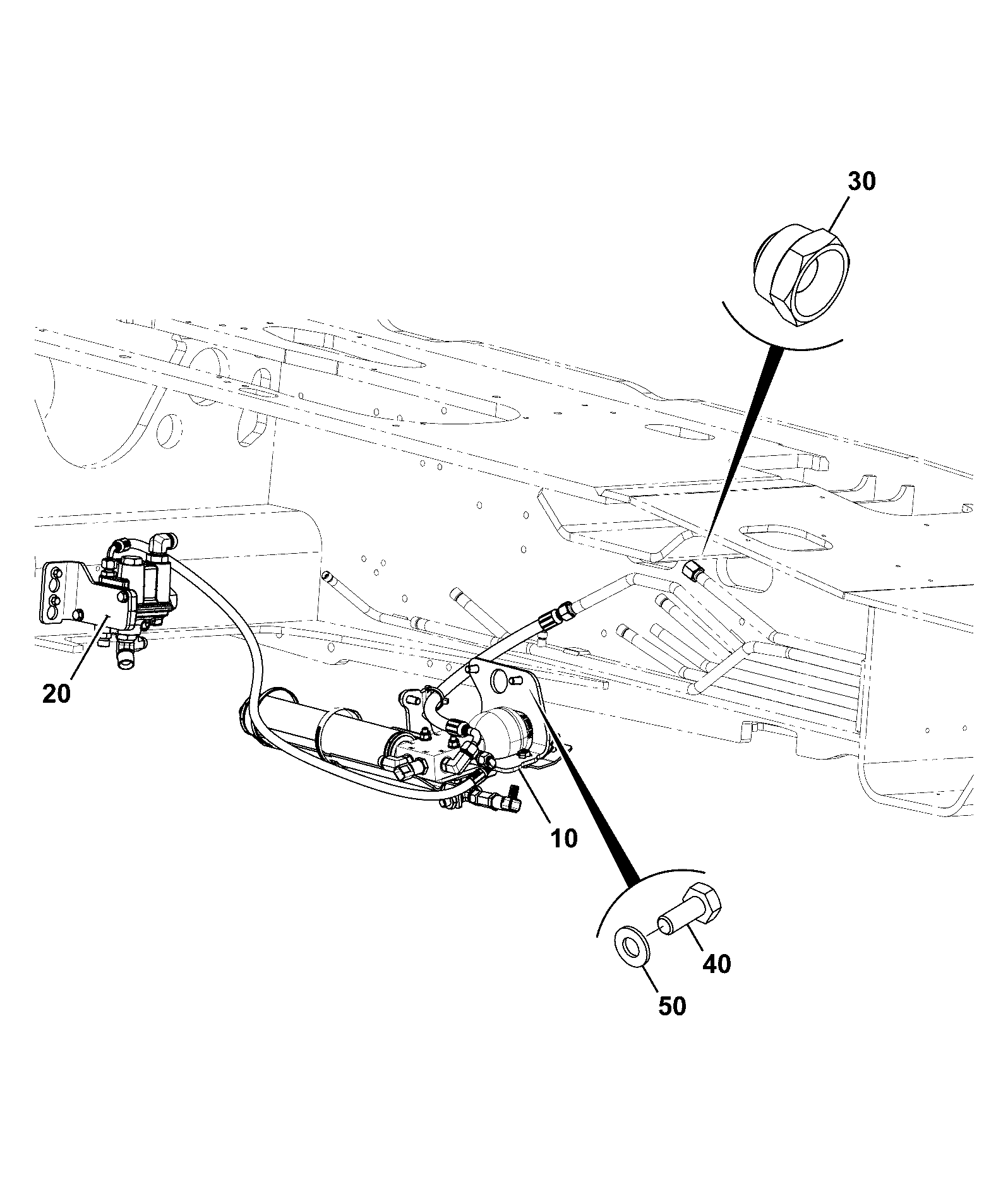

DIAG-G120-30-1-401632 G120-30-1 BRAKE SERVO INSTALLATION MASTER CYLINDER
View Diagram -
DIAG-G100-110-1-401632 G100-110-1 BRAKE SYSTEM INSTALLATION ASSEMBLIES WITHOUT TRAILER BRAKES
View Diagram -
DIAG-G100-80-10-401632 G100-80-10 BRAKE SYSTEM INSTALLATION ASSEMBLIES TRAILER BRAKES HM560
View Diagram
