Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FRAME, COMP K2561-21017 | 1 | $827.46 | |||
| 020 | ROD, TIE K2583-21030 K2583-21032 | 1 | $64.55 | |||
| 030 | BOLT 01133-51440 | 1 | $3.53 | |||
| 030 | M14 Metric Hex Head Bolt 01073-51440 | 1 | $2.47 | |||
| 040 | WASHER, SPRING 75599-33016 | 1 | $0.51 | |||
| 050 | BRACKET, FRONT K2561-21520 | 1 | $26.43 | |||
| 060 | BRACKET, REAR K2561-21530 | 1 | $27.15 | |||
| 070 | STUD 01555-51245 | 1 | $2.93 | |||
| 080 | Spring Washer 04512-60120 04512-70120 | 1 | $0.36 | |||
| 090 | NUT (9T) K2561-21550 | 1 | $1.73 | |||
| 090 | Nut Fastener for Equipment Assemblies 02173-50120 02174-50120 | 1 | $0.87 | |||
| 100 | BOLT 01073-51430 | 1 | $2.26 | |||
| 110 | WASHER,SPRING 04512-60140 04512-70140 | 1 | $0.36 | |||
| 120 | BOLT 01053-51240 | 1 | $2.93 | |||
| 140 | SUPPORT ENGINE R K2521-22120 | 1 | $95.73 | |||
| 150 | Bolt 01073-51025 | 1 | $2.17 | |||
| 150 | BOLT 01130-51022 01133-51022 Discontinued | 1 | $1.94 | |||
| 150 | BOLT*** 01073-51022 | 1 | $1.59 | |||
| 160 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 170 | SUPPORT, ENGINE K2521-22110 | 1 | $181.47 | |||
| 200 | CUSHION K2561-22130 | 1 | $17.46 | |||
| 210 | NUT HEX FIN GR 5 0Y599-31013 75599-31013 Discontinued | 1 | $0.26 | |||
| 220 | Plated Lock Washer 60009-60602 75599-33013 | 1 | $0.31 | |||
| 230 | 3/8 Plain Washer 60009-64501 75599-32013 | 1 | $0.22 | |||
| 230 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 240 | COVER, HST FAN K2561-21210 | 1 | $15.05 | |||
| 240 | COVER, HST FAN K2561-21212 | 1 | $21.70 | |||
| 250 | BOLT 01173-50130 01073-51030 | 1 | $2.36 | |||
| 250 | Bolt Fastener 01130-51030 01133-51030 | 1 | $2.54 | |||
| 270 | Nut 02018-50100 | 1 | $0.80 | |||
| 270 | Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-

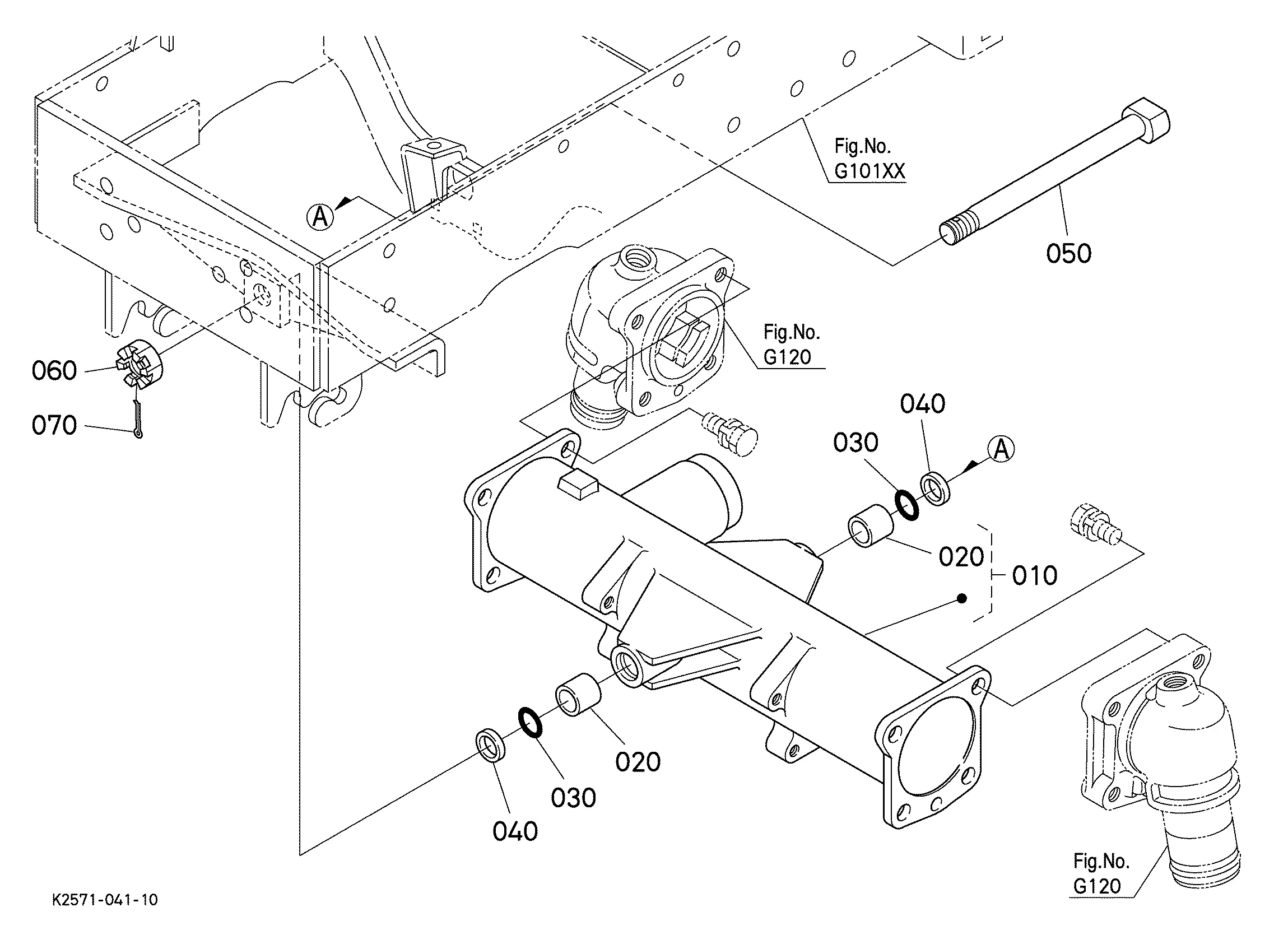

DIAG-G10101-84745 G10101 FRONT AXLE FRAME [A] [CA]
