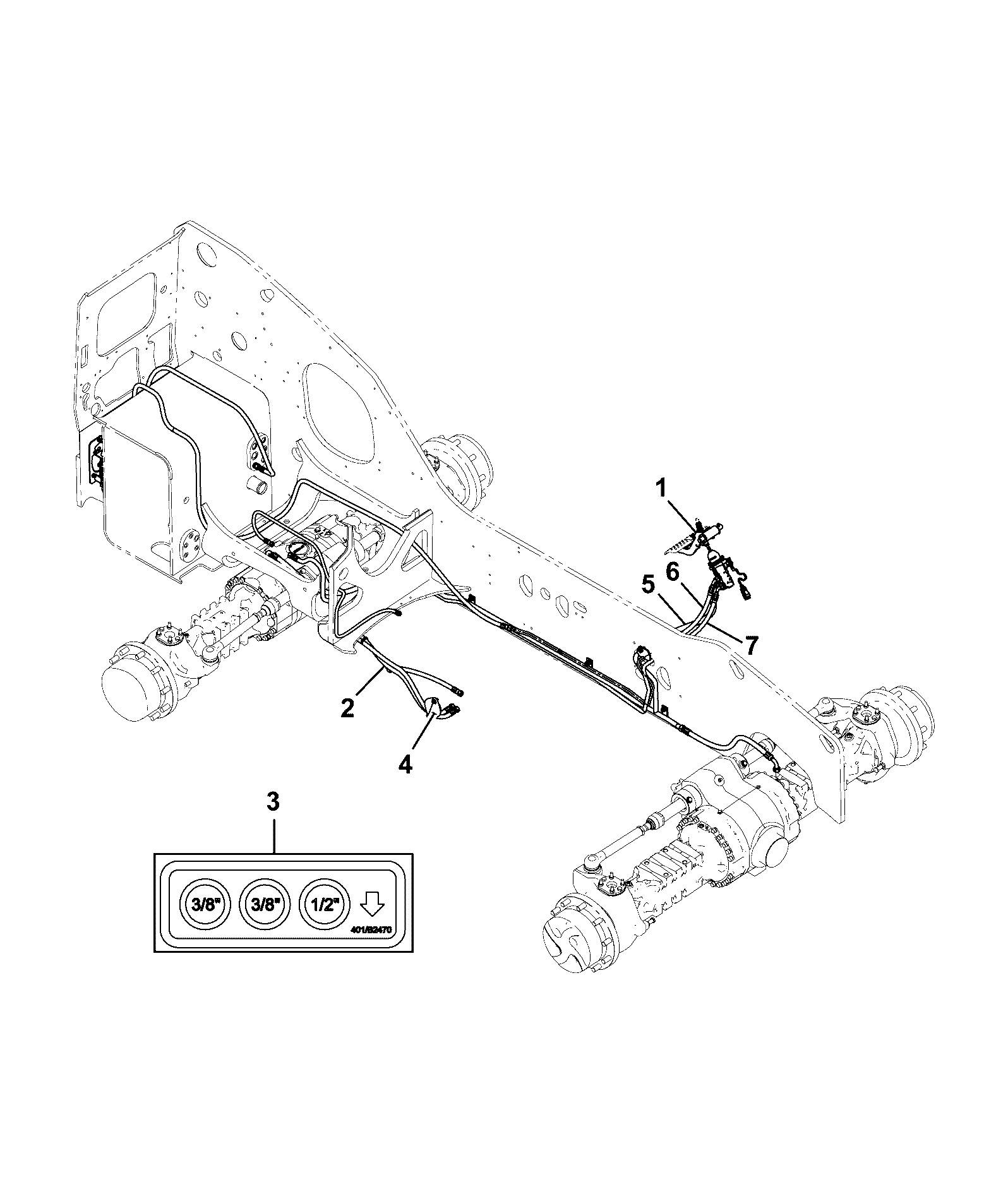

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA POWER BRAKE PIPES 5YJ/ 401/F1027 | 1 | $782.07 | |||
| 1 | WA POWER BRAKE PIPES 5YJ/ 401/N1347 | 1 | $720.32 | |||
| 2 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 3 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 4 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $0.95 | |||
| 5 | HEX.BOLT M10x55 LG 1315/3413D | 1 | $1.94 | |||
| 6 | MTG PLATE BRAKE PIPES 332/H6901 | 1 | $25.63 | |||
| 7 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 8 | BOLT M8x45 1315/3311D | 1 | $1.32 | |||
| 9 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $2.40 | |||
| 10 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 11 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
| 12 | QRC 3/8SAE MALE 9/16UNF 45/920111 | 1 | $79.47 | |||
| 13 | QRC 06 FEMALE - 6 SAE (HMH) 45/920112 | 1 | $112.89 | |||
| 14 | ADAPTOR 3/8BSP (HMH) 816/90037 | 1 | $27.50 | |||
| 15 | ADAPTOR 3/8BSPx3/4SAE 1620/2053 | 1 | $2.85 | |||
| 16 | HOSE-06 BSP HP 1530mm B 400/T1023 | 1 | $120.79 | |||
| 17 | HOSE -06 BSP HP 3400mm B 32AG/BA340 | 1 | $126.46 | |||
| 18 | HOSE -06 BSP HP 980mm A 32AG/AA098 | 1 | $62.89 | |||
| 19 | HOSE -06 BSP HP 320mm B 32AG/BA032 | 1 | $45.96 | |||
| 20 | HOSE -06 BSP HP 1160mm A 32AG/AA116 | 1 | $78.45 | |||
| 21 | HOSE -04 BSP HP 1500mm A 31AG/AA150 | 1 | $78.75 | |||
| 22 | HOSE 1/2BSP 650mm 613/24900 | 1 | $125.88 | |||
| 23 | HOSE -08 BSP HP 860mm B 333/L2947 33AG/BA086 | 1 | $74.11 | |||
| 24 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 25 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 26 | WA QRC COVER 400/P9466 | 1 | $39.29 | |||
| 27 | M6x20 BUTTON HEAD (P572) 826/11069 336/C1224 | 1 | $1.08 | |||
| 28 | WA QRC REAR MOUNT 400/P9479 | 1 | $51.16 | |||
Showing 1 to 29 of 29 parts
