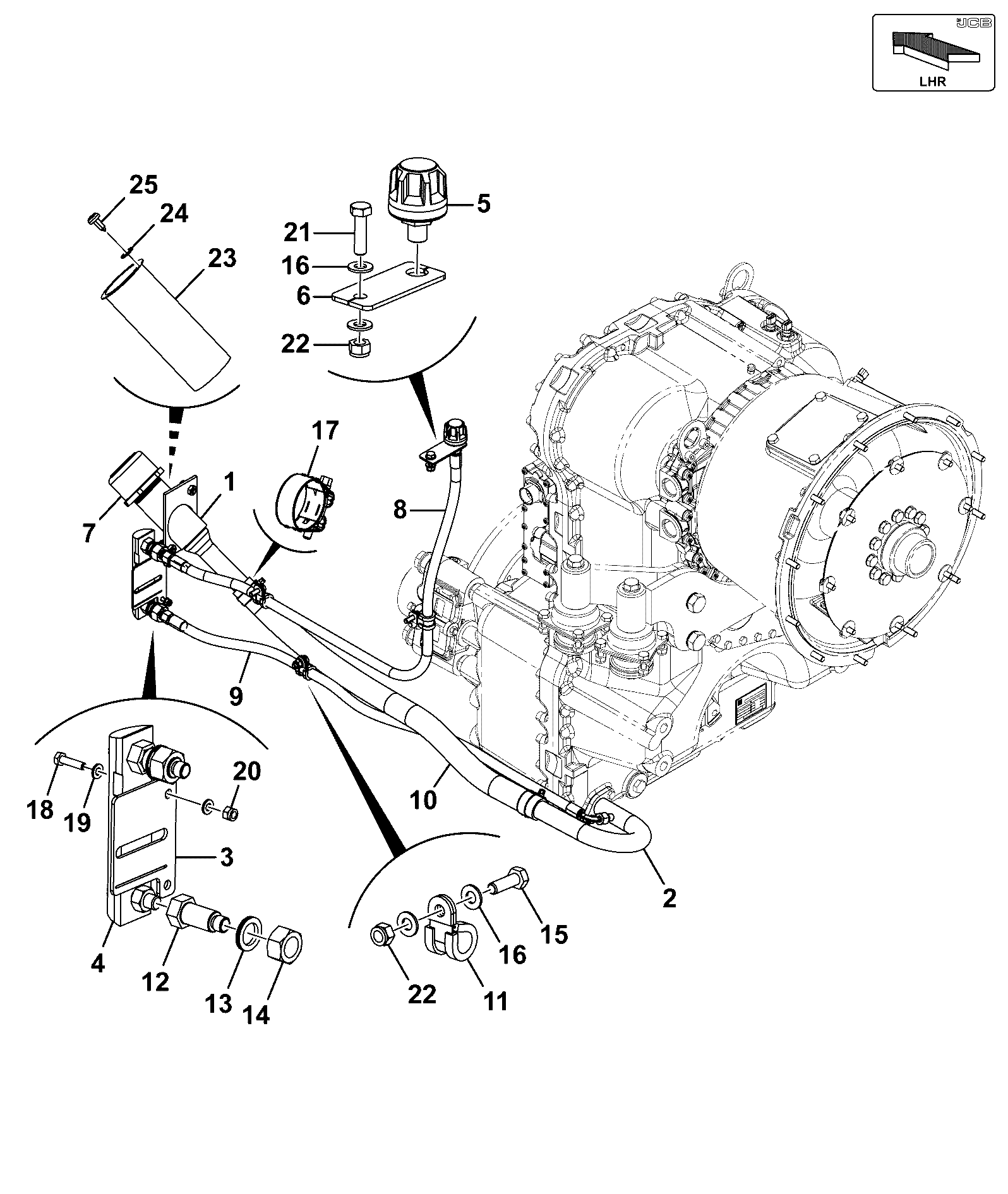

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 4 | HOSE -16 BSP LP 1520mm B 401/G9947 | 1 | $290.06 | |||
| 5 | (W) (Pre-P)-3/8 HIGH PRES HYD HOSE 612/26300 612/32000 | 1 | $71.98 | |||
| 6 | (W) (Pre-P)-HOSE 3/8BSPx1010mm HI-PRE 612/28800 | 1 | $55.17 | |||
| 7 | 3/8BSP HP HOSE 820MM 612/80325 | 1 | $96.44 | |||
| 8 | HOSE -06 BSP HP 920mm B 32AM/BA092 | 1 | $45.77 | |||
| 9 | HOSE H.P. 3/8 BSP 3560mm 612/80313 | 1 | $166.13 | |||
| 10 | HOSE -04 BSP HP 2970mm A 31AM/AA297 | 1 | $99.14 | |||
| 11 | HOSE 1/2BSP 1430mm 613/02300 | 1 | $101.23 | |||
| 12 | HOSE 3/8BSP 2550mm 32AM/AA280 332/D2883 | 1 | $88.23 | |||
| 13 | HOSE - 6 BSP 2700 mm B 334/L2206 | 1 | $80.02 | |||
| 14 | HOSE-06 BSP HP 770mm A 32AM/AA077 | 1 | $31.60 | |||
| 15 | HOSE 3/8BSP 685mm 612/80198 | 1 | $45.09 | |||
| 16 | HOSE - 6 BSP 480 mm A 333/R7473 | 1 | $36.58 | |||
| 17 | HOSE - 6 BSP 560 mm A 333/R7470 | 1 | $38.88 | |||
| 18 | HOSE-06 BSP LP 2100mm C 22AM/MN210 | 1 | $133.75 | |||
| 19 | ADAPTOR BRACKET 333/T6426 | 1 | $16.62 | |||
| 20 | T-ADAPTOR - 3/8-3/8-3/8BS 402/X3660 | 1 | $25.80 | |||
| 21 | Bracket 265/01441 | 1 | $22.00 | |||
| 22 | BACKNUT 3/8in BSP 1356/0003D | 1 | $16.96 | |||
| 23 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 24 | BOLT M_8 L-_30mm G-_8.8 1315/3308D | 1 | $1.39 | |||
| 25 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 26 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 27 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 28 | ADAPTOR M18x1.5 X 3/8BSP 333/S0274 | 1 | $13.69 | |||
| 29 | ADAPTOR M10x1 X 1/4 BSP 816/M1708 | 1 | $13.36 | |||
| 30 | CLIP 821/00376 | 1 | $3.09 | |||
| 31 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 32 | CLIP - HOSE, P TYPE 18MM 332/D2403 | 1 | $2,552.76 | |||
| 33 | PIPE CLAMP COVER 821/00488 | 1 | $20.30 | |||
| 34 | TRIPLE PIPE CLAMP (PAIRS) 821/00487 | 1 | $19.12 | |||
| 35 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 36 | BOLT M6x55 (R) 1315/3213D | 1 | $0.30 | |||
| 37 | . WAY SENSOR PIGTAIL 400/L7676 | 1 | $115.78 | |||
| 38 | STUD M8 X 35 826/10801 | 1 | $43.61 | |||
| 39 | P-CLIP 38mm 821/10202 | 1 | $34.58 | |||
| 40 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 42 | PLUG 1/2BSP 816/00190 | 1 | $12.46 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-

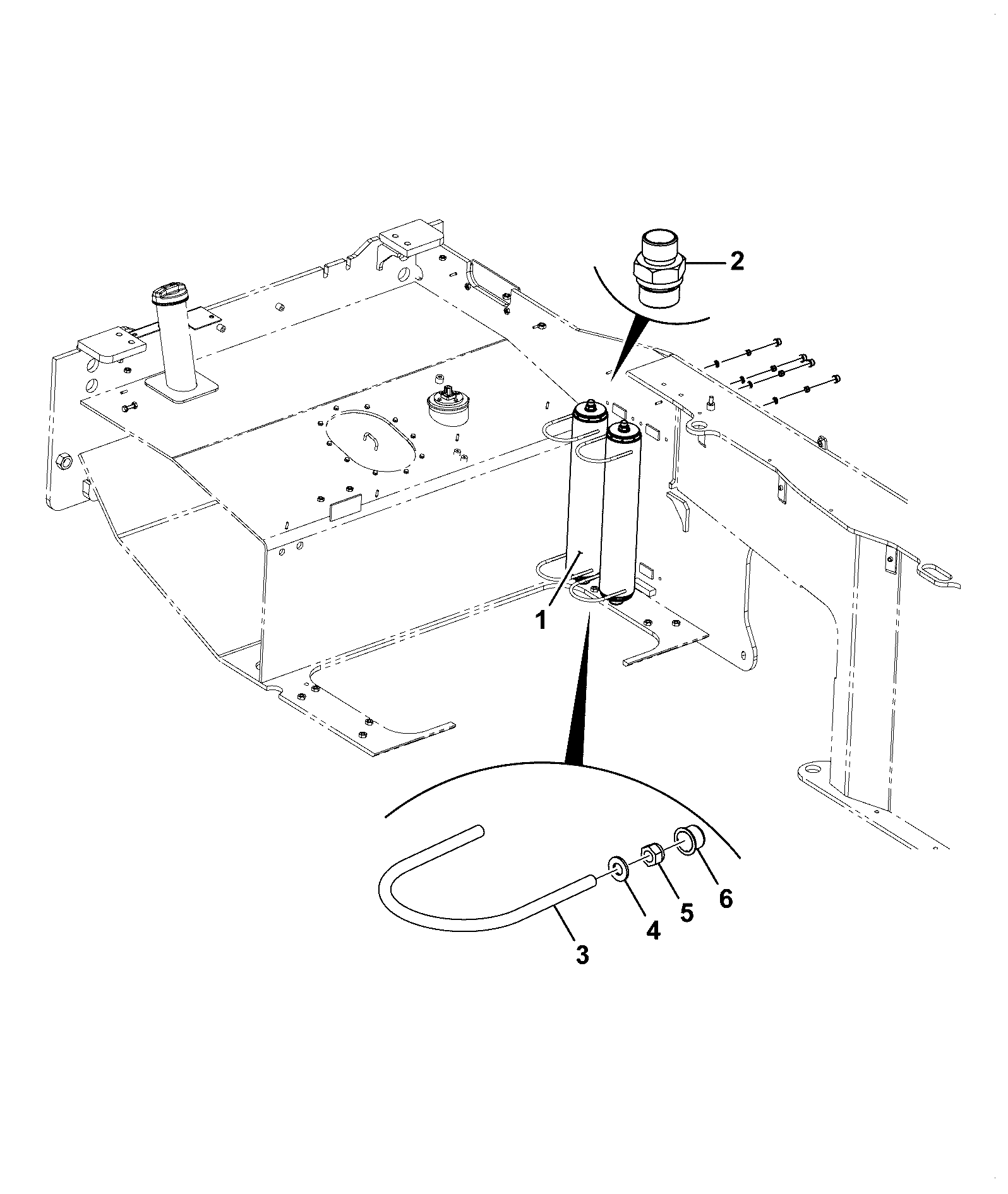

DIAG-F690-15-1-404975 F690-15-1 OTHER PS/AS/CVT PARTS TRANSMISSION FILLER ASSEMBLY
View Diagram -
DIAG-G190-1-1-404975 G190-1-1 OTHER BRAKE SYSTEM PARTS ACCUMULATOR ASSEMBLY, BRAKE 457
View Diagram -
DIAG-F690-10-1-404975 F690-10-1 OTHER PS/AS/CVT PARTS MOUNTINGS TRANSMISSION
View Diagram
