Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| O RING 2403/0107 | 1 | $2.23 | ||||
| 2 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 3 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 6 | ADAPTOR 816/66007 | 1 | $236.22 | |||
| 8 | NON RETURN VALVE 15/917300 | 1 | $56.56 | |||
| 10 | WASHER WASHER, ORI 823/10250 | 1 | $61.71 | |||
| 11 | SWITCH BRAKE PRESS 701/25900 | 1 | $298.25 | |||
| 12 | 1/4NPTF 816/83013 | 1 | $3.88 | |||
| 13 | PLUG 816/83014 | 1 | $9.46 | |||
| 14 | VALVE TRAILER CONT - ATB 15/915000 | 1 | $3,477.97 | |||
| 16 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 17 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 18 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 19 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 20 | ADAPTOR 816/66010 | 1 | $135.14 | |||
| 21 | PIPE -AIR - (5 mtr length) 647/05000 | 1 | $88.14 | |||
| 22 | ADAPTOR 816/66009 | 1 | $65.55 | |||
| 23 | RESERVOIR 15/912100 | 1 | $126.37 | |||
| 24 | VALVE-DRAIN 15/906200 | 1 | $24.43 | |||
| 25 | BAND MOUNTING 32/208000 | 1 | $61.22 | |||
| 26 | (W) SET SCREW M8x40 1315/0310Z | 1 | $1.55 | |||
| 28 | BRACKET -MOUNTING 478/00737 | 1 | $88.23 | |||
| 29 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 30 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 33 | ADAPTOR 816/60189 | 1 | $8.86 | |||
| 34 | ADAPTOR 816/67005 | 1 | $111.17 | |||
| 35 | TEST POINT 816/60183 | 1 | $95.89 | |||
| 38 | ADAPTOR 816/66006 | 1 | $78.20 | |||
| 39 | PIPE -AIR 3.0M 647/04900 647/04902 | 1 | $101.55 | |||
| 40 | TEE:3/8PIF-M16X1.5 816/67017 | 1 | $79.77 | |||
| 45 | ADAPTOR 816/65006 | 1 | $44.66 | |||
| 46 | O-RING 828/00291 | 1 | $0.38 | |||
| 47 | ADAPTOR 816/65008 | 1 | $438.80 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-G1-7-1-393522 G1-7-1 TRAILER BRAKING CIRCUIT TWIN LINE PALM COUPLING
View Diagram -

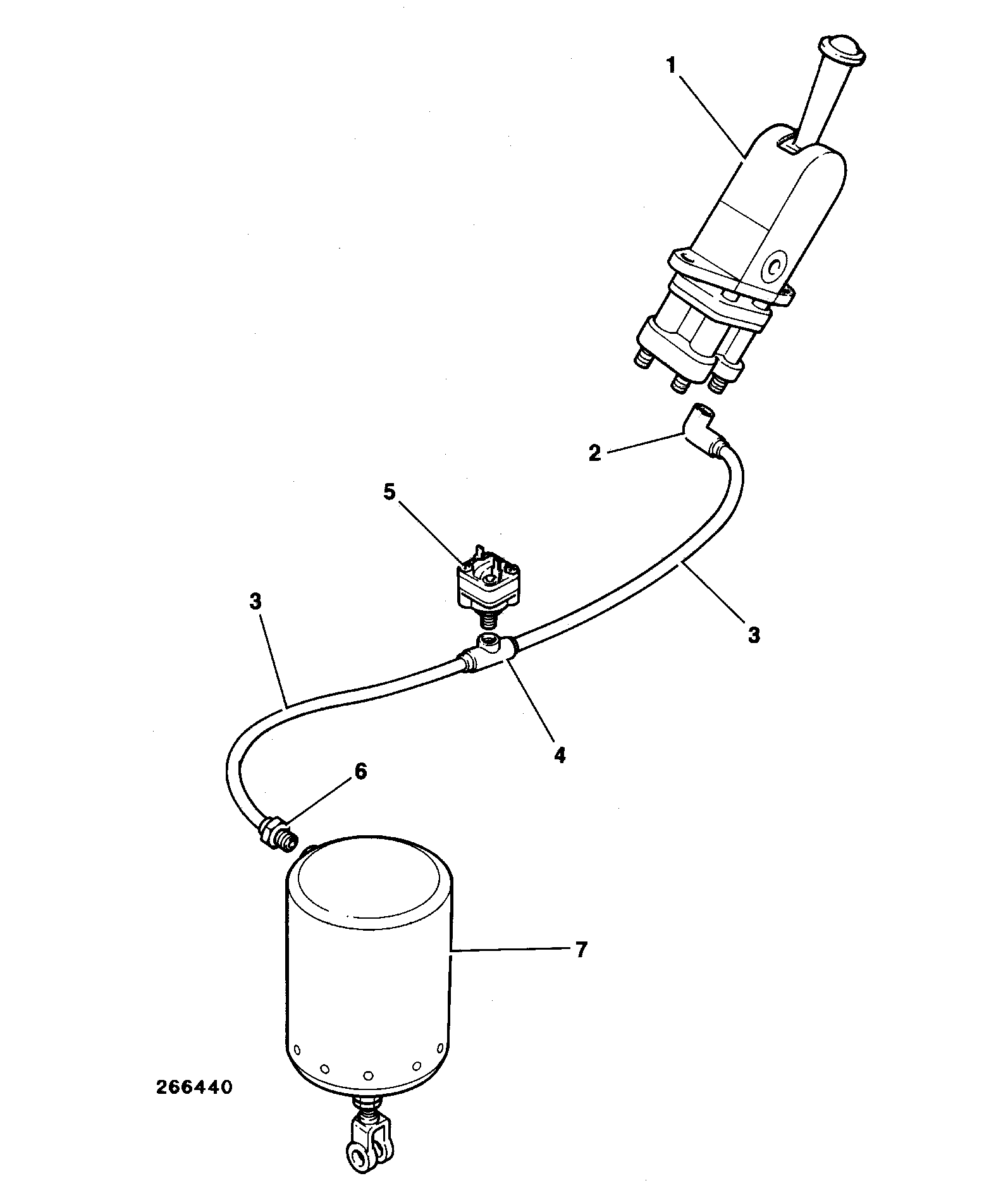

DIAG-G1-8-1-393522 G1-8-1 HANDBRAKE CIRCUIT
View Diagram -

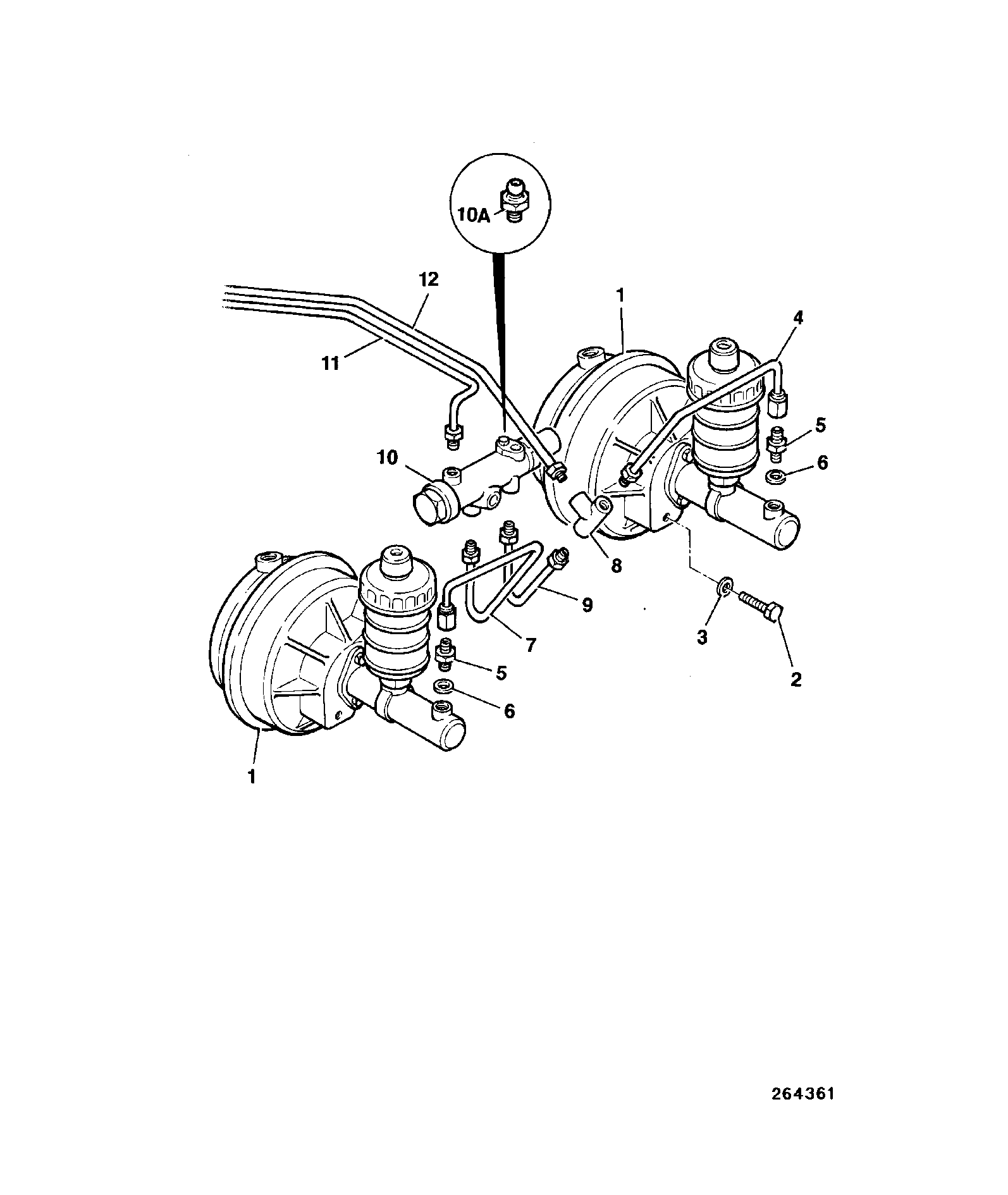

DIAG-G1-6-1-393522 G1-6-1 FOOT BRAKE ACTUATOR CIRCUIT
View Diagram
