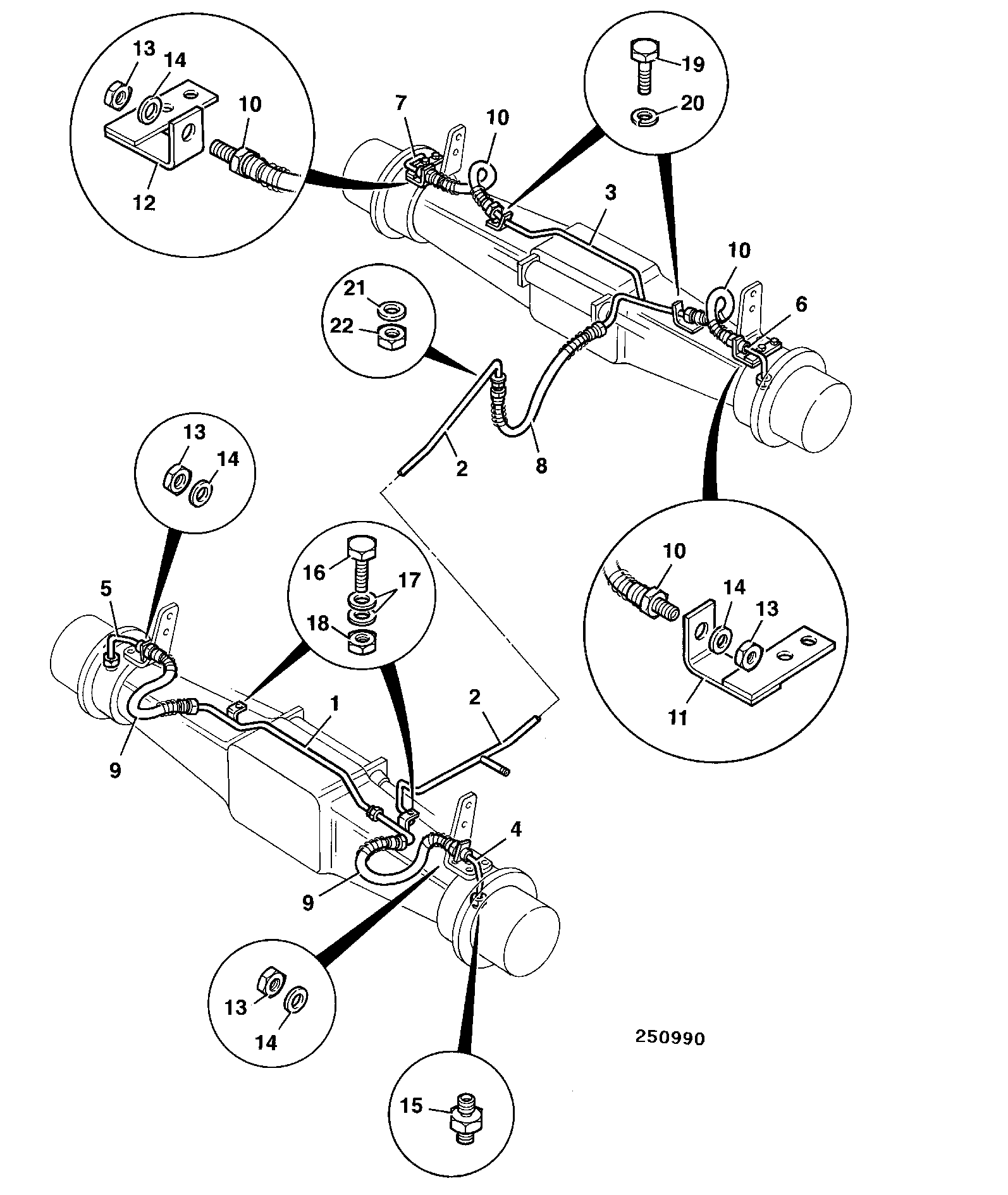

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ADAPTER 816/15164 | 1 | $16.62 | ||||
| WA LH MNTG.BRACKET 159/10200 | 1 | $51.36 | ||||
| WA RH MNTG.BRACKET 159/10100 | 1 | $149.72 | ||||
| 1 | HOSE BRAKE 649/33300 | 1 | $182.60 | |||
| 2 | HOSE FRONT BRAKE 649/33200 | 1 | $127.55 | |||
| 3 | HOSE 649/24400 | 1 | $316.07 | |||
| 4 | PIPE BRAKE FRONT L 162/02221 | 1 | $203.13 | |||
| 4 | PIPE BRAKE LH FRON 162/02084 | 1 | $347.34 | |||
| 5 | PIPE 162/01810 | 1 | $535.70 | |||
| 5 | PIPE -BRAKE RH F 162/02085 | 1 | $567.30 | |||
| 5 | PIPE BRAKE FRONT R 162/02222 | 1 | $453.53 | |||
| 6 | ADAPTOR TEE 15/105400 | 1 | $30.53 | |||
| 7 | BRACKET 162/00392 | 1 | $130.05 | |||
| 8 | WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | |||
| 9 | LOCKNUT 15/106700 | 1 | $2.00 | |||
| 11 | PIPE 162/01114 | 1 | $538.40 | |||
| 12 | PIPE 162/01056 | 1 | $508.55 | |||
| 14 | PIPE FRONT BRAKE 162/01050 | 1 | $283.97 | |||
| 15 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 16 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 17 | (W) SET SCREW M8x40 1315/0310Z | 1 | $1.55 | |||
| 18 | CLIP BRAKE PIPE 821/00379 | 1 | $6.66 | |||
| 20 | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 27 | PIPE BRAKE RH REAR 162/02073 | 1 | $159.59 | |||
| 27 | PIPE, BRAKE RH REAR - HUB 162/02259 | 1 | $135.38 | |||
| 28 | Pipe 162/02021 | 1 | $200.48 | |||
| 28 | PIPE, BRAKE LH REAR - HUB 162/02258 | 1 | $420.76 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-
DIAG-G1-7-2-400674 G1-7-2 BRAKE SYSTEM, CHASSIS,4WS 526S & 526 EXT CHASSIS
View Diagram -
H1-4-1 HOSE & PIPEWORK STEERING 4WS
View Diagram -
DIAG-F5-1-2-400674 F5-1-2 TRANSMISSION JCB SYNCRO SHUTTLE
View Diagram
