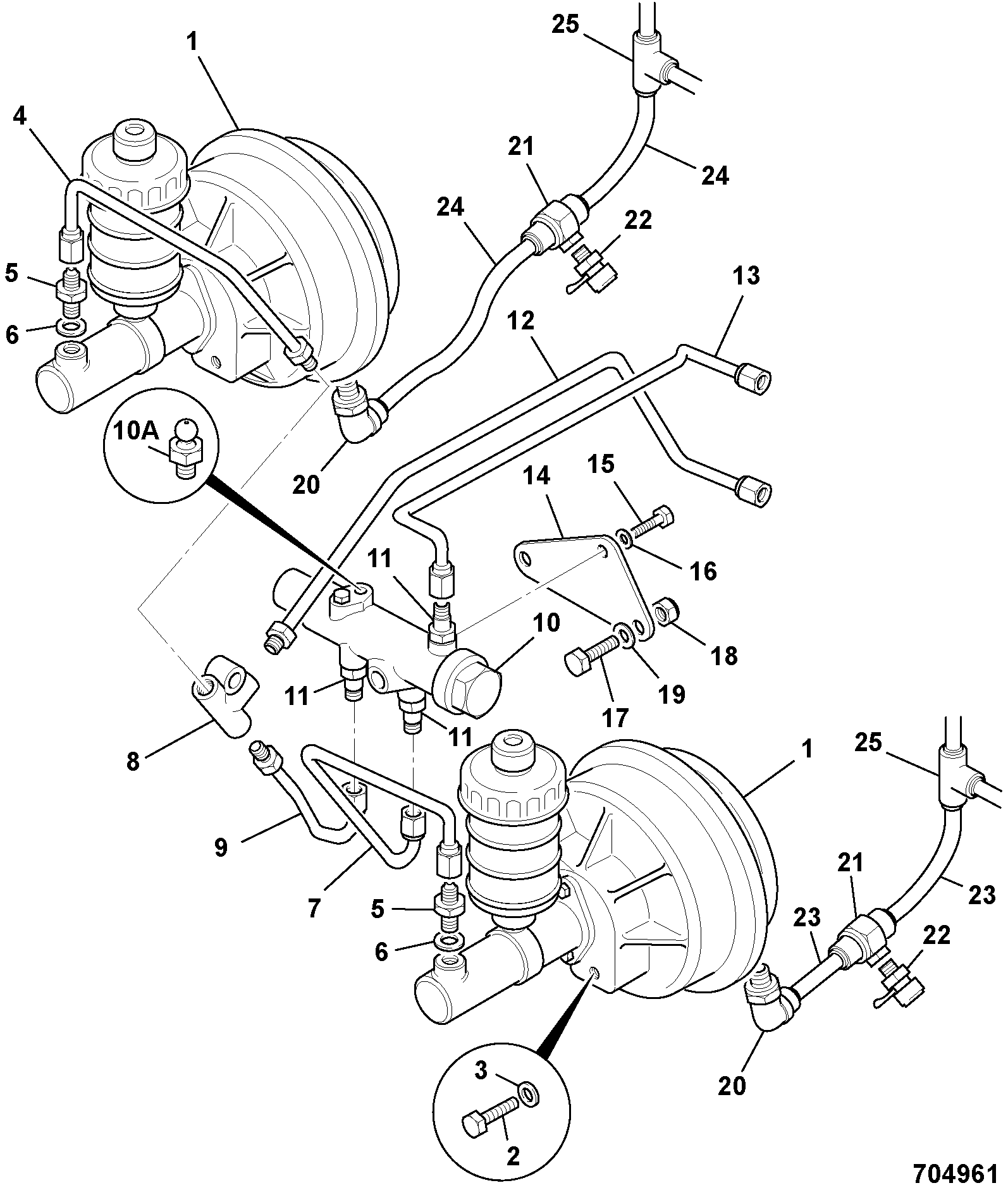

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HYDRAULIC ACTUATOR 15/920174 | 1 | $1,057.27 | |||
| 2 | SET-SCREW M12 L-_25mm(KANBAN) 1315/0507Z | 1 | $2.59 | |||
| 3 | WASHER M12 PLAIN(KANBAN) 1420/0009Z | 1 | $0.65 | |||
| 4 | ADAPTOR:M12X1-1.5 478/01476 | 1 | $33.01 | |||
| 5 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.52 | |||
| 6 | ADAPTER 90 DEG ELB 816/66012 | 1 | $563.63 | |||
| 7 | Adapter 2-way c/w 816/13284 | 1 | $158.94 | |||
| 8 | TEST POINT 816/60183 | 1 | $95.89 | |||
| 9 | ADAPTER 816/13288 | 1 | $32.94 | |||
| 10 | Adapter 90 elbow 1 816/13239 | 1 | $106.30 | |||
| 12 | ADAPTOR 816/67002 | 1 | $83.61 | |||
| 13 | VALVE ABS MODULATO 25/220742 | 1 | $1,605.08 | |||
| 14 | BOLT M8x75 1315/3317Z | 1 | $3.61 | |||
| 15 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 17 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 18 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 19 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 20 | PIPE -AIR Q 647/11000 | 1 | $100.74 | |||
| 21 | PIPE -AIR 647/10900 | 1 | $127.97 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-G1-6-3-393577 G1-6-3 FOOT BRAKE ACTUATOR CIRCUIT STANDARD
View Diagram -
DIAG-G1-5-3-393577 G1-5-3 FOOT BRAKE CIRCUIT STANDARD
View Diagram -
DIAG-G1-5-2-393577 G1-5-2 FOOT BRAKE CIRCUIT ABS
View Diagram
