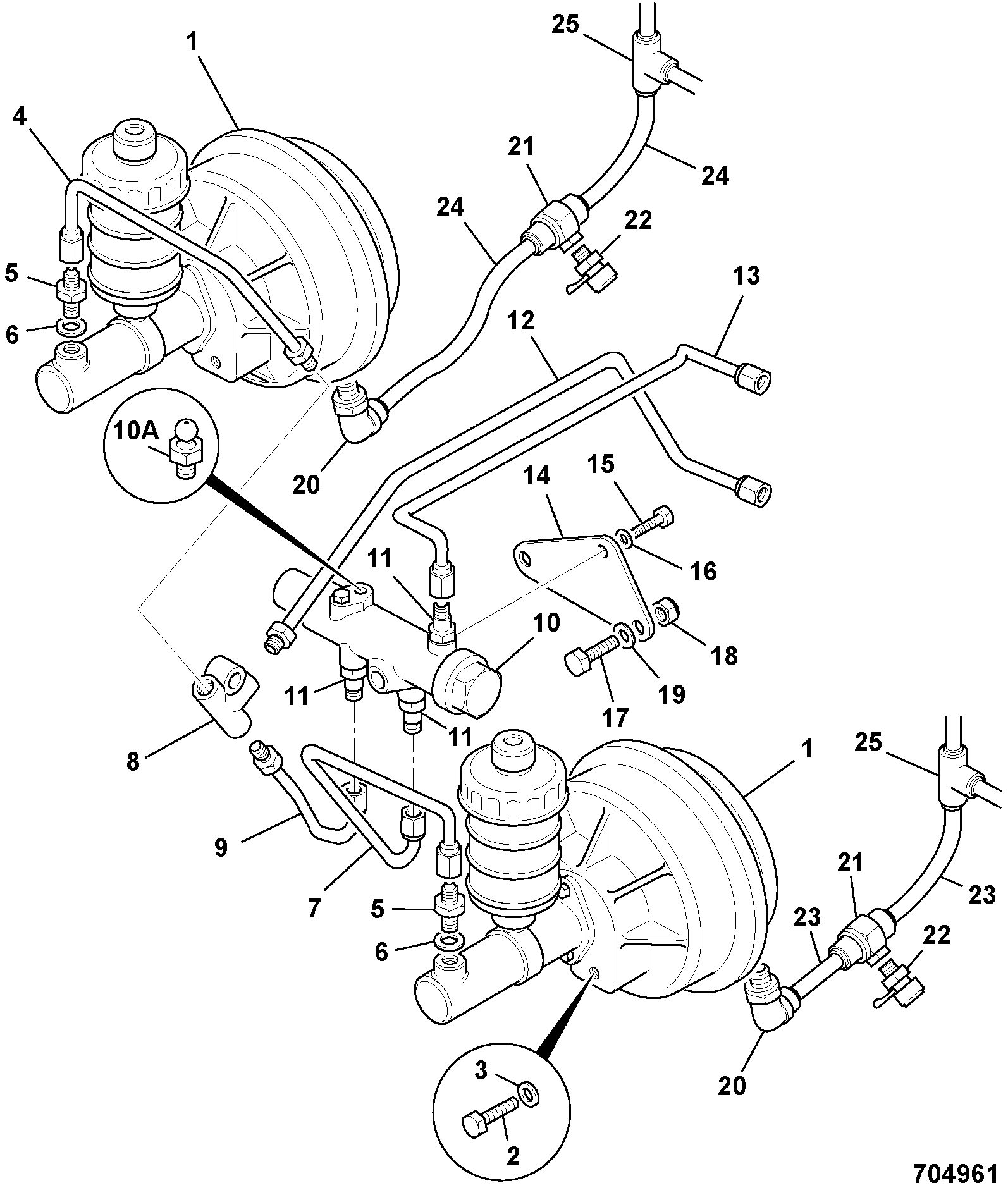

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| VALVE-DRAIN 15/906200 | 1 | $24.43 | ||||
| 1 | 'FOOT VALVE- DO NOT GIVE OUT- 1 TIME BUY 15/908600 | 1 | $1,018.03 | |||
| 2 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 4 | ADAPTOR-TEE 816/67007 | 1 | $59.65 | |||
| 5 | TEST POINT 816/60183 | 1 | $95.89 | |||
| 6 | ADAPTOR 816/66010 | 1 | $135.14 | |||
| 7 | 90 DEG ELBOW ADAPTOR 816/66030 | 1 | $55.70 | |||
| 8 | AIR SWITCH 701/73200 | 1 | $209.27 | |||
| 9 | BOOT RUBBER 701/73201 | 1 | $42.98 | |||
| 10 | Pipe air 1/2" yelo 647/10700 | 1 | $30.90 | |||
| 11 | PIPE -AIR Q 647/11000 | 1 | $100.74 | |||
| 12 | PIPE air 1/2" redQ 647/10600 | 1 | $159.69 | |||
| 13 | PIPE -AIR 647/10900 | 1 | $127.97 | |||
| 14 | ADAPTOR 816/66009 | 1 | $65.55 | |||
| 16 | ADAPTOR 816/67005 | 1 | $111.17 | |||
| 18 | (W) SET SCREW M8x40 1315/0310Z | 1 | $1.55 | |||
| 19 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 20 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 21 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 22 | MTG BAND - CLAMP POSN OPP 331/26201 | 1 | $51.03 | |||
| 23 | RIVET NUT M6(KANBAN) 826/01099 | 1 | $3.11 | |||
| 24 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 25 | Tube split, 0.5m l 647/06800 | 1 | $22.89 | |||
| 26 | TEE ADAPTOR 816/67009 | 1 | $244.75 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-G1-5-1-393579 G1-5-1 FOOT BRAKE CIRCUIT
View Diagram -
DIAG-G1-6-1-393579 G1-6-1 FOOT BRAKE ACTUATOR CIRCUIT
View Diagram -
DIAG-G1-4-11-393579 G1-4-11 AIR CHARGE CIRCUIT
View Diagram
