Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | BRAKE RESERVOIR 123/02140 126/00200 | 1 | $63.84 | |||
| 2 | CAP ASSEMBLY 265/00187 | 1 | $97.53 | |||
| 3 | GUARD SPLASH 265/00188 | 1 | $12.82 | |||
| 4 | ADAPTOR 265/00189 | 1 | $191.96 | |||
| 5 | SWITCH 701/41400 | 1 | $106.83 | |||
| 6 | CRIMP TERMINAL 7204/0001 | 1 | $0.23 | |||
| 7 | HW090 SEAL 7210/0002 | 1 | $0.20 | |||
| 8 | 2 WAY HW090 MALE HSG 7212/0002 | 1 | $8.99 | |||
| 9 | 2 WAY HW090 MALE RETAINER 7212/0004 | 1 | $5.28 | |||
| 17 | TIE MOUNT.CRADLE MNT. 826/01274 | 1 | $0.92 | |||
| 18 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 19 | HARNESS BRAKE SWIT 718/49200 | 1 | $78.49 | |||
| 20 | HARNESS LOW BRAKE 718/49300 | 1 | $67.11 | |||
| 25 | BOLT BANJO 816/75019 | 1 | $191.82 | |||
| 26 | COPPER WASHER(KANBAN) (BR3) 823/00372 | 1 | $0.40 | |||
| 27 | SWITCH PRESSURE 701/46400 701/74200 | 1 | $362.50 | |||
| 28 | WASHER BONDED 1/4 BSP 1406/0011 | 1 | $1.62 | |||
| 33 | BRAKE PIPE 265/00251 | 1 | $268.36 | |||
| 33 | PIPE 265/02656 | 1 | $268.21 | |||
| 34 | TUBE-1.675 METRES 647/02100 647/02117A | 1 | $28.06 | |||
| 35 | VACUUM HOSE 9.5MM 648/21500 | 1 | $32.82 | |||
| 36 | HOSE BRAKE 629/22400 | 1 | $90.85 | |||
| 37 | HOSE 629/22200 | 1 | $305.35 | |||
| 38 | GROMMET 2410/0114 | 1 | $16.86 | |||
| 39 | '(W) (P) CLIP - WORMDRIVE 12/22mm(KANBAN 2201/0003 | 1 | $5.72 | |||
| 41 | HOSE CLAMP 821/00280 | 1 | $10.35 | |||
| 42 | (W) (P) SET SCREW M6x40 1315/0210Z | 1 | $6.06 | |||
| 43 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | |||
| 44 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 45 | HARNESS CLIP 264/34901 | 1 | $3.01 | |||
| 46 | PIN CLEVIS 210/08005 | 1 | $18.79 | |||
| 47 | SAFETY CLIP 40/303430 913/00005 | 1 | $0.51 | |||
| 48 | 21/00487 16mm (P545) 826/00864 | 1 | $12.44 | |||
| 49 | SELF TAPPING SCREW 826/00520 | 1 | $2.47 | |||
| 51 | BULKHEAD FITTING 816/25018 | 1 | $128.53 | |||
| 52 | BACK NUT 1/4 BSP 1356/0202Z | 1 | $13.54 | |||
| 53 | WASHER 1/2 1417/0014Z 1417/0014D | 1 | $1.16 | |||
| 55 | WASHER.LOCK.3/8 (REINSTATE) 1417/0012Z | 1 | $0.30 | |||
| 56 | Banjo Bolt 816/75016 | 1 | $24.17 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-
DIAG-G1-1-4-404477 G1-1-4 VALVE, BRAKE ADAPTERS & SWITCHES
View Diagram -

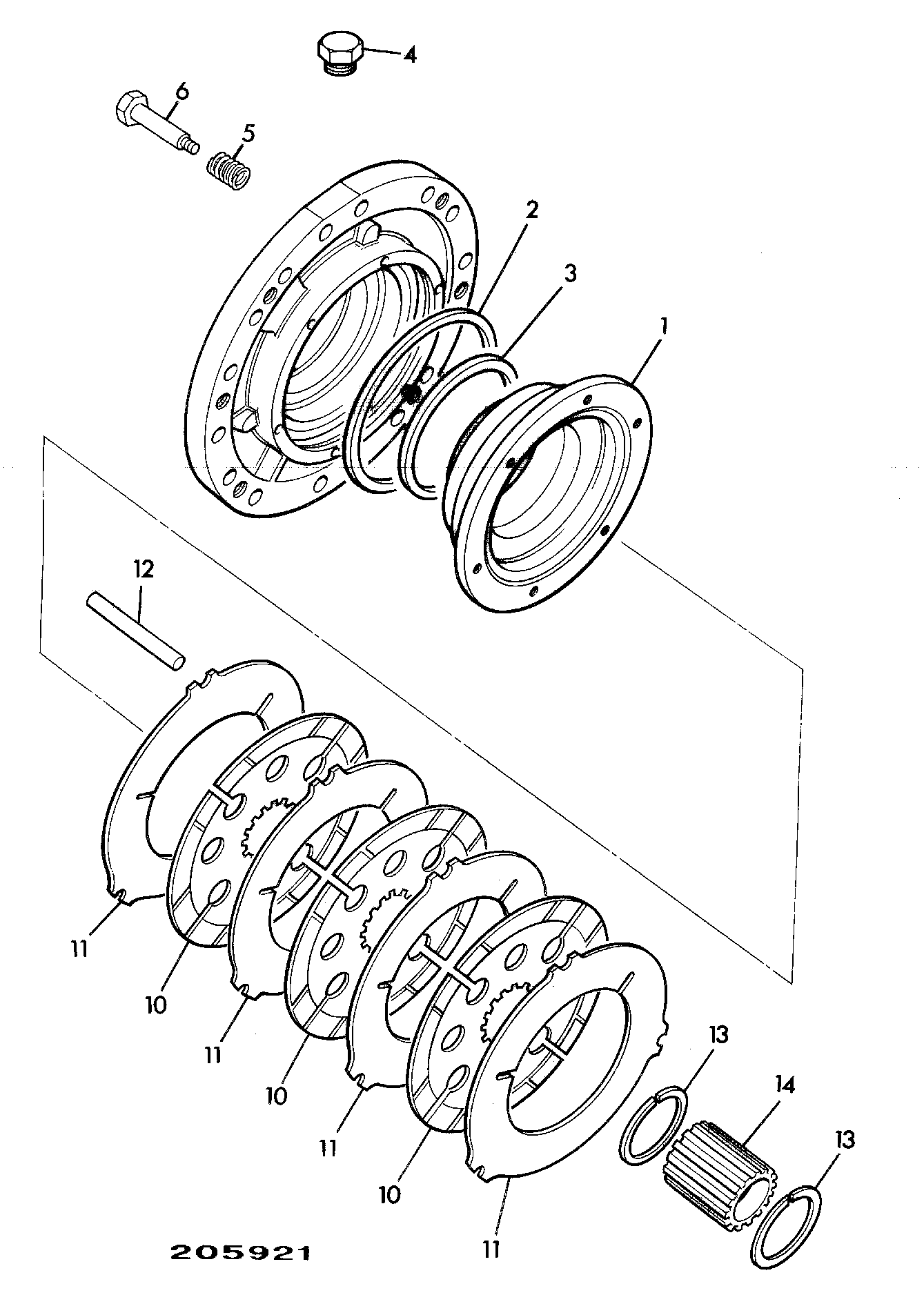

DIAG-G1-9-3-404477 G1-9-3 BRAKE COMPONENTS FRONT & REAR POSITIVE RETRACTION
View Diagram -
DIAG-F2-15-1-404477 F2-15-1 AXLE ASSEMBLY REAR PD 70 18.16:1 PIVOT MOUNTED
View Diagram
