Scroll to zoom Click a part # to view details

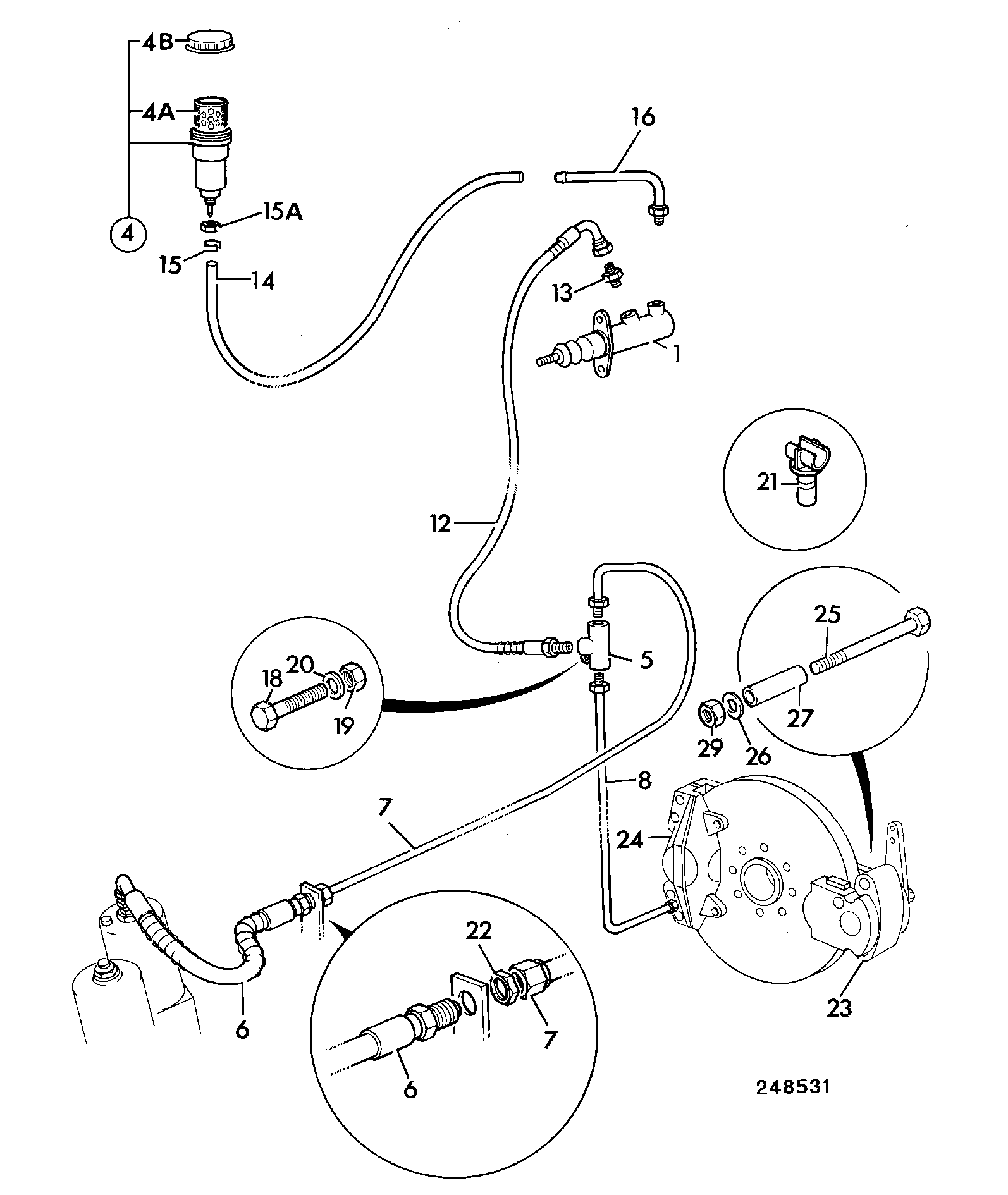

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA BRK PED BOX 335/05079 | 1 | $59.40 | |||
| 2 | BRAKE MASTER CYLINDER 15/106100 | 1 | $97.79 | |||
| 3 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 4 | CLEVIS 913/00901 913/00901A | 1 | $51.84 | |||
| 5 | CLEVIS PIN 529/38602 403/H9313 | 1 | $2.75 | |||
| 6 | SAFETY CLIP 529/38603 | 1 | $0.58 | |||
| 7 | WA - BRAKE PEDAL 335/05089 | 1 | $356.08 | |||
| 7 | WA BRAKE PEDAL 335/06935 | 1 | $240.48 | |||
| 8 | BRAKE PEDAL SHAFT (P68) 400/M3858 | 1 | $12.37 | |||
| 9 | BUSH 831/00065 831/00065A | 1 | $20.17 | |||
| 10 | SET SCREW M5x45(KANBAN) 1315/0111Z | 1 | $0.62 | |||
| 11 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 12 | (W) (P) WASHER M20 PLAIN 1420/0012Z | 1 | $1.94 | |||
| 13 | SPRING 814/10159 | 1 | $29.50 | |||
| 14 | WA BRKT SWITCH P282 & 520 335/05090 | 1 | $121.16 | |||
| 15 | M6 LOW PROFILE HEX BOLLHO (BR3) 826/10879 | 1 | $7.92 | |||
| 16 | (W) HEX HEAD SCREW M6X10 (BR3) 1315/0200Z | 1 | $0.41 | |||
| 17 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 18 | VANE SENSOR 3 WAY SUMO 332/W4424 | 1 | $38.64 | |||
| 19 | (W) (P) SELFTAP SCREW No8x1/2 1430/0202Z | 1 | $0.58 | |||
| 20 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 21 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 22 | TUBE-1.675 METRES 647/02100 647/02117A | 1 | $28.06 | |||
| 23 | BRAKE PIPE 830/11621 | 1 | $91.06 | |||
| 24 | CLIP BRAKE PIPE 821/00379 | 1 | $6.66 | |||
| 25 | ADAPTOR TEE 15/105400 | 1 | $30.53 | |||
| 26 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 27 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 28 | NUT 5/16UNF THIN PLAIN (P564) 1340/0102Z | 1 | $3.18 | |||
| 30 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.01 | |||
| 31 | HOSE CLAMP 821/00280 | 1 | $10.35 | |||
| 32 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 33 | ADAPTOR 816/15133 | 1 | $5.24 | |||
| 34 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $6.63 | |||
| 35 | 1/4 BSP SWEPT ELBOW 893/90122 | 1 | $14.34 | |||
| 40 | HOSE SET UP 649/45300 | 1 | $53.19 | |||
Showing 1 to 36 of 36 parts
Related Assemblies
-
DIAG-G1-1-1-400495 G1-1-1 BRAKE SYSTEM
View Diagram -

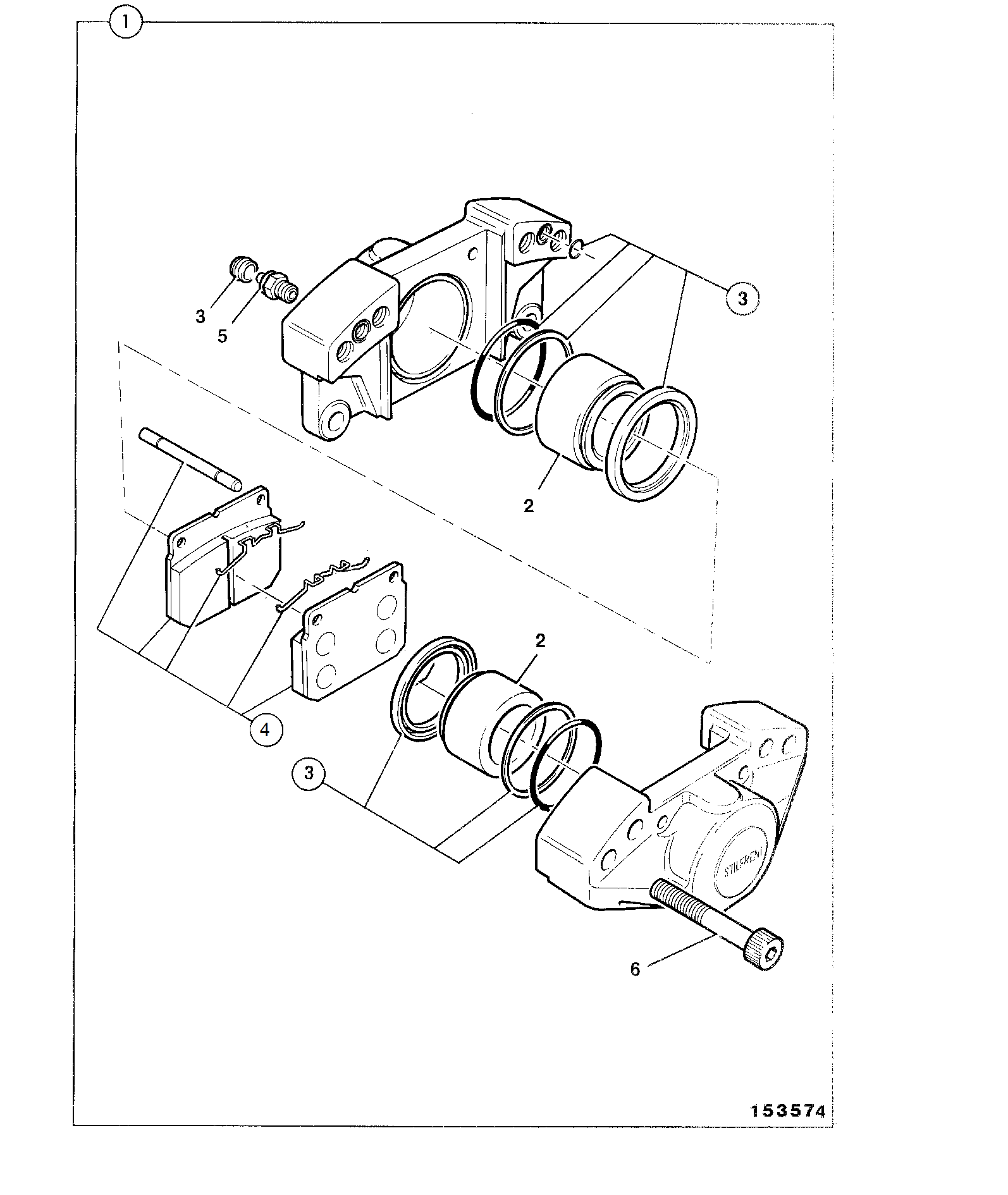

DIAG-G1-4-11-400495 G1-4-11 BRAKE CALIPER REAR
View Diagram -

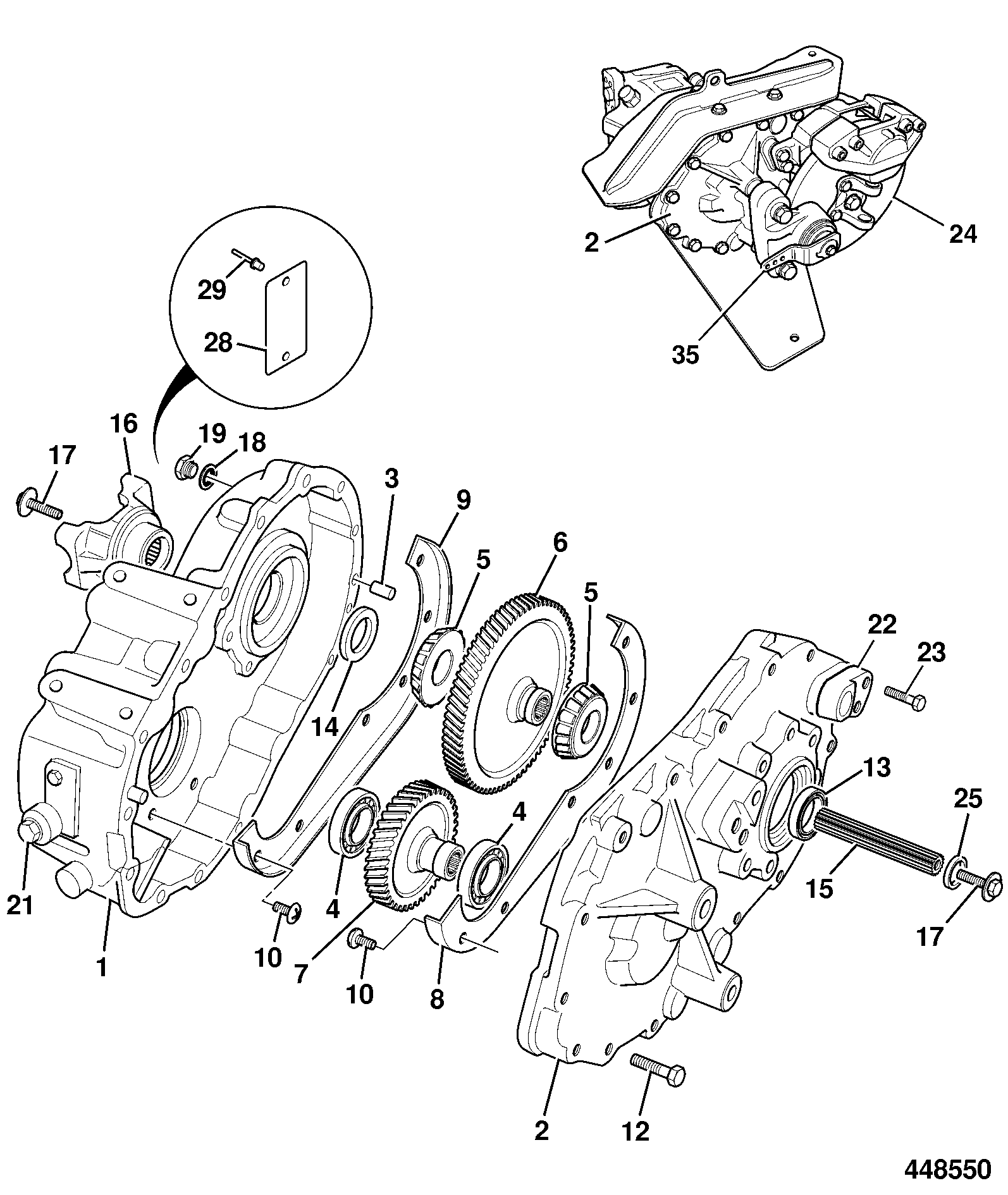

DIAG-F5-4-1-400495 F5-4-1 DROPBOX COMPONENTS
View Diagram
