Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BRAKE LIGHT SWITCH 701/44800 | 1 | $74.08 | ||||
| HOSE CLAMP 821/00280 | 1 | $10.35 | ||||
| 1 | BRAKE 15/910400 | 1 | $501.94 | |||
| 2 | BRAKE RESERVOIR G.A. 158/24200 | 1 | $21.32 | |||
| 3 | (W) (P) SET SCREW M6x40 1315/0210Z | 1 | $6.06 | |||
| 4 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 5 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $0.80 | |||
| 6 | PVC TUBE 545LG 647/02124 | 1 | $13.02 | |||
| 8 | Pedal Brake W.A. 161/00981 | 1 | $1,784.55 | |||
| 9 | BRAKE PEDAL SHAFT (P68) 400/M3858 | 1 | $12.37 | |||
| 10 | BOLT M5x45 1315/3111Z | 1 | $2.15 | |||
| 11 | CLEVIS FORK END-11mm SLOT (Insource) 913/00036 | 1 | $96.63 | |||
| 12 | (P) (W) (P) BRAKE HOSE 649/41100 | 1 | $169.45 | |||
| 13 | CLEVIS PIN 913/00012 | 1 | $21.95 | |||
| 14 | (W) (P) BOLT M10x35 1315/3409Z | 1 | $0.71 | |||
| 15 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 17 | TENSION SPRING 814/00388 | 1 | $60.99 | |||
| 18 | GROMMET 2410/0308 | 1 | $23.38 | |||
| 19 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 20 | BUSH 831/00065 831/00065A | 1 | $20.17 | |||
| 21 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.01 | |||
| 22 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

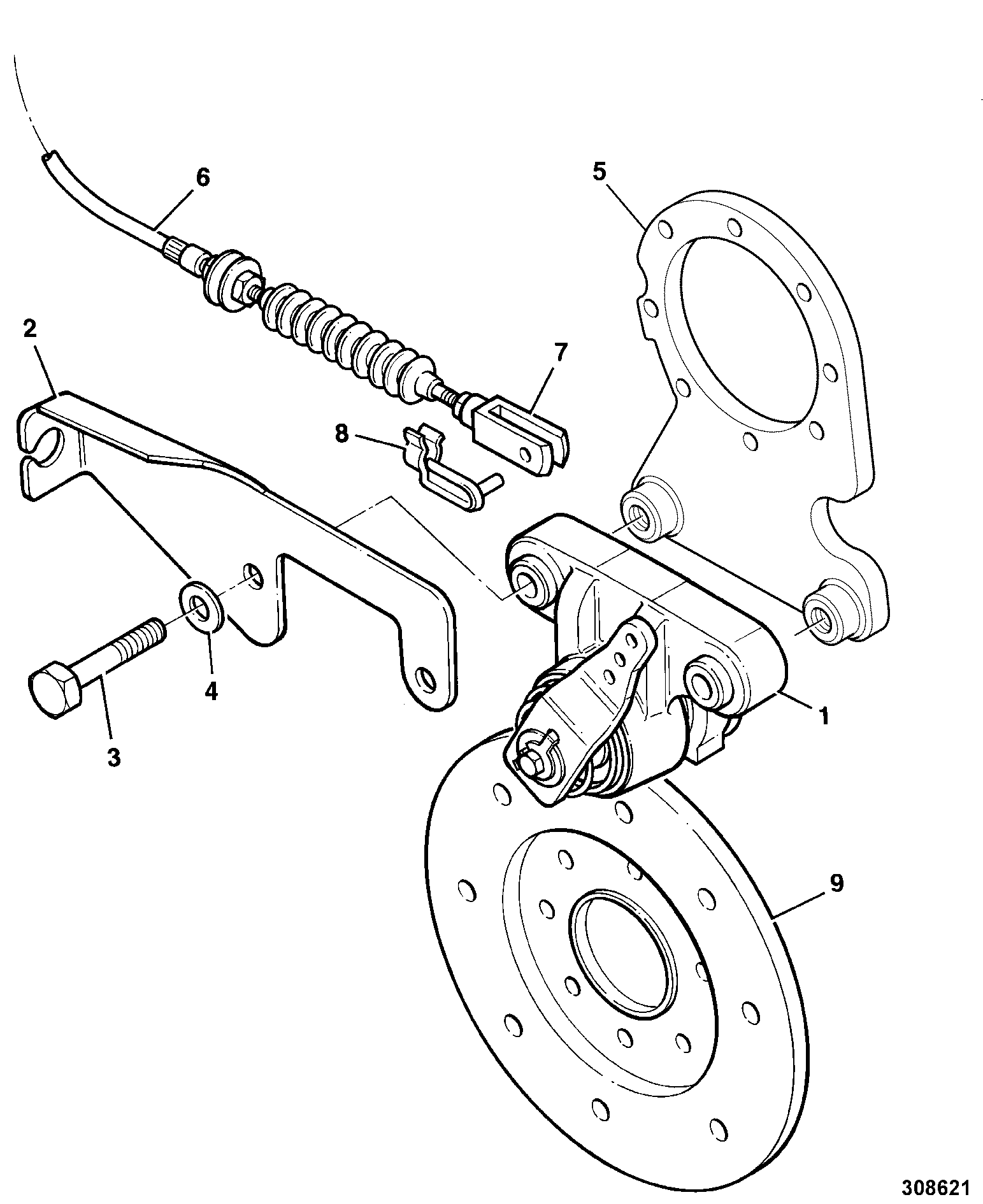

DIAG-G1-2-1-400856-13019927 G1-2-1 BRAKE, PARKING
View Diagram -

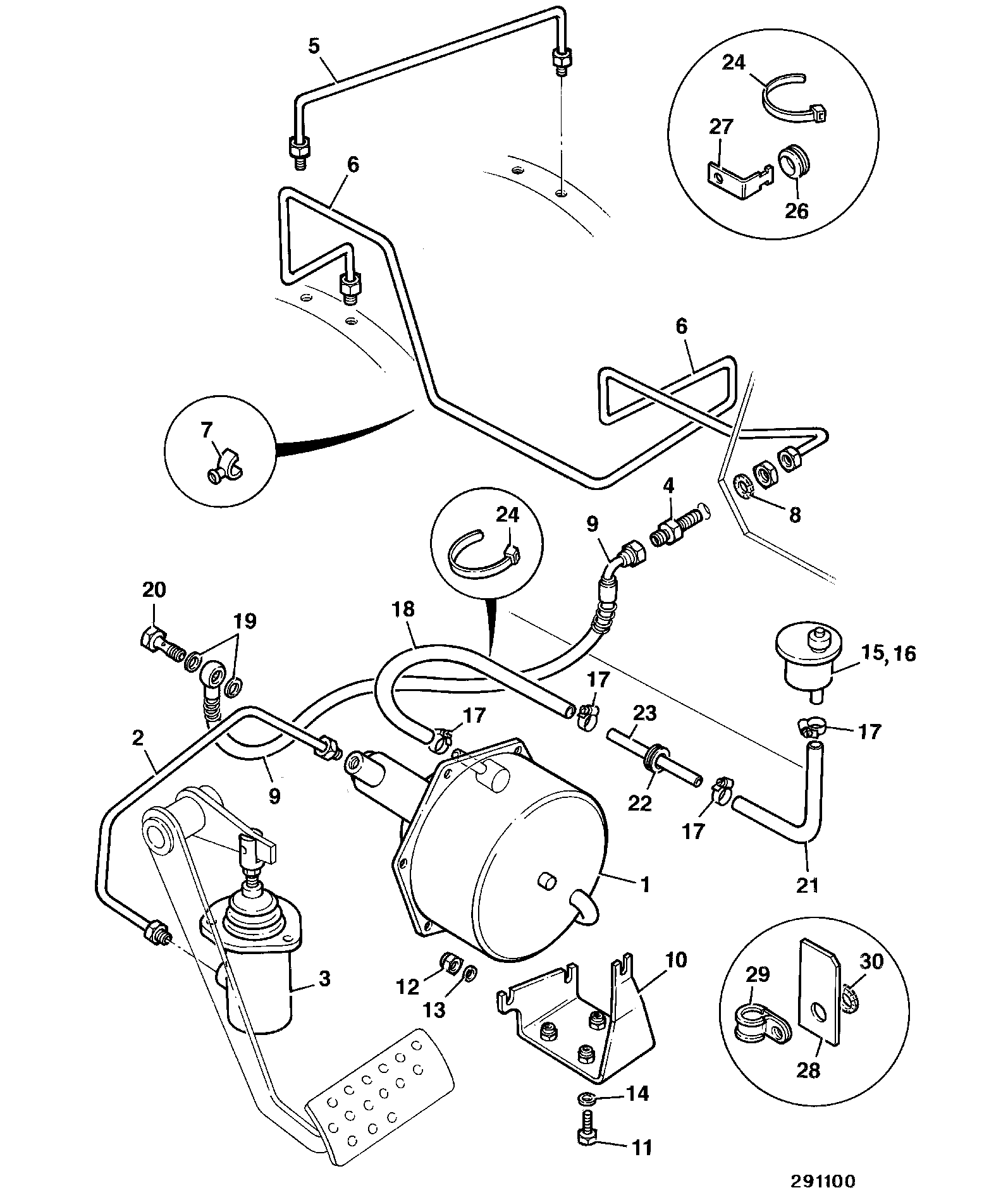

DIAG-G1-1-1-400856 G1-1-1 BRAKING SYSTEM
View Diagram -

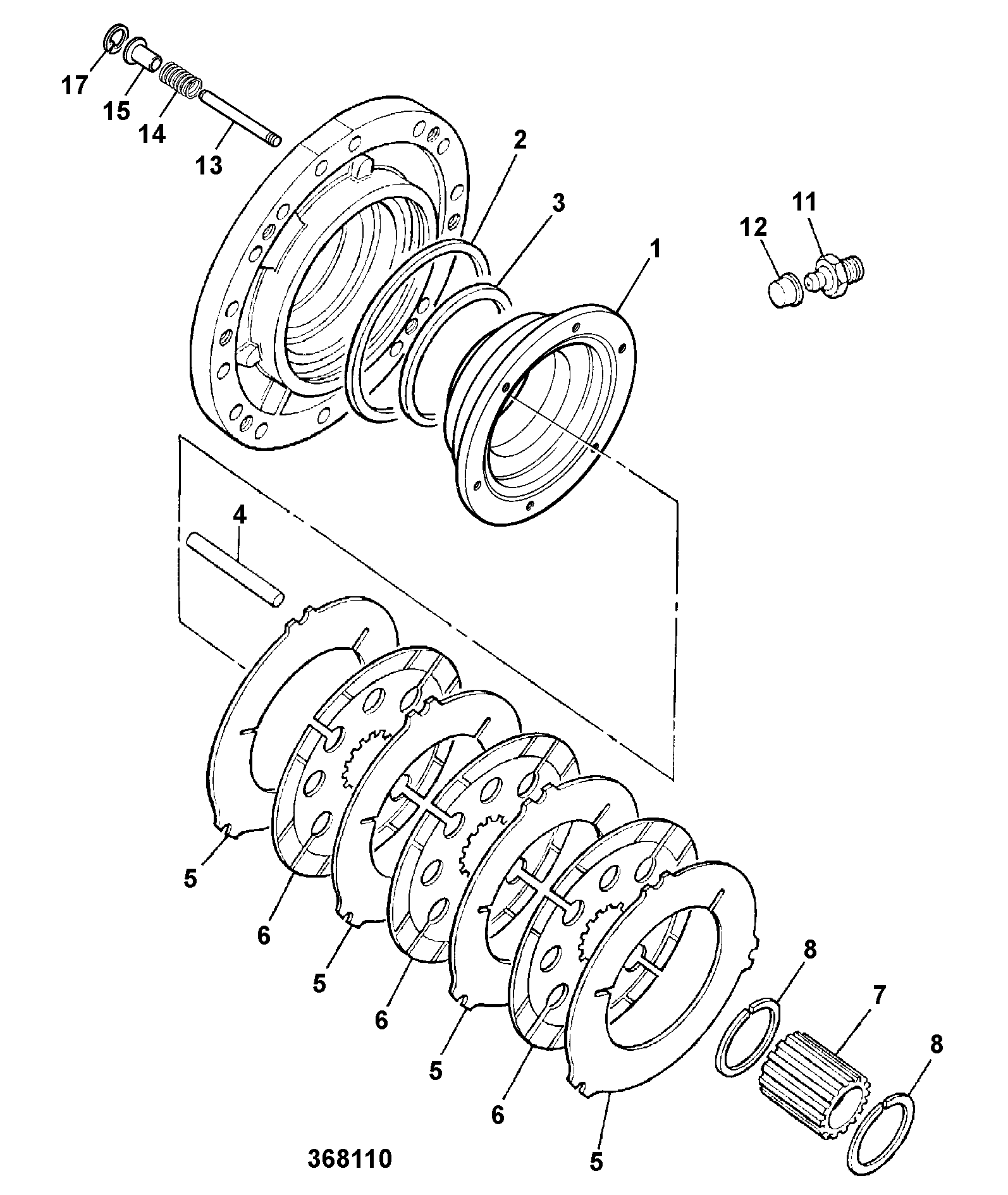

DIAG-G1-6-1-400856-13019938 G1-6-1 BRAKES, AXLE (AXLE ARM)
View Diagram
