Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| (W) (P) WASHER 1/2 MEDIUM PLAIN 1411/0005Z | 1 | $2.97 | ||||
| BRAKE LIGHT SWITCH 701/44800 | 1 | $72.06 | ||||
| GROMMET 2410/1103 | 1 | $4.57 | ||||
| 1 | (W) (P) REMOTE BRAKE SERVO 15/920255 | 1 | $2,268.37 | |||
| 1 | BRAKE SERVO 15/916300 | 1 | $1,306.54 | |||
| 2 | (P) (W) (P) SERVO FEED PIPE (SEK) 162/03338 | 1 | $81.94 | |||
| 3 | BRAKE 15/910400 | 1 | $501.94 | |||
| 3 | MASTER CYLINDER SINGLE (Reinstate) 15/910100 | 1 | $292.50 | |||
| 4 | M12 EXTENDED BULKHEAD 816/15192 | 1 | $78.29 | |||
| 5 | BRAKE PIPE 265/00251 | 1 | $268.36 | |||
| 6 | PIPE BRAKE 162/03891 | 1 | $417.16 | |||
| 6 | PIPE BRAKE SWAY 162/03156 | 1 | $194.40 | |||
| 7 | CLIP BRAKE PIPE 821/00379 | 1 | $6.66 | |||
| 8 | WASHER 1/2 INT LOCK 1418/0014Z | 1 | $0.95 | |||
| 9 | BRAKE HOSE M12X1 90/BANJO 649/46000 | 1 | $197.37 | |||
| 10 | SERVO BRACKET WA 161/00907 332/E8897 | 1 | $63.71 | |||
| 11 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 12 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 13 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 14 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 15 | EXHAUSTER LH-PTO (VISTA) 15/920200 | 1 | $963.88 | |||
| 17 | '(W) (P) CLIP - WORMDRIVE 12/22mm(KANBAN 2201/0003 | 1 | $5.72 | |||
| 18 | VACCUM HOSE 1500MM 648/21504 | 1 | $104.72 | |||
| 19 | COPPER WASHER(KANBAN) (BR3) 823/00372 | 1 | $4.00 | |||
| 20 | Banjo Bolt 816/75016 | 1 | $24.17 | |||
| 21 | VACUUM HOSE 100MM 648/21516 | 1 | $14.58 | |||
| 22 | GROMMET 2410/0105 | 1 | $4.77 | |||
| 24 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 26 | GROMMET 2410/0207 | 1 | $5.00 | |||
| 27 | CLIP HARNESS 123/02569 | 1 | $1.05 | |||
| 28 | PLATE ATTACHMENT W 161/00936 | 1 | $12.20 | |||
| 29 | P CLIP 821/00498 | 1 | $30.03 | |||
| 30 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $5.10 | |||
Showing 1 to 33 of 33 parts
Related Assemblies
-
DIAG-G1-1-1-400732-12934919 G1-1-1 BRAKE SYSTEM INSTALLATION
View Diagram -

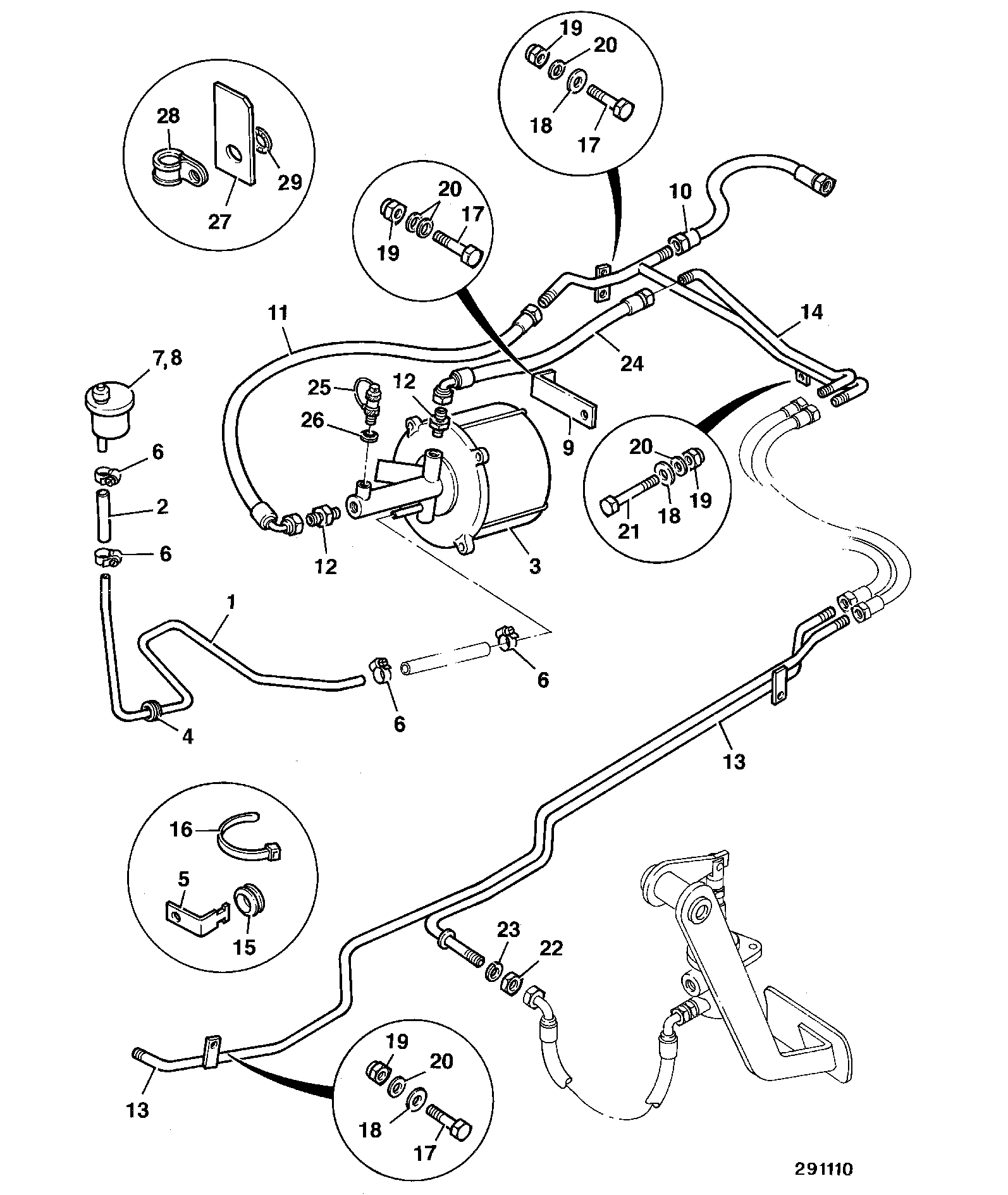

DIAG-G1-1-2-400732-12934921 G1-1-2 SERVO & VACUUM PUMP INSTALLATION
View Diagram -

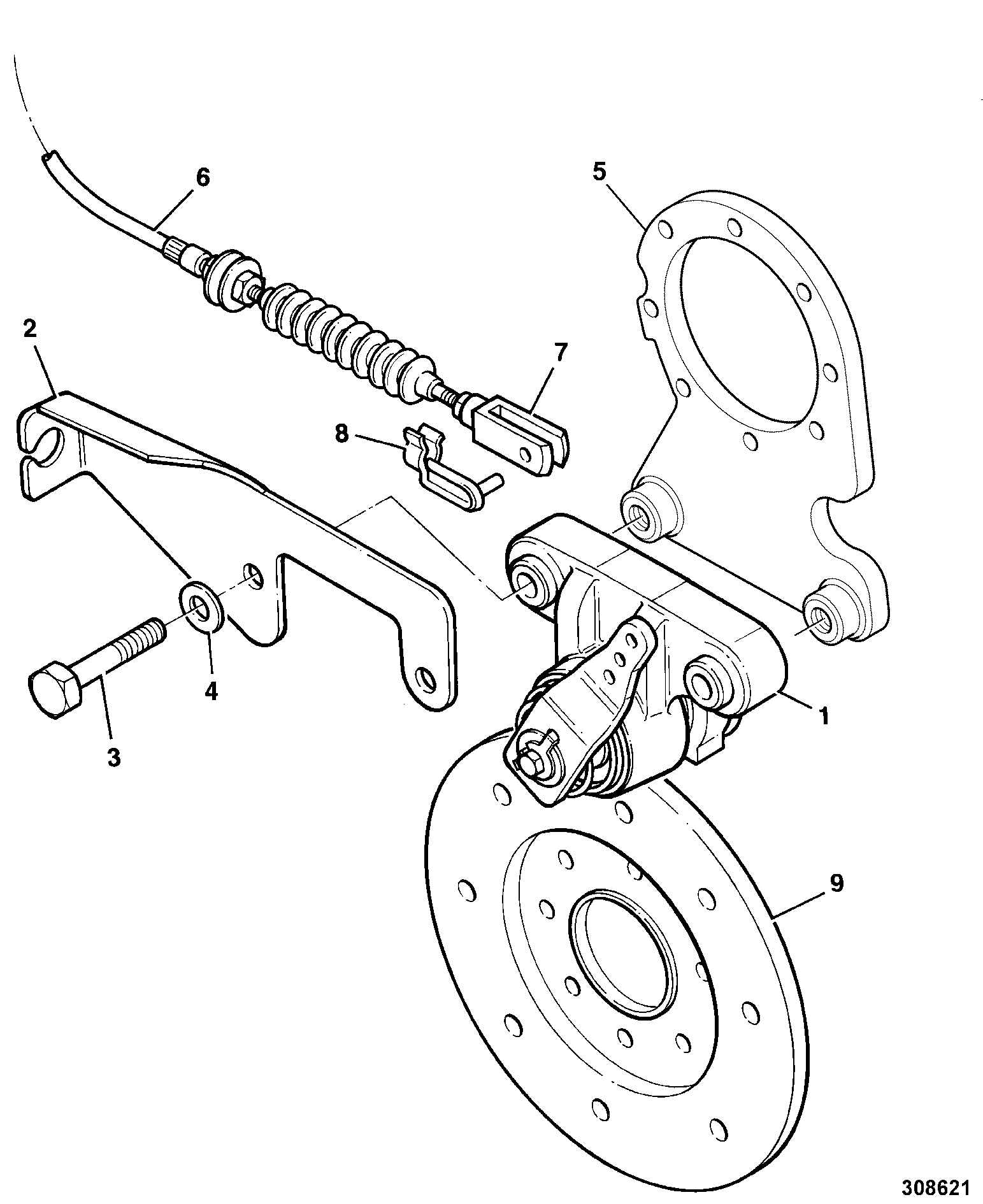

DIAG-G1-2-1-400732 G1-2-1 BRAKE PARKING INSTALLATION
View Diagram
