Kubota G1700 G05500 RADIATOR Parts Diagram
Exploded-view parts diagram "G05500 RADIATOR" for the Kubota G1700. 30 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY RADIATOR 16861-72060 Discontinued | 1 | $492.21 | |||
| 020 | SHROUD, FAN 16861-72330 | 1 | $184.50 | |||
| 030 | Radiator Cap 16861-72020 | 1 | $72.45 | |||
| 040 | COCK, DRAIN 16851-73112 16851-73110 | 1 | $7.97 | |||
| 050 | PIPE, WATER OVER 16851-72712 | 1 | $19.40 | |||
| 060 | CLAMP HOSE 16851-72470 | 1 | $5.26 | |||
| 070 | PACKING 16851-96690 | 1 | $5.87 | |||
| 080 | ASSY TANK, RESER 16851-72400 | 1 | $103.57 | |||
| 090 | CAP 16851-72420 | 1 | $23.12 | |||
| 100 | PIPE, OVER-FLOW 16851-72440 | 1 | $12.80 | |||
| 110 | BOLT 01205-50614 | 1 | $1.54 | |||
| 120 | CUSHION, UPPER 16851-72180 | 1 | $21.88 | |||
| 130 | CUSHION 15111-72180 | 1 | $12.33 | |||
| 140 | Washer 15111-72202 15111-72200 | 1 | $3.94 | |||
| 150 | BOLT 67111-58710 | 1 | $5.89 | |||
| 150 | BOLT, RADIATOR 66021-52430 Discontinued | 1 | $4.57 | |||
| 155 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | |||
| 160 | PIN,SNAP 05515-61000 05515-71000 | 1 | $1.48 | |||
| 170 | Lower Radiator Hose 16861-72850 | 1 | $12.80 | |||
| 180 | PIPE, WATER 4 16871-72940 | 1 | $22.28 | |||
| 180 | Upper Radiator Hose 16861-72940 | 1 | $20.45 | |||
| 190 | BAND, PIPE 15841-72960 | 1 | $7.77 | |||
| 190 | CLAMP, HOSE 67980-58640 | 1 | $4.85 | |||
| 200 | CLAMP, HOSE 09318-89036 | 1 | $4.85 | |||
| 210 | NET, DUSTPROOF 66101-58413 | 1 | $181.93 | |||
| 220 | SUPPORT, RADIATO 66101-51160 Discontinued | 1 | $31.94 | |||
| 230 | COVER 66101-53230 | 1 | $43.92 | |||
| 240 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 250 | TRIM 66101-53240 66101-53242 | 1 | $14.30 | |||
| 260 | Nut Fastener 02053-50050 02054-50050 | 1 | $0.31 | |||
Showing 1 to 30 of 30 parts
Related Assemblies
-

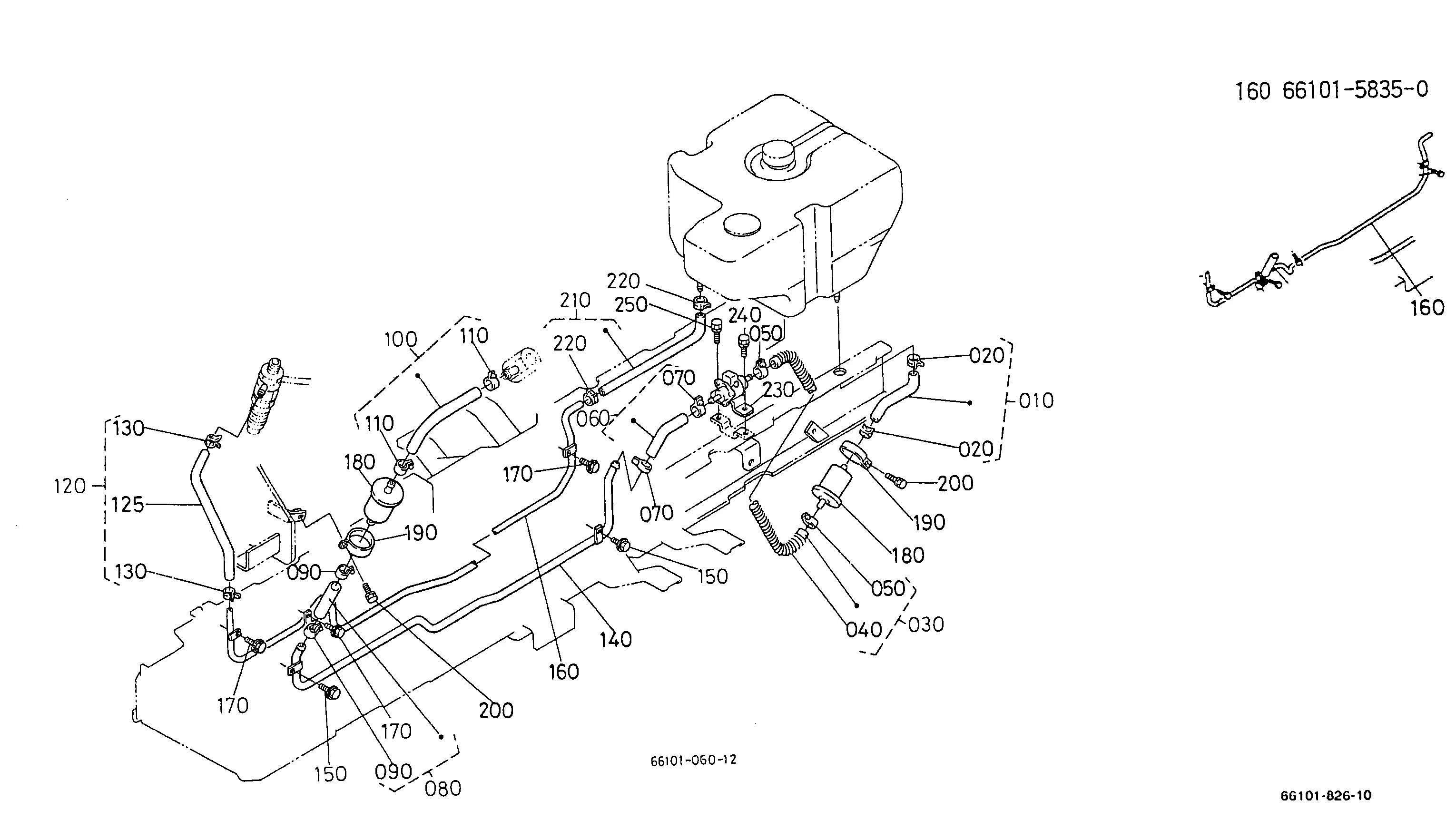

DIAG-G05300-84892 G05300 FUEL PIPE
View Diagram -
DIAG-G05600-84892 G05600 FAN
View Diagram -

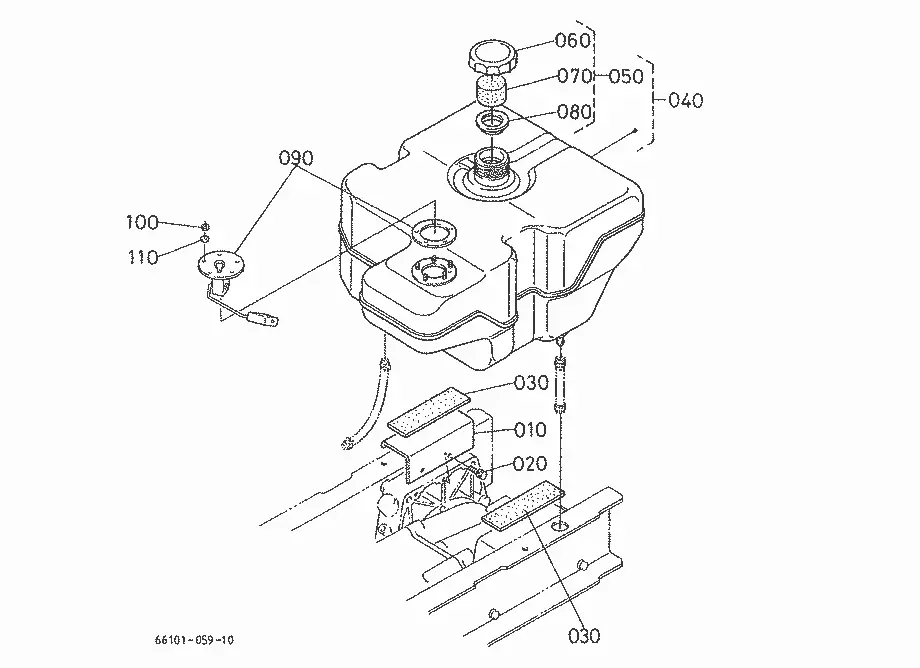

DIAG-G05200-84892 G05200 FUEL TANK
