Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SEAT,KIT(V-3500) K1122-56110 K1241-93010 | 1 | $548.40 | |||
| 020 | BOLT, FLANGE (5/ 0Y171-50508 | 1 | $1.99 | |||
| 030 | SPRING, SEAT SW K1122-56142 K1122-56140 | 1 | $1.85 | |||
| 040 | Metric Hex Lock Nut K5112-72840 K5112-72842 | 1 | $0.36 | |||
| 050 | WASHER, FLAT 5/1 75599-32112 Discontinued | 1 | $0.37 | |||
| 060 | SUPPORT, SEAT K1211-56120 | 1 | $220.50 | |||
| 070 | SPRING,LOCK K1211-56150 K1211-56152 | 1 | $2.42 | |||
| 080 | COVER, LEVER K1211-56140 | 1 | $1.23 | |||
| 090 | NUT NYLON LOCK P 77700-04169 75599-31923 | 1 | $0.59 | |||
| 100 | WASHER, FLAT 3/8 75599-32113 | 1 | $0.39 | |||
| 110 | Seat K2561-98810 Discontinued | 1 | $778.87 | |||
| 130 | PLATE, SEAT KIT K2561-98820 | 1 | $36.86 | |||
| 140 | Hex Bolt 5/16" x 1" 70002-00418 75599-01220 | 1 | $0.80 | |||
| 150 | Plain (Flat) Washer 60009-60701 75599-32012 | 1 | $0.14 | |||
| 160 | EX INSTRUCTION, K2561-98830 Discontinued | 1 | $10.47 | |||
| 170 | EX KIT SEAT ADAP K2561-98910 | 1 | $66.80 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

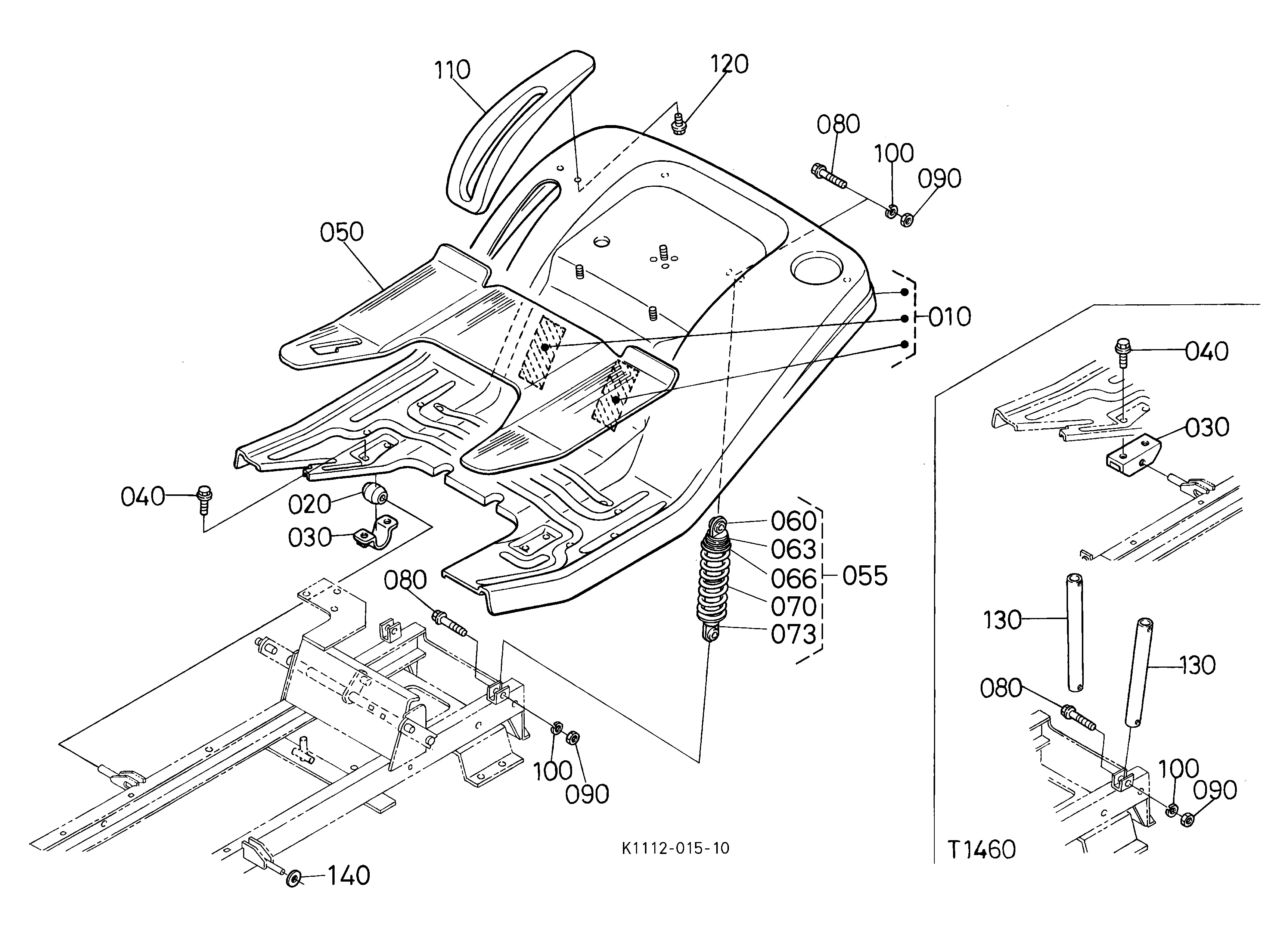

DIAG-G03000-86278 G03000 FENDER
View Diagram -

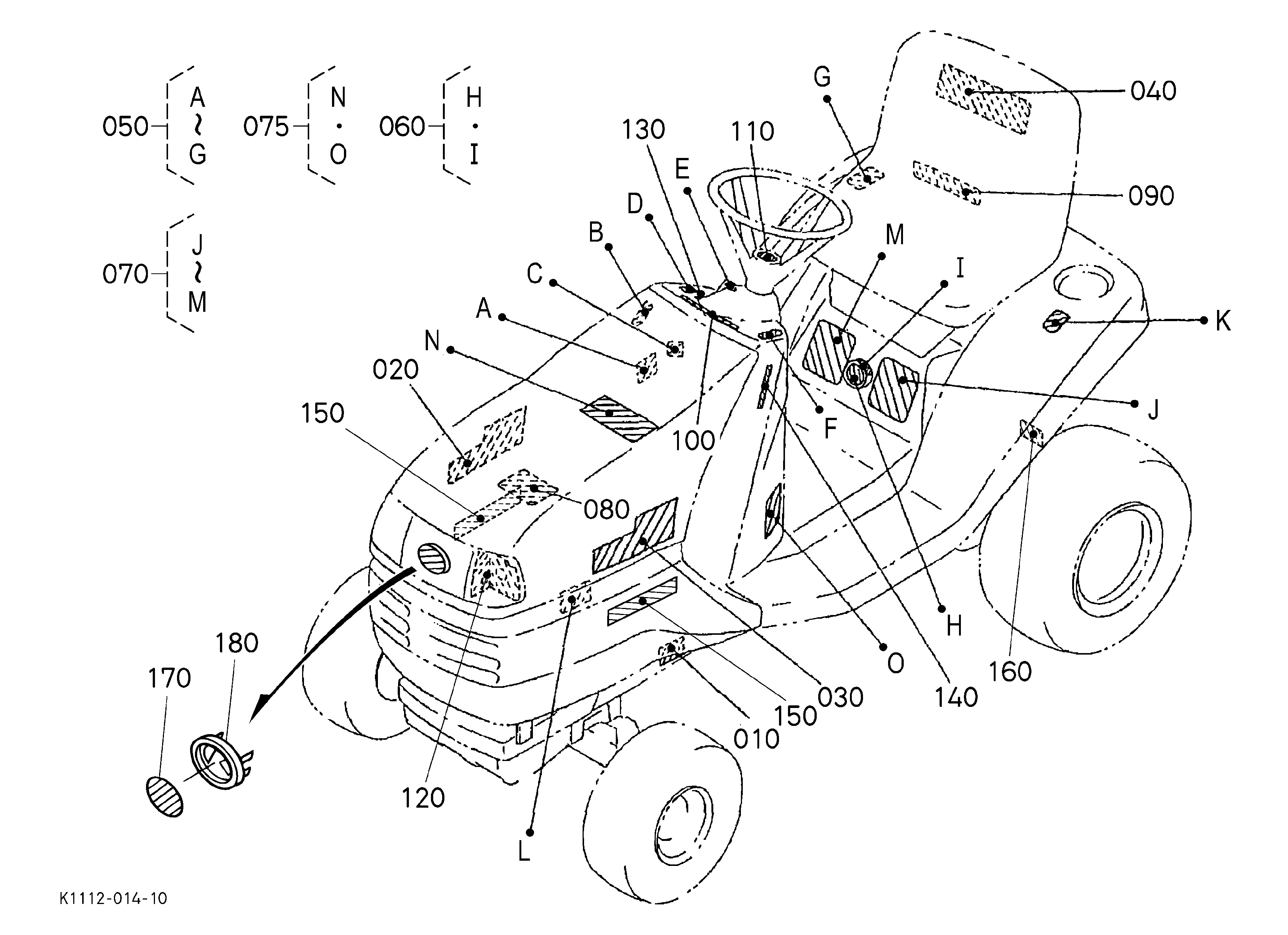

DIAG-G10000-86278 G10000 LABEL
View Diagram -

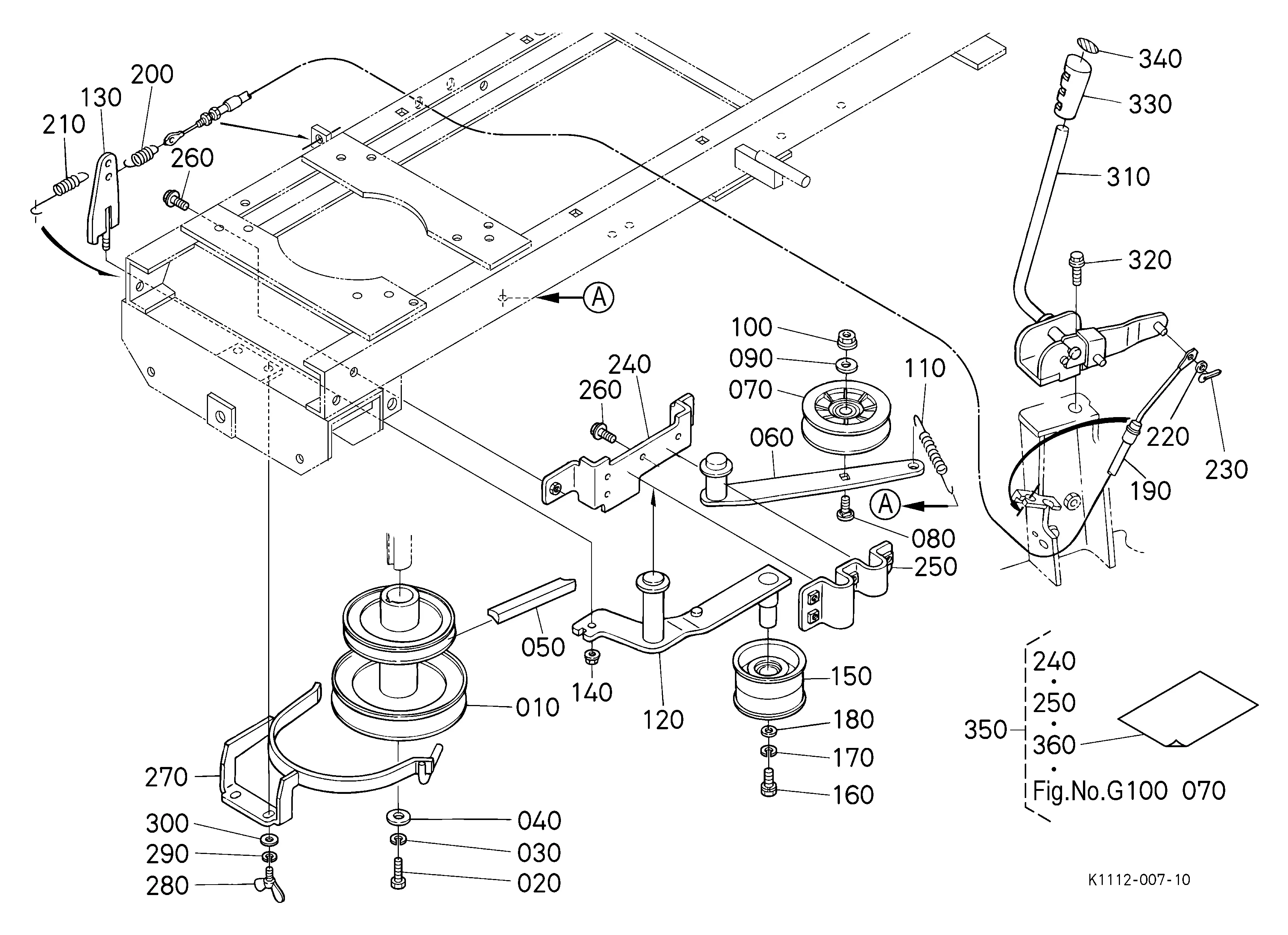

DIAG-D73000-86278 D73000 PTO CLUTCH CONTROL LEVER/WIRE
View Diagram
